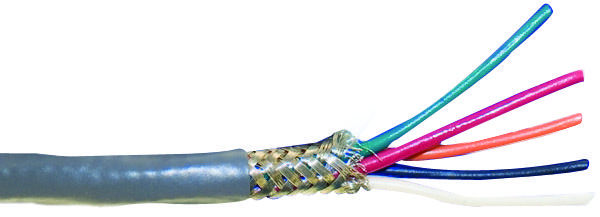

ALPHA WIRE 3337SL005 cable assembly
This high-quality cable assembly features 8 copper conductors with a 22 AWG TC conductor and durable PVC insulation. It includes a 90% coverage TC braid shield and a PVC jacket with a 0.025-inch wall thickness, designed for reliable electrical performance. Certified for military use under MIL-W-16878/Type B/N 106°C / 600 V, this cable is compliant with EU and China RoHS standards, making it suitable for various industrial and electronic applications. The cable's temperature range spans -55°C to +105°C, with excellent flexibility and mechanical strength for demanding environments.
ALPHA WIRE 3337SL005 cable assembly Specifications:
- Construction: 8 copper conductors with 22 AWG TC, PVC insulation, PVC jacket 0.025" wall
- Shield: 90% coverage TC braid
- Dimensional details: 1000 FT spool, 16 x 11 x 8 inches; 100 FT segments, 12 x 4.5 x 3.5 inches
- Electrical properties: Voltage rating 600 V, Capacitance 44 pF/ft, Ground capacitance 79 pF/ft, Inductance 0.19 uH/ft
- Mechanical properties: Temperature range -55°C to +105°C, Bend radius 10X cable diameter, Max pull tension 56 Lbs
- Compliance: CE, RoHS2, REACH, California Prop 65, MIL-W-16878/Type B
- Environmental: No SVHC substances exceeding 0.1%, RoHS compliant, suitable for industrial electrical systems
Buy the Alpha Wire Series 711 Cable Assembly: 3337SL005
Order the Alpha Wire 3337SL005 cable assembly online today and enjoy high-quality construction designed for durability and reliable electrical performance. With 8 conductors, PVC insulation, and a braid shield, this cable meets strict military and environmental standards. Its flexibility, temperature range from -55°C to +105°C, and compliance with RoHS and MIL specifications make it ideal for industrial and electronic applications. Purchase now for efficient installation and long-lasting service in demanding conditions.
Buy Alpha Wire 3337SL005 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3337SL005?
You can click on the BUY or RFQ button to purchase 3337SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3337SL005?
You can download the 3337SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3337SL005?
ALPHA WIRE
