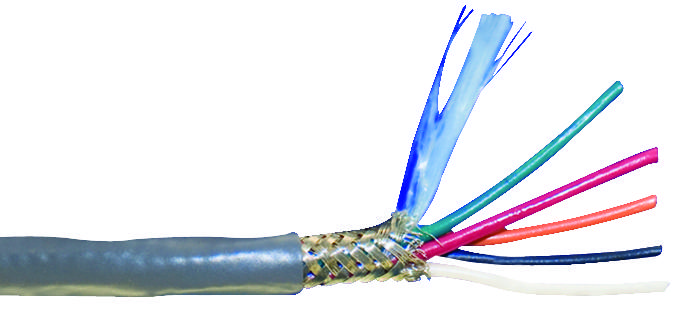

ALPHA WIRE 3446SL002 Shielded Cable Assembly
This cable assembly features 6 twisted components with a cabled configuration, insulated with PVC and a clear Mylar core wrap, providing durable shielding with 90% braid coverage. Designed under military specifications MIL-W-16878/Type C, it operates reliably in temperatures from -55°C to 105°C, with a voltage rating of 1000V. Its construction includes multiple conductors with 16 (19/29) AWG TC conductors, and it is RoHS compliant, REACH certified, and meets European and California environmental standards. Suitable for complex wiring and shielding applications requiring flexibility, high performance, and compliance with safety regulations, making it ideal for industrial, aerospace, and military use.
ALPHA WIRE 3446SL002 Shielded Cable Assembly Specifications:
- Component Conductor: 16 (19/29) AWG TC
- Insulation: 0.018" wall PVC
- Jacket: 0.034" PVC, color slate
- Shield: 90% braid coverage TC shield
- Overall Diameter: 0.376" (max 0.390")
- Conductor Resistance: 4.7 ohms/1000 ft @20°C
- Voltage Rating: 1000V
- Temperature Range: -55°C to 105°C
- Bend Radius: 10X cable diameter
- Pull Tension: 127 lbs maximum
- Capacitance: 53 pF/ft @1 kHz
- Ground Capacitance: 95 pF/ft @1 kHz
- Inductance: 0.17 μH/ft
- Length Options: 1000 ft, 500 ft, 100 ft
- Mechanical: Cabled with 3 twists/foot, Core wrap with Mylar tape
- Certifications: RoHS, CE, UL (per specifications)
Buy the Alpha Wire 3446 – Reliable Shielded Cable for Industrial Applications
Purchase the Alpha Wire 3446 shielded cable assembly online today to enjoy high-quality, RoHS-compliant wiring with durable PVC insulation and 90% braid shielding. Perfect for industrial, aerospace, and military applications, this cable guarantees reliable performance across a temperature range from -55°C to 105°C. Its cabled construction with multiple twisted conductors, clear Mylar core wrap, and 1000V voltage rating make it suitable for complex wiring and shielding needs. Secure your project’s wiring integrity by ordering now from our online store, ensuring prompt delivery and technical support.
Order your Alpha Wire 3446 cable assembly today and ensure robust, shielded wiring solutions that meet strict industrial and military standards.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3446SL002?
You can click on the BUY or RFQ button to purchase 3446SL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3446SL002?
You can download the 3446SL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3446SL002?
ALPHA WIRE
