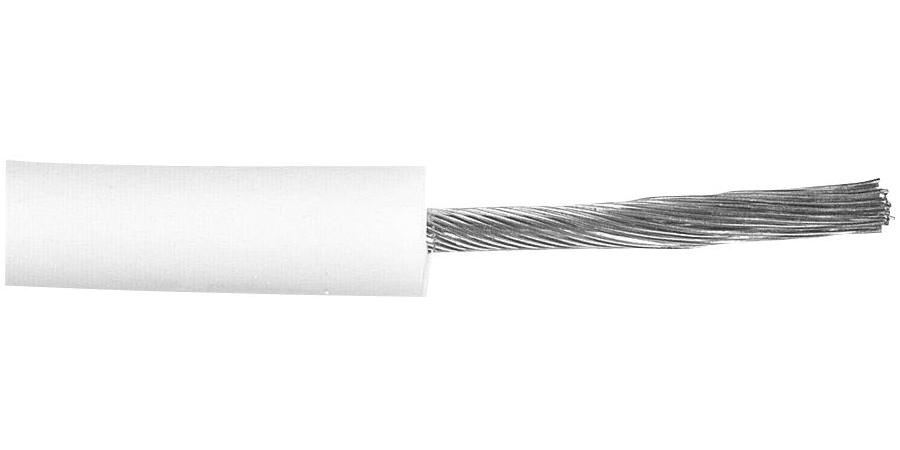

ALPHA WIRE 392240WH001 Hookup Wire
This high-quality hookup wire features 22 AWG stranded copper conductors with silicone rubber insulation, rated for -40 to 150°C, and a voltage capacity of 10,000V. It complies with UL JAWMISTYLE 3239 standards and RoHS regulations, ensuring safety and environmental compliance. The cable is available in white, black, and red, with various length options, making it ideal for electrical, control, and instrumentation applications requiring flexibility, durability, and high voltage performance in challenging environments. Suitable for professional wiring and electronic projects demanding reliable, flame-retardant insulation.
ALPHA WIRE 392240WH001 Hookup Wire Specifications:
- Conductor: 22 AWG stranded copper
- Insulation: Silicone rubber, 0.040 inch wall
- Temperature Range: -40°C to +150°C
- Voltage Rating: 10,000V (10KVDC)
- Inductance: 0.09 pH/ft, Nominal
- Conductor Resistance: 16.2 ohms per 1000 ft at 20°C
- Bend Radius: 10 times cable diameter
- Maximum Pull Tension: 5.5 lbs
- Available lengths: 100 ft, 500 ft, 1000 ft
- Compliance: UL JAWMISTYLE 3239, RoHS 2 & 3, REACH
- Fire Resistance: Flame-retardant silicone rubber insulation
- Color options: White, Black, Red
- Applicable standards ensure safety and environmental compliance
- Suitable for electrical wiring, control panels, instrumentation
- Spool dimensions may vary based on length
Buy the AlphaWire Series 392240 hookup wire: 22 AWG High Voltage Cable
Purchase the AlphaWire Series 392240 hookup wire online today for dependable high-voltage connection solutions. This 22 AWG silicone rubber cable is designed for applications requiring flexibility, durability, and safety. Suitable for electrical, control panel, and instrumentation wiring, it offers a temperature range from -40°C to 150°C, with a voltage capacity of 10,000V. Available in multiple lengths and colors, it complies with UL, RoHS, and REACH standards, ensuring your projects meet safety and environmental regulations. Get quality wiring today with fast worldwide shipping.
Order your AlphaWire Series 392240 hookup wire today and ensure reliable, high-performance wiring for your electrical and control projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 392240WH001?
You can click on the BUY or RFQ button to purchase 392240WH001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 392240WH001?
You can download the 392240WH001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 392240WH001?
ALPHA WIRE
