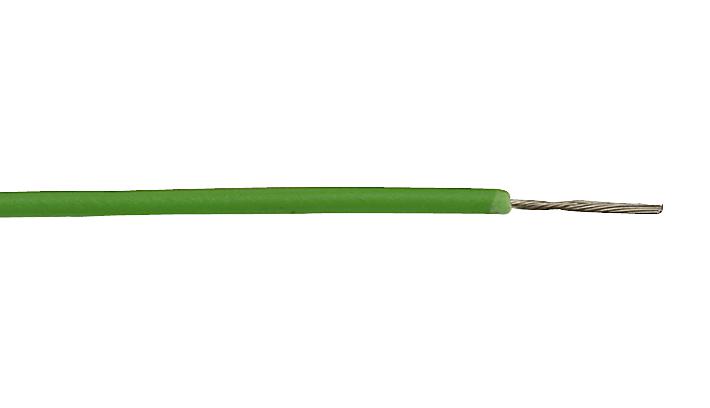

ALPHA WIRE 422807GR005 Hookup Wire
This flexible, color-coded hookup wire is designed for electrical installations requiring high safety and compliance standards. It features a nominal conductor size of 28 AWG, a PVC insulation with a 0.010-inch wall thickness, and multiple color options including LT blue, black, brown, red, orange, yellow, green, violet, slate, and white. Rated for 80°C and 300 V, it complies with UL and CSA standards, ensuring excellent electrical performance and environmental safety. Ideal for control panels, electronics, and wiring applications demanding durability and regulatory adherence.
ALPHA WIRE 422807GR005 Hookup Wire Specifications:
- Conductor Size: 28 AWG (7/36)
- Insulation Wall Thickness: 0.010" PVC, Semi
- Maximum Operating Temperature: 80°C
- Voltage Rating: 300 V AC
- Continuous Lengths Available: 5000 FT, 1000 FT, 500 FT
- Bend Radius: 10x Cable Diameter
- Pull Tension: 1.37 Lbs maximum
- Inductance: 0.07 pH/ft (Nominal)
- Conductor Resistance: 65 Ω / 1000 ft @ 20°C
- Environmental Compliance: RoHS 2 & RoHS 3, REACH
- Applicable Standards: UL Style 1061, CSA AWM IAB 80°C/300V
- Color Options: Blue, Violet, Slate, White, Black, Brown, Red, Orange, Yellow, Green
Buy the Buy AlphaWire Part Number 422807GR005 Online
Purchase the AlphaWire 422807GR005 hookup wire online today to enjoy fast, secure delivery of a high-quality, UL and CSA compliant cable. Designed for electrical and electronic applications, this flexible 28 AWG wire features PVC insulation with a 0.010-inch wall, supporting up to 80°C and rated for 300 V. It comes in multiple colors, ideal for control panels and wiring projects requiring durability, safety, and regulation compliance. Buy now to ensure your projects meet industry standards with trusted wiring solutions.
Order your AlphaWire 422807GR005 hookup wire today and ensure reliable electrical connections with high-quality, compliant wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 422807GR005?
You can click on the BUY or RFQ button to purchase 422807GR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 422807GR005?
You can download the 422807GR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 422807GR005?
ALPHA WIRE
