ALPHA WIRE 470025CYCL321 Control Cable
Pro-Met shielded flexible control cable features stranded bare copper conductors with a tinned copper braid shield and transparent PVC outer jacket. Designed for demanding environments, it resists oils, UV damage, and chemicals, making it suitable for industrial automation, medical devices, food, beverage, automotive, aerospace, and control applications like sensors, motor controls, and control panels. It includes two 21 AWG conductors rated for up to 1 million flex cycles, with a temperature range from -30°C to +70°C dynamically and -40°C to +80°C statically. The cable’s bending radius is 20 times its outer diameter for occasional movement and 6 times for fixed installation, ensuring durability and flexibility in challenging settings.
ALPHA WIRE 470025CYCL321 Control Cable Specifications:
- Conductor Material: Bare Copper, Tinned Copper Shield
- Conductor Size: 21 AWG
- Number of Conductors: 2
- Outer Jacket Material: PVC, transparent
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 20x outer diameter (occasional), 6x outer diameter (fixed)
- Shielding: Tinned copper braid with 80% coverage
- Resistance: Good chemical and UV resistance
- Flex life: Up to 1 million flex cycles
- Application Environment: Industrial automation, medical, food & beverage, automotive, aerospace
- Dimensional Data: Outer diameter varies, typical wall thickness 0.91 mm
- Construction: Stranded conductors, PVC insulation, braid shield
- Compliance: RoHS, CE, REACH
- Voltage Rating: 300/500V

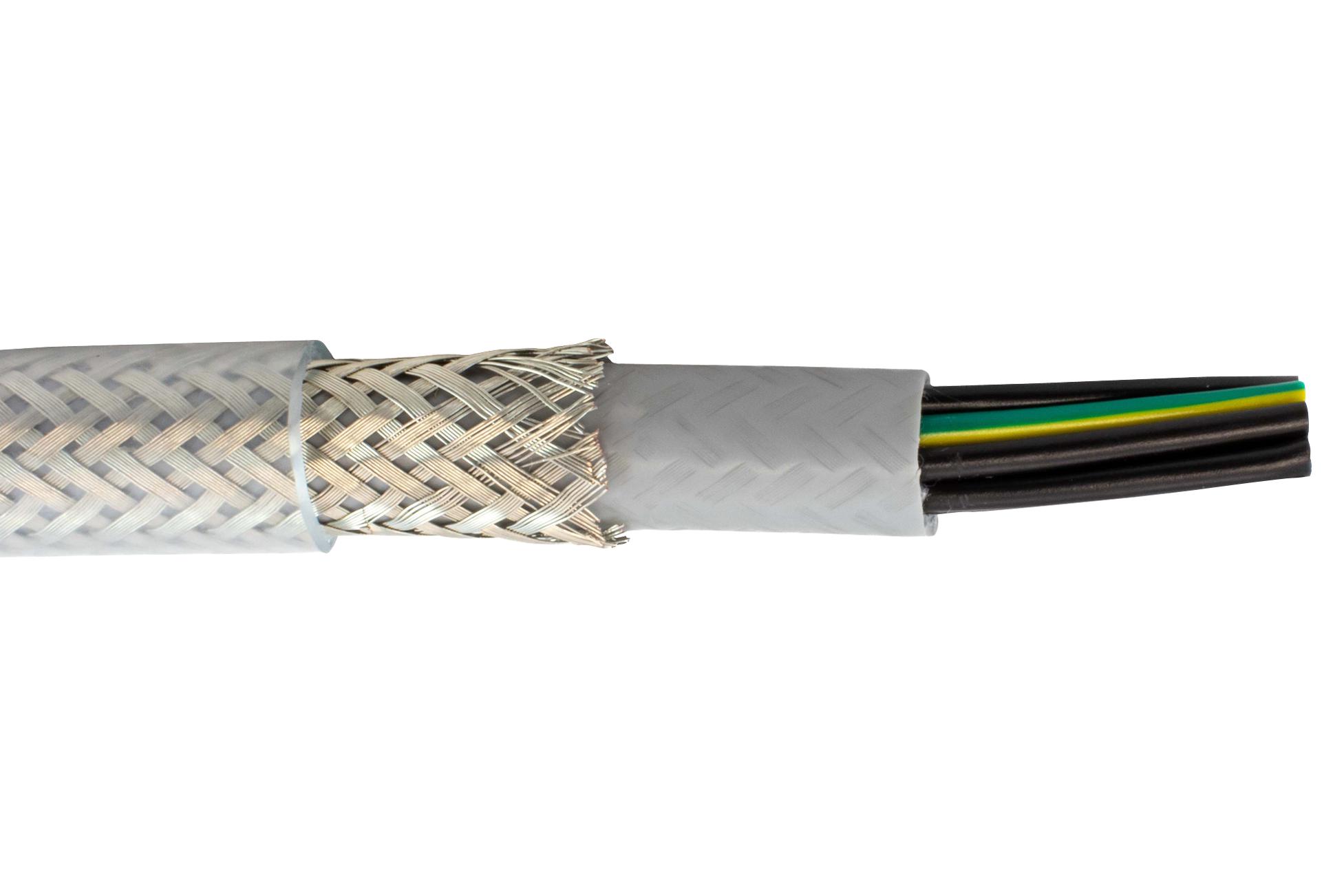

Buy the Buy Alpha Wire Control Cable Part Number 470025CYCL321 Online
Discover the premium control cable from Alpha Wire, featuring shielded design, oil and UV resistance, two 21 AWG conductors, rated for up to 1 million flex cycles. Perfect for industrial automation, medical, automotive, aerospace, and control systems, it ensures reliable performance in harsh environments. With a wide temperature range from -40°C to +80°C and a flexible bending radius, this cable offers durability and ease of installation. Purchase online today for high-quality, weather-resistant electrical connections in demanding applications.
Buy Alpha Wire 470025CYCL321 control cable now and experience unmatched flexibility, durability, and oil & UV resistance for demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470025CYCL321?
You can click on the BUY or RFQ button to purchase 470025CYCL321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470025CYCL321?
You can download the 470025CYCL321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470025CYCL321?
ALPHA WIRE
