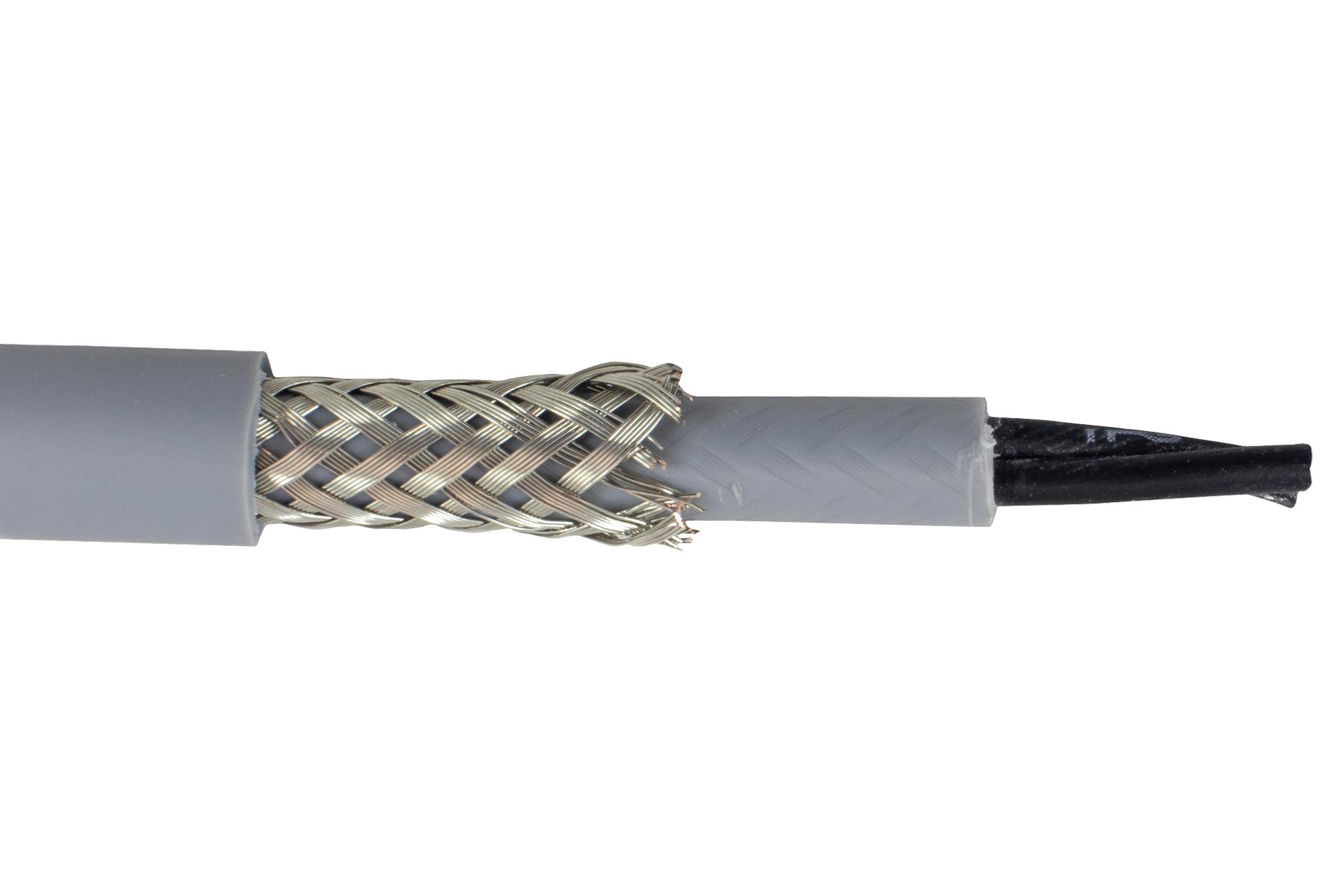

ALPHA WIRE 470025CYGE033 Industrial Control Cable
Pro-Met shielded flexible industrial control cable designed for demanding environments. Featuring two 21 AWG stranded bare copper conductors with a tinned copper braid shield and grey PVC jacket, it resists oils, UV, chemicals, and is suitable for food, medical, automation, automotive, defense, aerospace, and control systems. It withstands up to 1 million flex cycles, operates from -30°C to +70°C dynamically, and -40°C to +80°C statically. With a bending radius of 6X or 20X the outer diameter, depending on installation, it ensures reliable performance in critical industrial applications.
ALPHA WIRE 470025CYGE033 Industrial Control Cable Specifications:
- Conductors: Two 21 AWG stranded bare copper conductors
- Shield: Tinned copper braid with 80% coverage
- Jacket: Grey PVC, resistant to oils, UV, and chemicals
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 6X outer diameter static, 20X dynamic
- Voltage Rating: 300/500 V
- Resistance: Max DCR 39 Ω/Km at 20°C
- Flex Cycles: Up to 1,000,000
- Component Construction: Insulation, print color code, cable wall thickness, and inner diameter vary by model
- Compliance: IEC, ISO, RoHS, REACH
Buy the Alpha Wire Series PRO-MET Shielded Control Cable: 470025CYGE033
Order the Alpha Wire 470025CYGE033 industrial control cable now. Designed for demanding applications, it features shielded construction with 21 AWG conductors, resistant to oils, UV, and chemicals. Operating from -40°C to +80°C, with a bend radius of up to 20X, ensuring reliable flexible performance in automation, medical, and aerospace environments. Enjoy fast shipping, easy online purchase, and the peace of mind that comes with high-quality, compliant control cables that meet industry standards for safety and durability.
Get Alpha Wire 470025CYGE033 today—built for high durability, flexible performance, and demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470025CYGE033?
You can click on the BUY or RFQ button to purchase 470025CYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470025CYGE033?
You can download the 470025CYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470025CYGE033?
ALPHA WIRE
