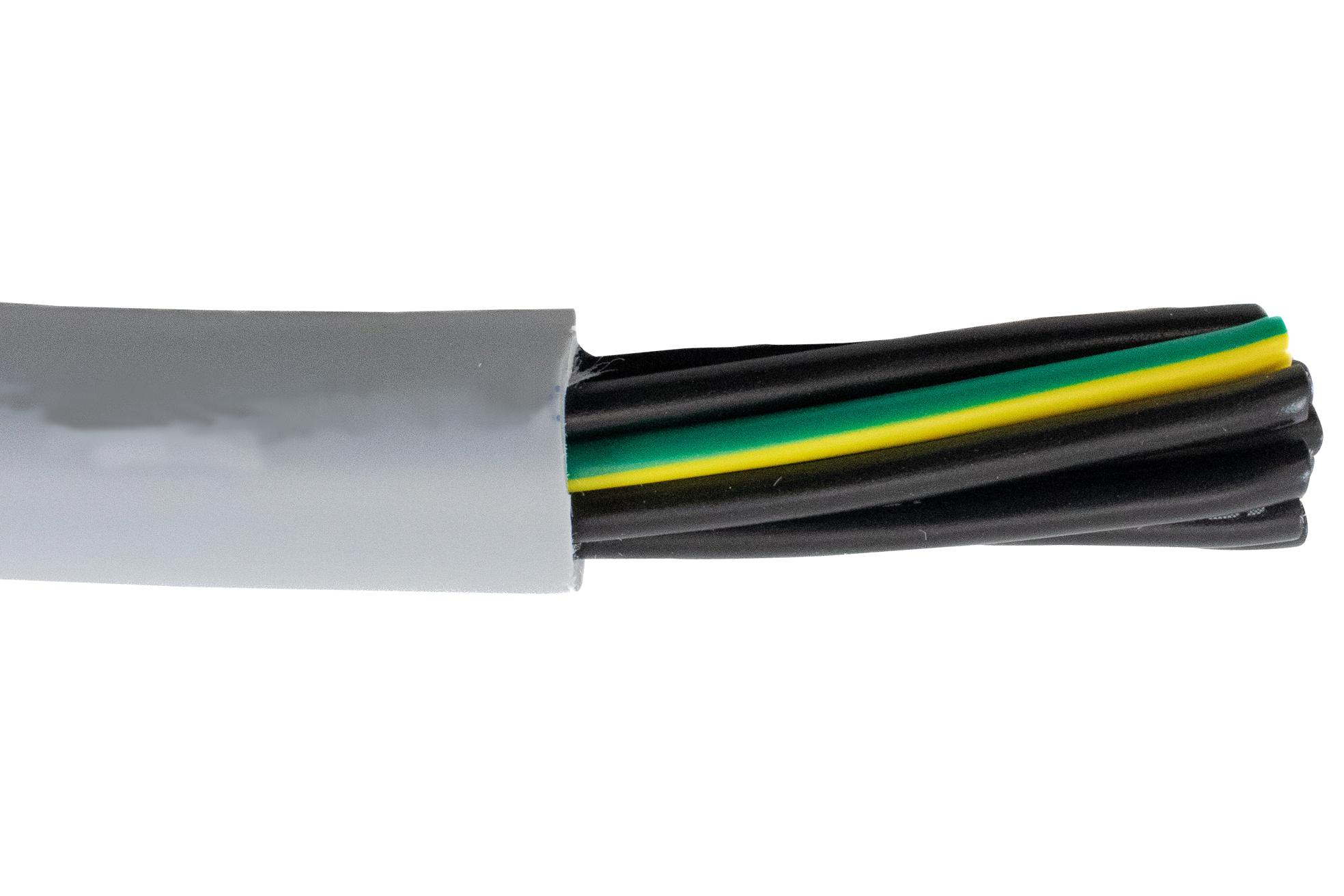

ALPHA WIRE 470027YYGE033 Control Cable
Pro-Met unshielded flexible industrial control cable with resistance to oils and UV damage. Features stranded bare copper conductors, grey PVC jacket, rated for 1 million flex cycles. Suitable for static (-40°C to +80°C) and dynamic (-30°C to +70°C) temperature ranges, with a bend radius of 10X outer diameter for dynamic use and 6X for fixed installation. Designed for demanding environments such as industrial automation, food, beverage, medical, automotive, defense, and aerospace. Ensures durability, chemical resistance, and flexibility for reliable performance in critical applications.
ALPHA WIRE 470027YYGE033 Control Cable Specifications:
- Conductor Material: Bare Copper
- Conductor Count: 2 (2-Conductor)
- Conductor Size: 19 AWG
- Jacket Material: PVC
- Jacket Color: Grey
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Flex Life: Up to 1,000,000 cycles
- Bend Radius: 10 times outer diameter (occasional movement), 6 times outer diameter (fixed installation)
- Resistance: Oil resistant, UV resistant
- Application: Industrial automation, food & beverage, medical, automotive, defense, aerospace
- Rated Voltage: 300/500 V
- Standards: IEC 60332-1 Flame behavior, EN 60228 Class 5 conductors
- Durability: Flexible, chemical resistant, high performance in harsh environments
Buy the AlphaWire Series Pro-Met Control Cable: 470027YYGE033
Purchase the AlphaWire control cable 470027YYGE033 online today for reliable performance in industrial automation, food, medical, automotive, and aerospace environments. This flexible, oil and UV resistant cable features stranded bare copper conductors with a durable grey PVC jacket, rated for up to 1 million flex cycles. Suitable for static and dynamic use, with a bend radius of 10 times the outer diameter, ensuring optimal flexibility and durability. Perfect for harsh conditions, it provides consistent electrical performance, chemical resistance, and long-lasting reliability in critical applications, simplifying procurement and logistics.
Get AlphaWire 470027YYGE033 today—built for durability, flexibility, and resistance to oils and UV damage in demanding industrial applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470027YYGE033?
You can click on the BUY or RFQ button to purchase 470027YYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470027YYGE033?
You can download the 470027YYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470027YYGE033?
ALPHA WIRE
