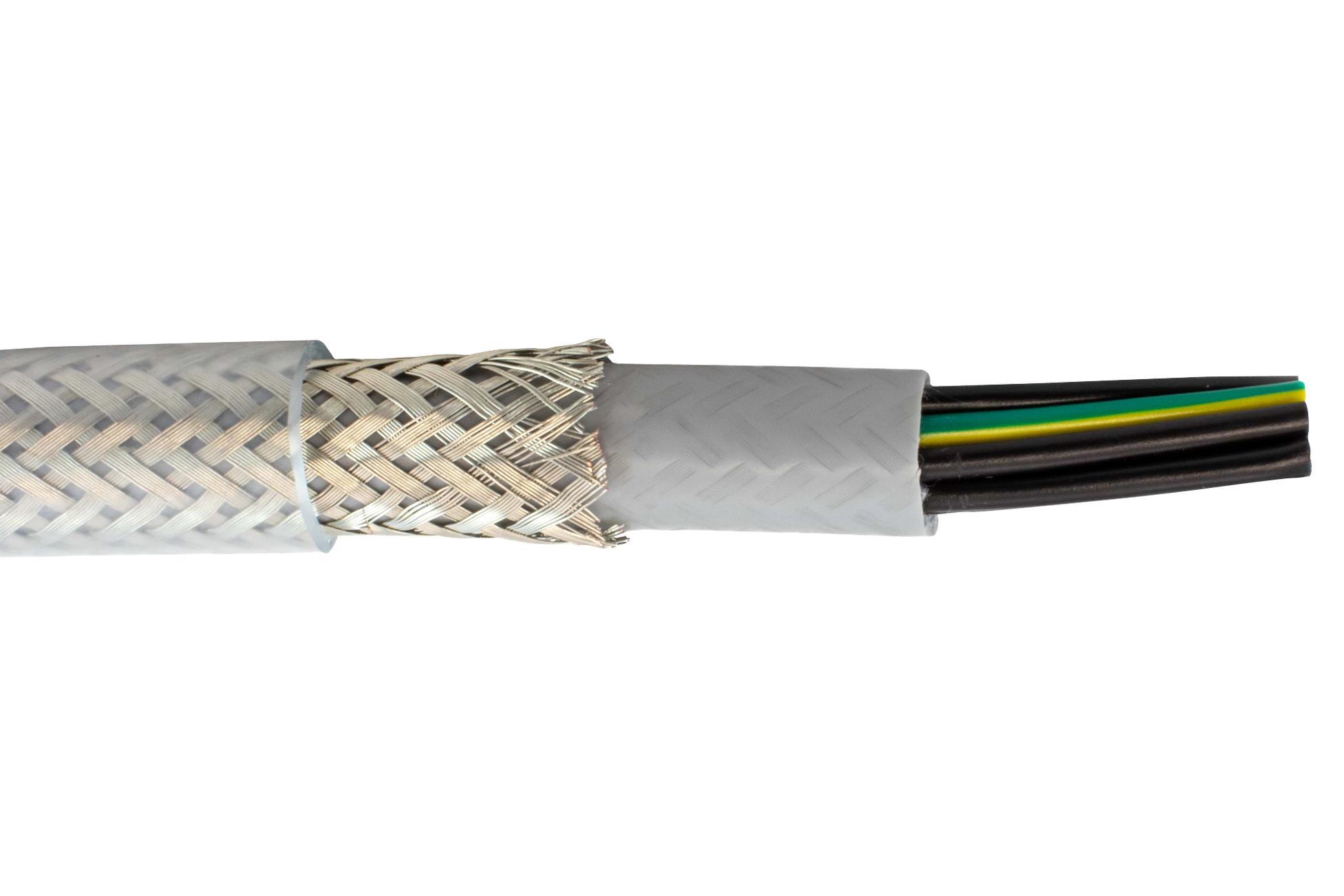

ALPHA WIRE 470045CYCL321 Industrial Control Cable
Pro-Met shielded flexible industrial control cable featuring four 21 AWG stranded bare copper conductors with a tinned copper braid shield and a transparent PVC outer jacket. This cable resists oils, UV, chemicals, and is highly flexible, rated for up to 1 million flex cycles. Operating temperatures range from -40°C to +80°C, with dynamic use up to +70°C and static up to -40°C. Ideal for demanding environments like industrial automation, medical, automotive, aerospace, and defense, supporting applications such as sensors, motor controls, and control panels. Bending radius for flexible use is 20× outer diameter, for fixed installation 6×.
ALPHA WIRE 470045CYCL321 Industrial Control Cable Specifications:
- Conductors: Four 21 AWG stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Outer Jacket: Transparent PVC
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Bending Radius: 20× outer diameter (occasional movement), 6× (fixed)
- Voltage Rating: 300/500 V
- Resistance: Yes, with DCR 39 Ω/Km @20°C
- Flame behavior: IEC 60332-1
- Oil Resistance: Yes
- UV Resistance: Yes
- Certifications: CE, RoHS, REACH
Buy the Alpha Wire Series Pro-Met Control Cable: 470045CY
Order the Alpha Wire 470045CY control cable online today to benefit from superior flexibility, excellent shielding, and high durability. Perfect for industrial automation, medical devices, automotive, aerospace, and defense applications, this cable supports demanding environments with its oil, UV, and chemical resistance. Its flexible construction withstands up to 1 million flex cycles, operating efficiently across temperatures from -40°C to +80°C. Easy to install with a small bending radius—20 times the outer diameter for movable setups and 6× for fixed installations—ensuring reliable, long-lasting performance in your critical applications.
Buy Alpha Wire 470045CY control cable now and experience proven flexibility, durability, and reliable performance in demanding industrial environments.
