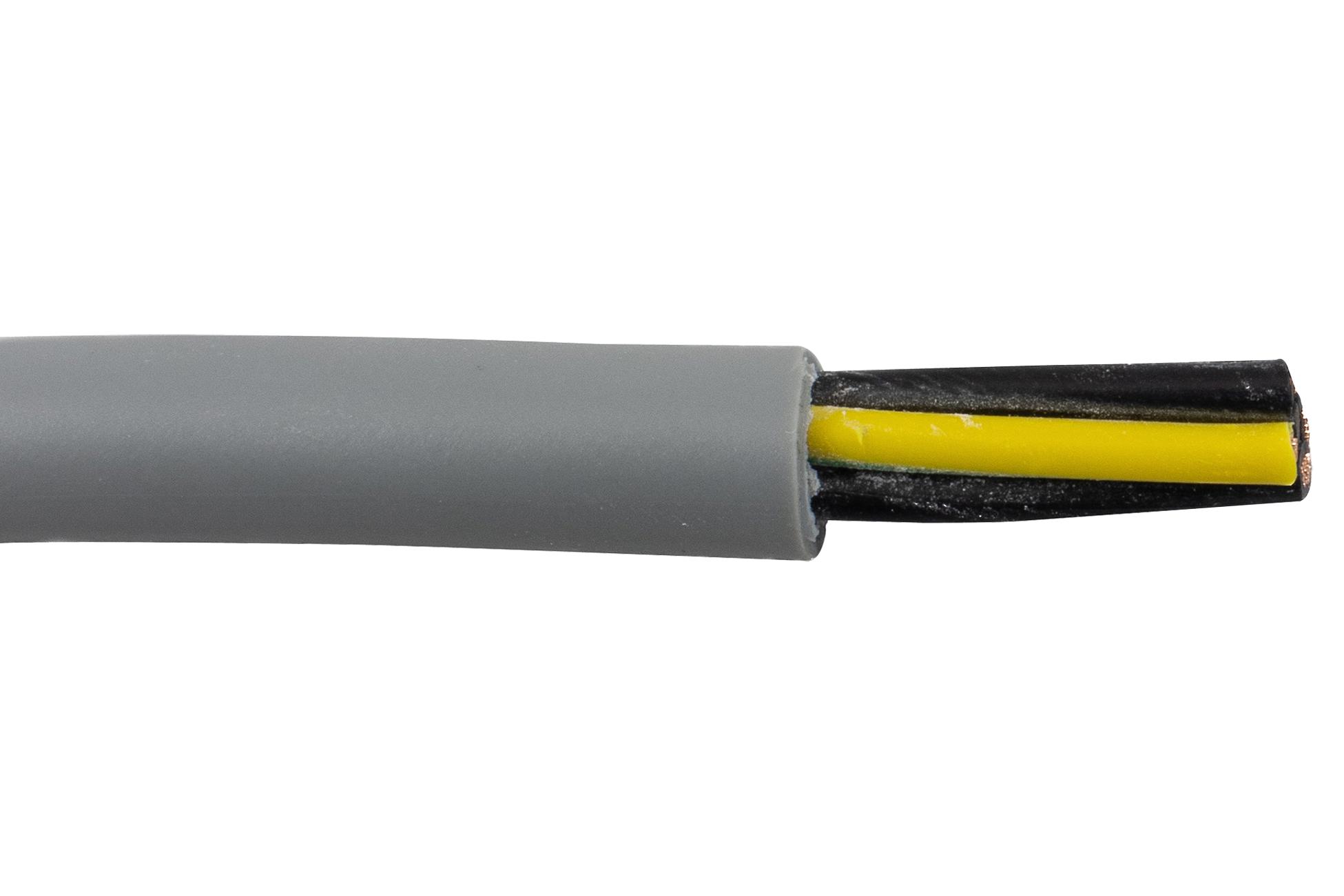

ALPHA WIRE 470047YYGE321 Control Cable
Pro-Met® unshielded flexible industrial YY control cable features four stranded bare copper conductors with a 19 AWG size, encased in a grey PVC jacket. Designed to be oil-resistant, UV resistant, and suitable for demanding environments such as automation, medical devices, and aerospace. It withstands up to 1 million flex cycles and operates within temperatures of -30°C to +70°C dynamically and -40°C to +80°C statically. The cable has a bending radius of 10x outer diameter for occasional movement and 6x for fixed installation, ensuring durability and long-lasting performance.
ALPHA WIRE 470047YYGE321 Control Cable Specifications:
- Conductor Material: Bare Copper
- Conductor Size: 19 AWG
- Number of Conductors: 4
- Insulation Material: PVC
- Jacket Color: Grey (RAL 7001)
- Jacket Material: PVC
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 10x outer diameter (occasional movement), 6x outer diameter (fixed)
- Flammability: Not specified but compliant with UL standards
- Resistance: UV and oil resistant
- Flexibility: Up to 1 million flex cycles
- Application Range: Automation, medical, aerospace, control panels, motor control, sensors
Buy the Alpha Wire Series Pro-Met Control Cable: 470047YYGE321
Order Alpha Wire control cable 470047YYGE321 online today to ensure reliable power and control signal transmission. Designed with four stranded bare copper conductors in a durable grey PVC jacket, this cable offers excellent resistance to oils, UV, and mechanical stress. Suitable for industrial automation, aerospace, medical equipment, and control panels, it withstands up to 1 million flex cycles and operates within -40°C to +80°C. Its flexibility, high durability, and resistance make it an ideal choice for demanding applications requiring precision and longevity.
Get Alpha Wire 470047YYGE321 today—built for long-lasting durability and flexible performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470047YYGE321?
You can click on the BUY or RFQ button to purchase 470047YYGE321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470047YYGE321?
You can download the 470047YYGE321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470047YYGE321?
ALPHA WIRE
