ALPHA WIRE 470095YYGE321 Industrial Control Cable

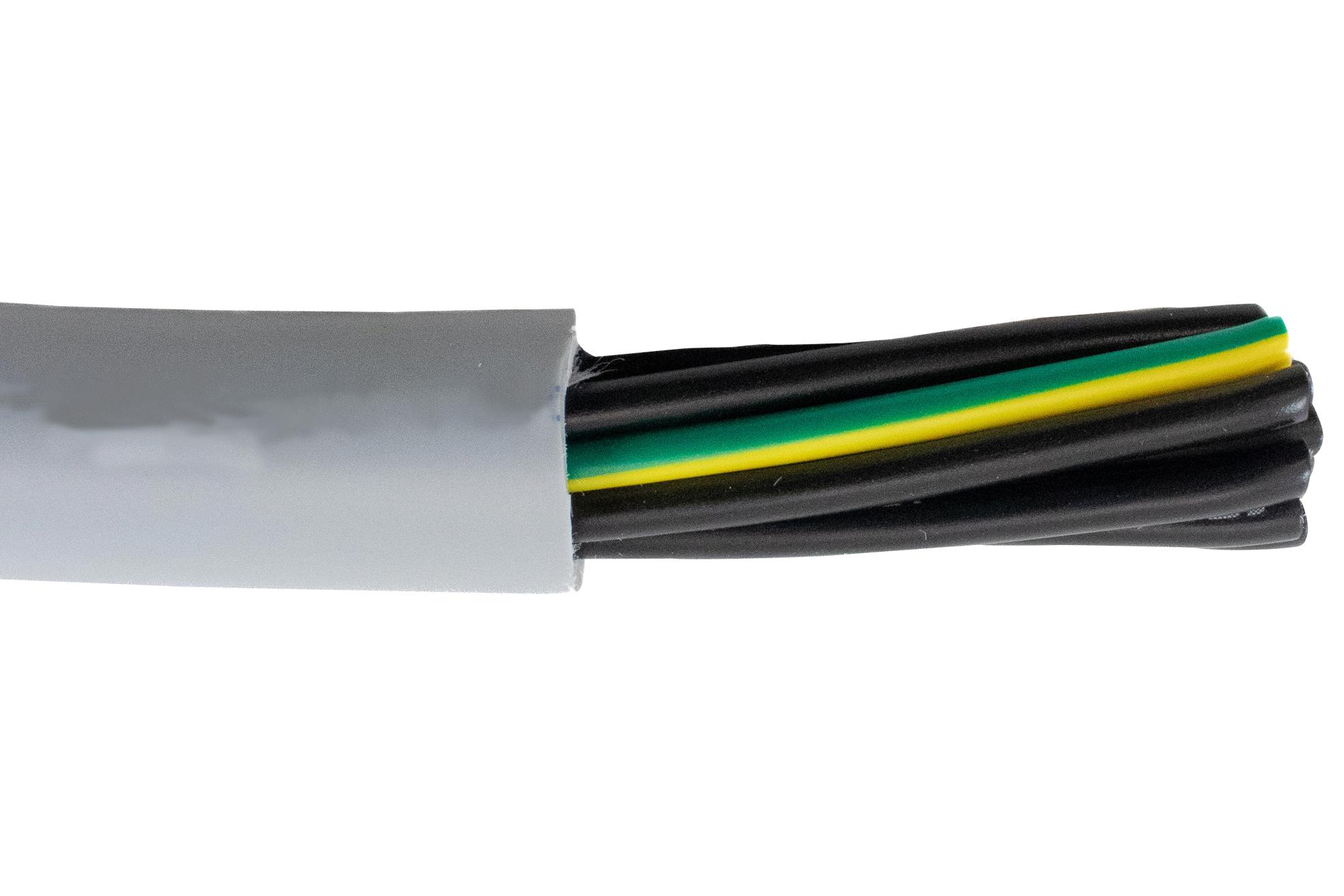

Pro-Met® unshielded flexible industrial YY control cable features nine stranded bare copper conductors with AWG 21 size and a grey PVC jacket (RAL 7001). It is impervious to oils, resistant to UV damage, and suitable for various demanding environments. This cable supports up to 1 million flexible cycles and operates within a temperature range of -30°C to +70°C dynamically and -40°C to +80°C statically. Its bending radius is 10 times the outer diameter for occasional movement and 6 times for fixed installations. It offers excellent UV, chemical resistance, and flexibility in industrial automation, food, medical, automotive, defense, military, and aerospace industries.
ALPHA WIRE 470095YYGE321 Industrial Control Cable Specifications:
- Number of Conductors: 9 strands of bare copper
- Conductor Size: AWG 21
- Jacket Material: Grey PVC (RAL 7001)
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 10x outer diameter (occasional movement), 6x (fixed installation)
- Resistance: UV resistant, oil resistant, chemically resistant
- Flexibility: Supports up to 1,000,000 flexing cycles
- Application: Industrial automation, food & beverage, medical, automotive, defense & aerospace
- Certifications: RoHS compliant, CE
Buy the Buy Alpha Wire Control Cable Part Number 470095YYGE321 Online
Purchase the Alpha Wire control cable online now and benefit from excellent flexibility, UV resistance, and chemical durability. Perfect for automation, medical, automotive, or aerospace projects, this high-quality cable guarantees dependable and durable connections. With features supporting up to 1 million flexing cycles and operating within a broad temperature range, it is ideal for demanding industrial applications. Order today for fast delivery and ensure your project has superior cabling for long-lasting performance in challenging environments.
Order your Alpha Wire Series470095YYGE321 flexible industrial control cable today and ensure reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470095YYGE321?
You can click on the BUY or RFQ button to purchase 470095YYGE321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470095YYGE321?
You can download the 470095YYGE321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470095YYGE321?
ALPHA WIRE
