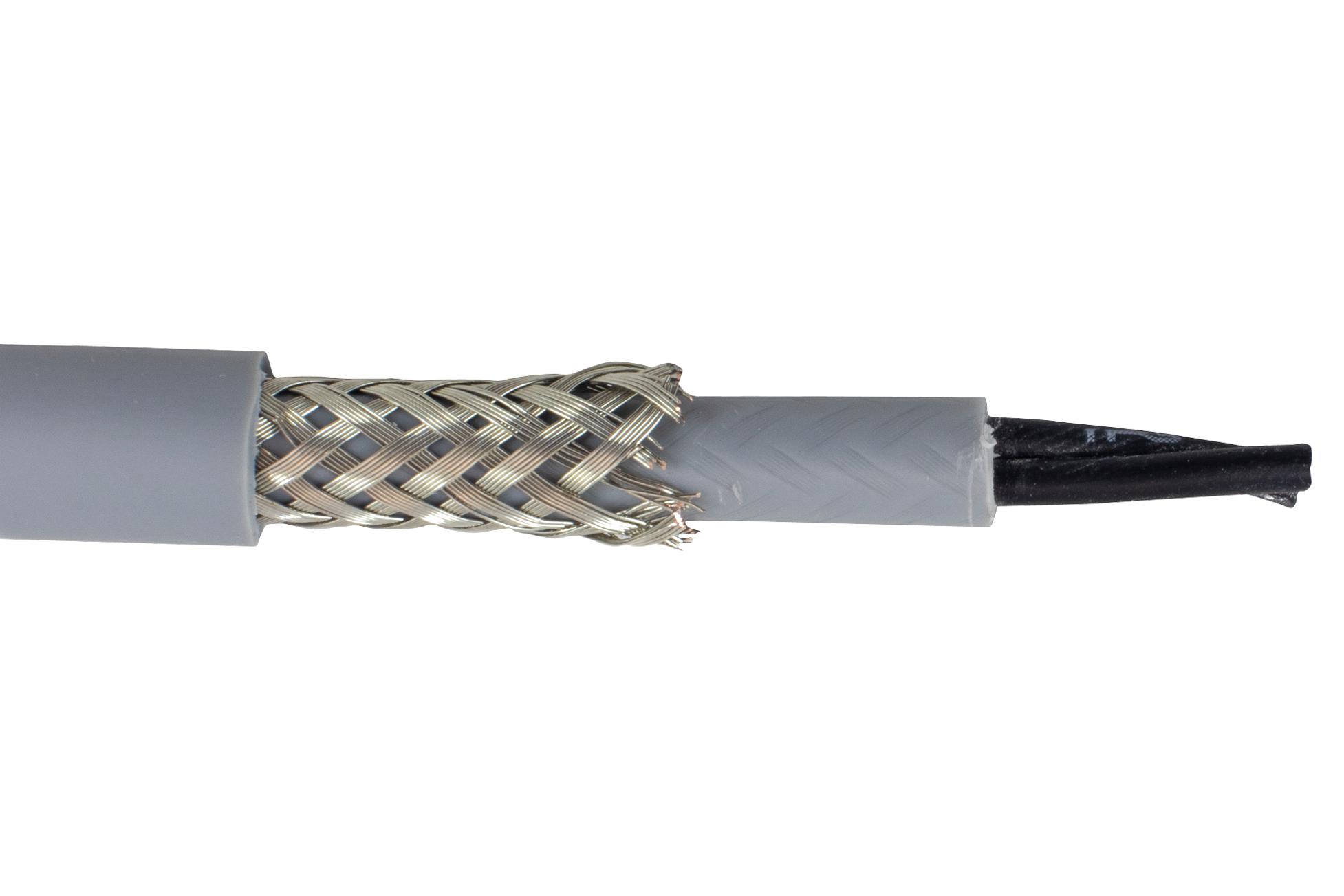

ALPHA WIRE 470215CYGE033 Control Cable
Pro-Met shielded flexible industrial control cable designed for versatile applications across various sectors. Features include two stranded bare copper conductors with a 15 AWG size, a tinned copper braid shield, and a grey PVC jacket resistant to oils, UV damage, and chemicals. Rated for up to 1 million flex cycles, it operates in dynamic temperature ranges from -30°C to +70°C and static ranges from -40°C to +80°C. Suitable for food, medical, automation, automotive, defense, aerospace, and control systems, with a bending radius of 20x for occasional movement and 6x for fixed installs.
ALPHA WIRE 470215CYGE033 Control Cable Specifications:
- Conductor Material: Bare Copper
- Conductor Size: 15 AWG
- Shield: Tinned Copper Braid, 80% coverage
- Jacket Material: PVC
- Jacket Color: Grey
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Flex Life: Up to 1 million cycles
- Bending Radius: 20x outer diameter (occasional movement), 6x (fixed installation)
- Voltage Rating: 300/500 V
- Insulation Wall Thickness: Approx. 0.65 mm
- Outer Diameter: Approximately 8.83 mm to 9.13 mm
- Compliance: IEC 60228 Class 5, DIN VDE 0295, IEC 60332-1, DIN EN 50290-2-22, UV Resistant
- Oil Resistance: Yes
- Flame Resistance: Yes
Buy the Buy Alpha Wire Part Number 470215CYGE033 Online
Purchase Alpha Wire control cable 470215CYGE033 online today to ensure reliable, flexible performance in automation, aerospace, and industrial environments. This shielded cable features 15 AWG conductors, a tinned copper braid shield for EMI protection, and a tough PVC jacket resistant to oils, chemicals, and UV exposure. Rated for up to 1 million flex cycles, it operates at temperatures from -40°C to +80°C, suitable for food, medical, and automation systems. Perfect for both fixed and dynamic applications, with a bending radius of 6x to 20x diameter, ensuring durability and safety.
Get Alpha Wire 470215CYGE033 today—designed for flexible, industrial control with durable, oil-resistant PVC jacket and tinned copper braid shield.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470215CYGE033?
You can click on the BUY or RFQ button to purchase 470215CYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470215CYGE033?
You can download the 470215CYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470215CYGE033?
ALPHA WIRE
