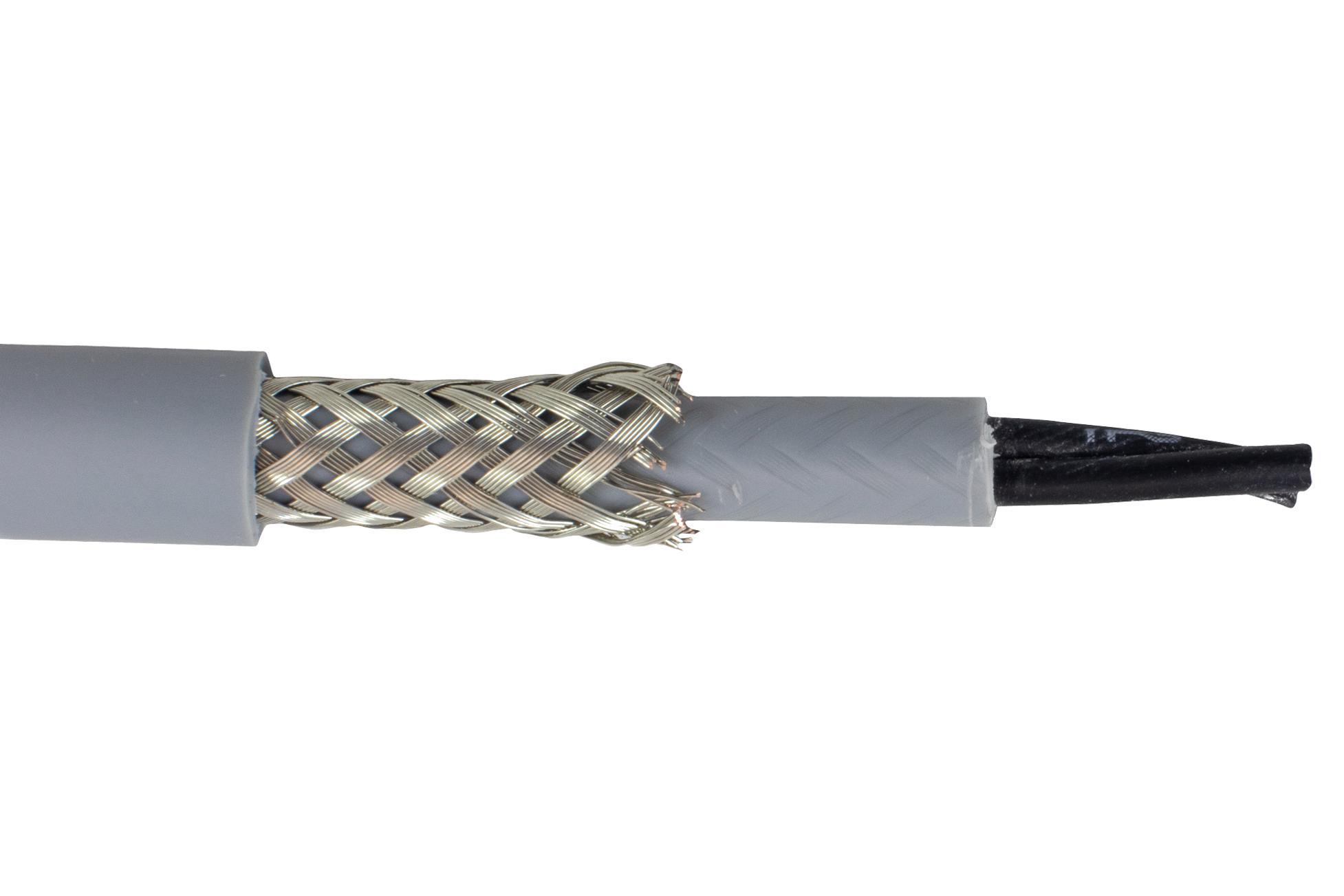

ALPHA WIRE 470215CYGE321 control cable
The Pro-Meta shielded flexible industrial control cable is built for demanding environments, featuring stranded bare copper conductors with a tinned copper braid shield and a grey PVC jacket. Resistant to oils and UV radiation, this cable is ideal for food, medical, industrial automation, automotive, defense, aerospace, and precision control applications. It withstands up to 1 million flex cycles, operates from -30°C to +70°C (dynamic) and -40°C to +80°C (static). With a bending radius of 20x (occasional movement) and 6x (fixed), it ensures reliability in dynamic control systems and machinery.
ALPHA WIRE 470215CYGE321 control cable Specifications:
- Conductor Material: Stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Jacket Material: PVC, grey
- Wall Thickness: 0.65 mm (insulation), 0.90 mm (jacket)
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Flex Cycles: Up to 1 million
- Bending Radius: 20x overall diameter (occasional movement), 6x (fixed)
- Voltage Rating: 300/500 V
- External Diameter: Approximately 12 mm
- Standards: IEC 60332-1 flame behavior, Oil resistant, UV resistant
- Certifications: RoHS compliant, CE, REACH compliant
Buy the Alpha Wire Series PRO-META Shielded Control Cable: 470215CYGE321
Order the Alpha Wire 470215CYGE321 control cable online today and ensure your industrial projects benefit from top-tier performance. Designed to withstand demanding environments, it features high flex life, oil and UV resistance, and a shielded copper conductor configuration suitable for automation, motor controls, and precision equipment. With certifications like RoHS, CE, and REACH, this cable guarantees safety and environmental compliance. Secure your supply now and enhance your machinery’s reliability with this durable, high-performance control cable, ideal for critical industrial and automation systems.
Buy Alpha Wire 470215CYGE321 now and experience unmatched reliability and performance in demanding industrial control applications. This high-flex, oil-resistant cable ensures durability and safety across food, medical, automation, and aerospace sectors, supporting up to 1 million flex cycles with excellent insulation and shielding, making it the ideal choice for complex machinery and precision systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470215CYGE321?
You can click on the BUY or RFQ button to purchase 470215CYGE321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470215CYGE321?
You can download the 470215CYGE321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470215CYGE321?
ALPHA WIRE
