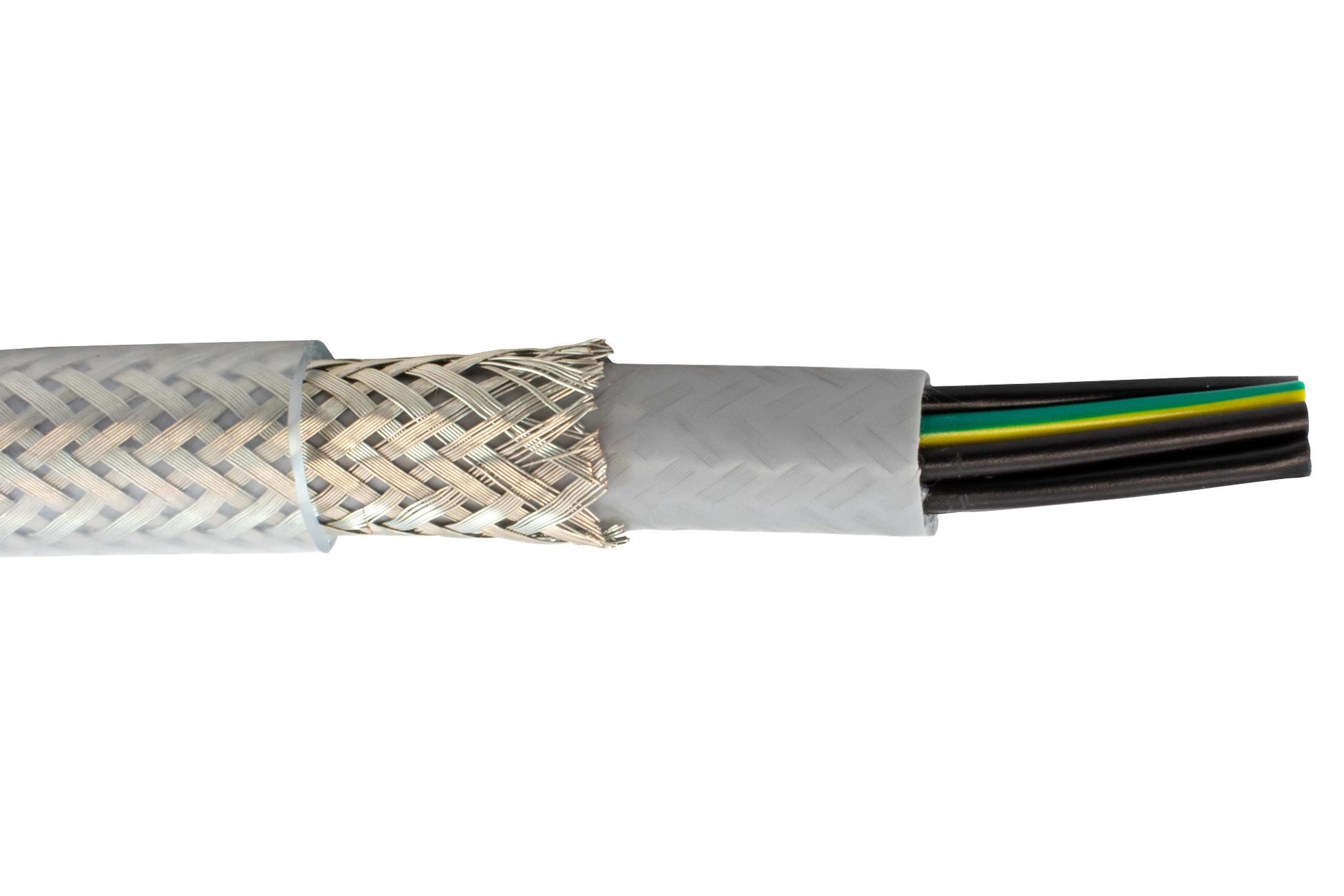

ALPHA WIRE 470415CYCL321 Shielded Control Cable
Pro-Met® shielded flexible industrial control cable with four 15 AWG stranded bare copper conductors, featuring a tinned copper braid shield and transparent PVC outer jacket. Designed for durability, it offers resistance to oils, UV radiation, and chemicals. Suitable for dynamic flexing up to 1 million cycles, it operates in temperatures from -40°C to +80°C statically and -30°C to +70°C dynamically. The cable's bending radius is 20 times its outer diameter for movement and 6 times for fixed installations, making it ideal for industrial automation, medical, food, automotive, and aerospace applications.
ALPHA WIRE 470415CYCL321 Shielded Control Cable Specifications:
- Conductors: 4 stranded bare copper, 15 AWG
- Shield: Tinned copper braid, 80% coverage
- Outer Jacket: Transparent PVC
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Bending Radius: 20x diameter (occasional movement), 6x diameter (fixed)
- Resistance: Yes
- Voltage Rating: 300/500 V
- Flammability: UL 94V-0
- Flexing: Suitable for 1 million cycles
- Resistance to oils, UV, chemicals
Buy the Buy Alpha Wire Pro-Met Shielded Control Cable Part Number 470415CY now and experience unmatched durability and flexibility
Order the Alpha Wire Pro-Met shielded flexible control cable with four 15 AWG conductors online today. Perfect for industrial automation, medical, food, automotive, aerospace, and control panel applications. Featuring durable PVC outer jacket, tinned copper braid shield, and resistance to oils, UV, and chemicals. Designed for dynamic flexing up to 1 million cycles, operating within -40°C to +80°C, with a bending radius of 20 times diameter for movement and 6 times for fixed installations. Ensure reliable, flexible control connections for critical industrial needs.
Buy Alpha Wire 470415CY now and enjoy highly durable, oil-resistant, and flexible control cable suitable for demanding industrial environments.
