ALPHA WIRE 470415CYGE033 Industrial Control Cable

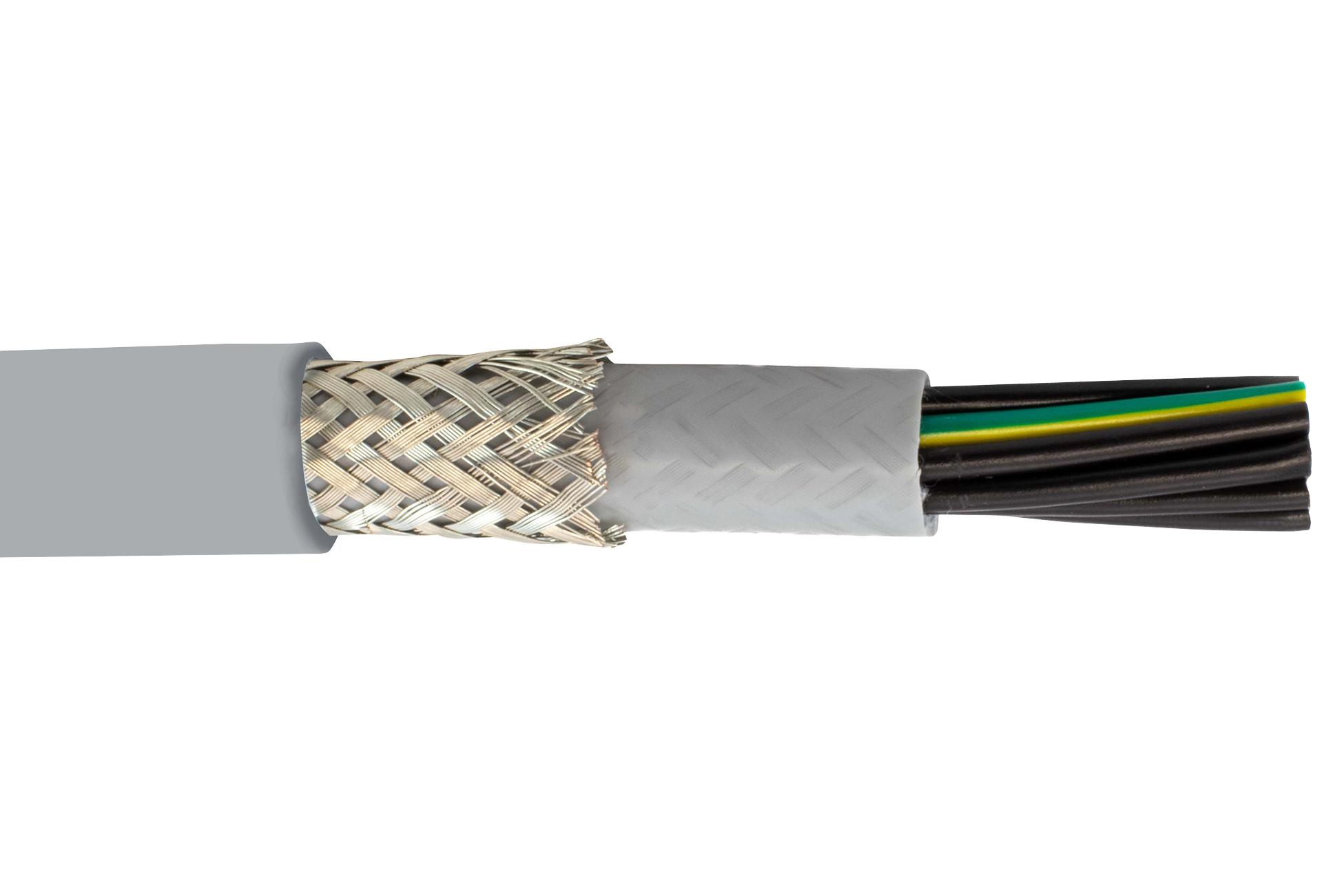

Pro-Met® shielded flexible industrial control cable is built for demanding environments, resistant to oils and UV. It features four 15 AWG stranded bare copper conductors, a tinned copper braid shield with 80% coverage, and a grey PVC jacket. Rated for up to 1 million flex cycles, it operates from -30°C to +70°C dynamically and from -40°C to +80°C statically. The cable’s flexible design, with a bending radius of 20 times its outer diameter for occasional movement and 6 for fixed use, makes it suitable for industrial automation, food processing, medical, automotive, defense, military, and aerospace applications.
ALPHA WIRE 470415CYGE033 Industrial Control Cable Specifications:
- Number of Conductors: 4
- Conductor Size: 15 AWG stranded bare copper
- Shield Type: Tinned copper braid, 80% coverage
- Jacket Material: PVC, grey
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Flex Life: Up to 1 million cycles
- Bending Radius: 20 x outer diameter (occasional movement), 6 x outer diameter (fixed)
- Rated Voltage: 300/500 V
- Resistance: Conductor DCR 13.3 Ω/Km @20°C
- Color Code: Multiple colors with print for identification
Buy the Buy Alpha Wire Control Cable Part Number 470415CYGE033 Online
Purchase the Alpha Wire control cable online today for superior quality and durability. Designed for harsh environments, it features four 15 AWG conductors, a copper braid shield, and a PVC jacket. Rated for -40°C to +80°C, it withstands oils, UV exposure, and up to 1 million flex cycles. Ideal for industrial automation, medical, automotive, aerospace, and food processing applications, this flexible cable ensures excellent performance, safety, and long-term reliability in your critical projects.
Order your Alpha Wire Series470415CYGE033 shielded flexible control cable today and ensure reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470415CYGE033?
You can click on the BUY or RFQ button to purchase 470415CYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470415CYGE033?
You can download the 470415CYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470415CYGE033?
ALPHA WIRE
