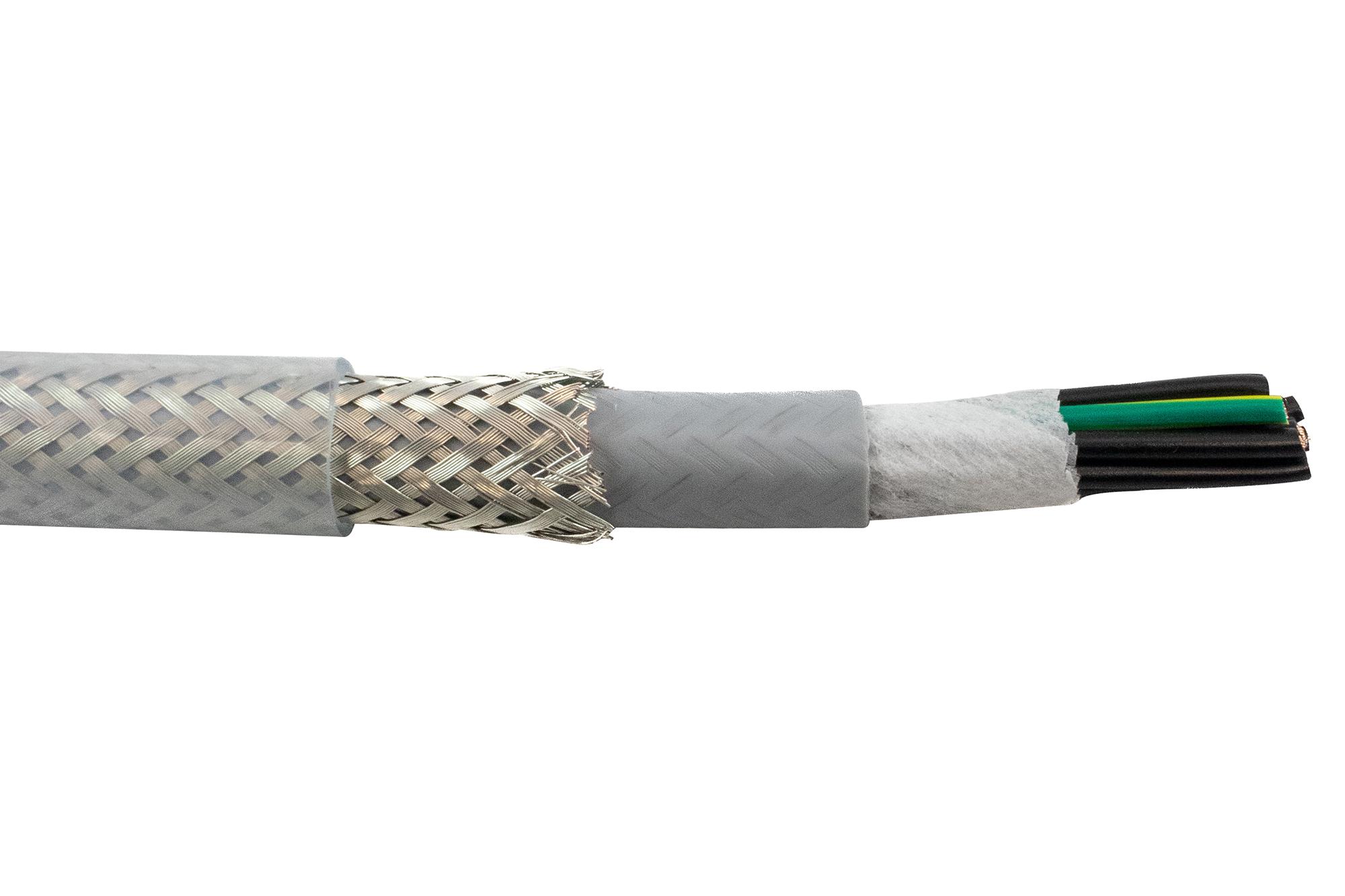

ALPHA WIRE 470915CYCL321 Industrial Control Cable
Pro-Met shielded flexible industrial control cable designed for demanding applications. It features oil-resistant and UV-stable materials, with stranded bare copper conductors, a tinned copper braid shield, and a transparent PVC outer jacket. The cable supports up to 1 million flex cycles and operates within a temperature range of -30°C to +70°C dynamically and -40°C to +80°C statically. Its bending radius is 20 times the outer diameter for occasional movement and 6 times for fixed installations. Suitable for food, medical, automation, automotive, defense, aerospace, ensuring durability and reliable signal transmission.
ALPHA WIRE 470915CYCL321 Industrial Control Cable Specifications:
- Conductor Material: Stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Outer Jacket: Transparent PVC, 0.73 mm wall, grey
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Bending Radius: 20 times outer diameter (occasional), 6 times for fixed
- Voltage Rating: 300/500V
- Conductor Resistance: 13.3 ohms/km at 20°C
- Insulation Material: PVC
- Construction: 9 conductors, cabled with nonwoven polyester tape wrap
- Twists per meter: Min 7.6
- Color: Black, grey, yellow/green
- Certification: IEC, RoHS, REACH, VDE
- Flame Resistance: IEC 60332-1
- Oil Resistance: DIN EN 50290-2-22
- UV Resistance: Yes
Buy the Alpha Wire Series Industrial Control Cable 470915CY
Purchase Alpha Wire 470915CY control cable online today—designed for demanding industrial applications. Featuring oil-resistant, UV-stable materials with stranded copper conductors, a tinned copper braid shield, and a transparent PVC outer jacket, it offers durability and flexibility. Capable of handling up to 1 million flex cycles, with excellent temperature performance from -40°C to +80°C continually, and compliance with RoHS and REACH standards. Ideal for food, medical, automation, automotive, defense, aerospace sectors, ensuring reliable signal transmission in tough environments.
Get Alpha Wire 470915CY today—built for durability, flexibility, and demanding industrial control environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470915CYCL321?
You can click on the BUY or RFQ button to purchase 470915CYCL321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470915CYCL321?
You can download the 470915CYCL321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470915CYCL321?
ALPHA WIRE
