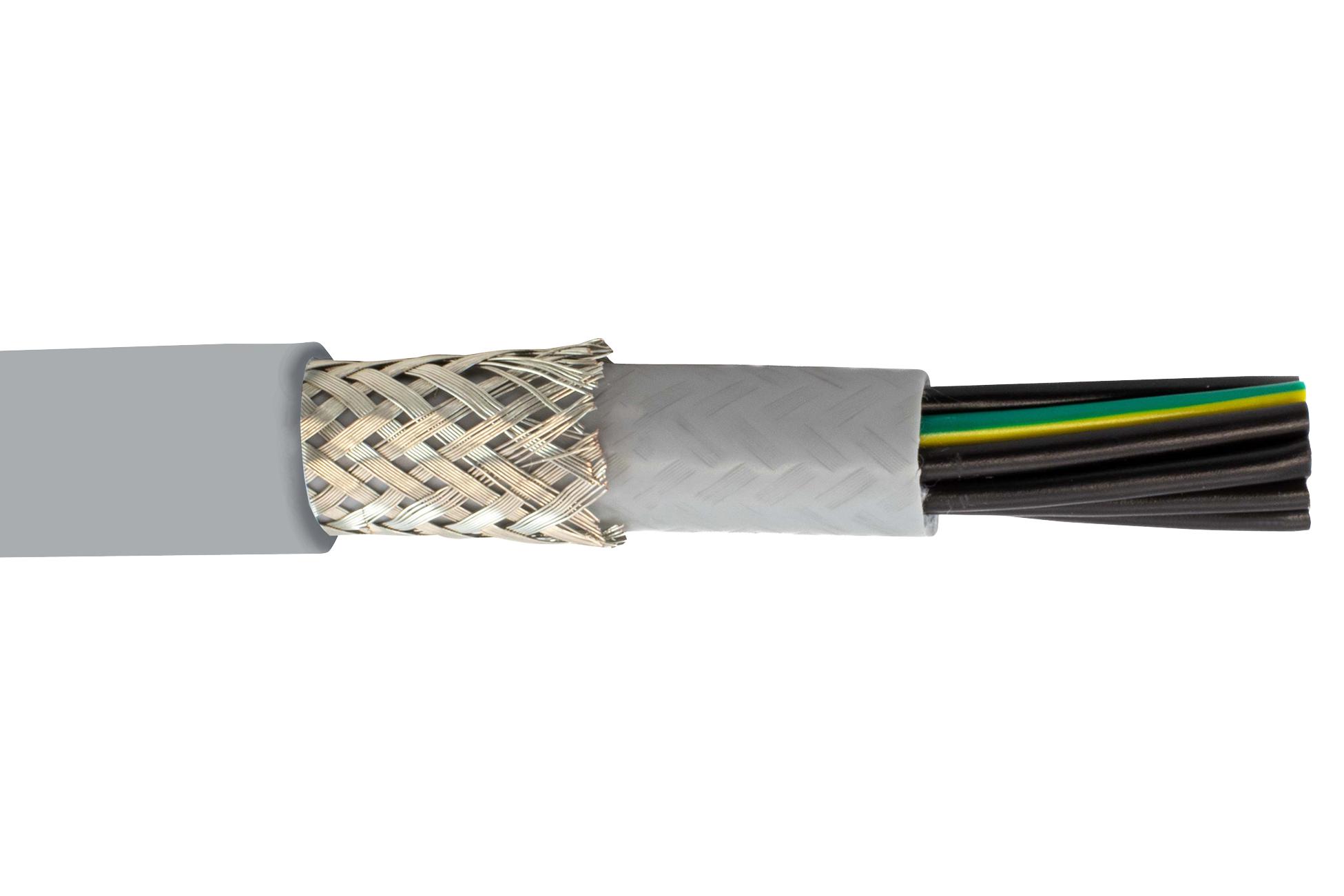

ALPHA WIRE 470915CYGE321 shielded control cable
The Pro-Met shielded flexible control cable features nine 15 AWG stranded bare copper conductors, protected by an 80% tinned copper braid shield and a grey PVC jacket. Designed for durability, it withstands oils, UV exposure, and can endure up to 1 million flex cycles. Operating across -30°C to +70°C dynamically and -40°C to +80°C statically, it is ideal for industrial automation, automotive, aerospace, and medical applications. Its bending radius is 20 times its outer diameter for flexible movement and 6 times for fixed installations, ensuring excellent chemical resistance, flexibility, and UV durability.
ALPHA WIRE 470915CYGE321 shielded control cable Specifications:
- Conductors: 9 x 15 AWG stranded bare copper
- Shield: 80% tinned copper braid
- Jacket: PVC, grey (RAL 7001), 0.73 mm wall thickness
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bending Radius: 20 x outer diameter (occasional), 6 x outer diameter (fixed)
- Resistance: Conductor DCR 13.3 Q/Km at 20°C
- Flex cycles: Up to 1 million cycles
- Chemical Resistance: Oil, UV, and chemical-resistant
- Application: Industrial automation, automotive, aerospace, medical devices
Buy the Alpha Wire 470915CY – Reliable Control Cable for Industrial Applications
Purchase Alpha Wire 470915CY control cable online today to ensure reliable and flexible connection in your industrial or aerospace projects. Featuring nine 15 AWG copper conductors, an 80% tinned copper braid shield, and a durable grey PVC jacket, this cable provides excellent oil, UV, and chemical resistance. Designed to withstand up to 1 million flex cycles, it operates effectively from -40°C to +80°C. Ideal for automation, medical, automotive, and defense systems, it offers optimal flexibility with a bending radius of 20 times the outer diameter for occasional movement and 6 times for fixed installations. Secure your supply now for dependable performance.
Buy Alpha Wire 470915CY control cable now and experience unmatched durability, flexibility, and excellent resistance for demanding industrial environments.
