ALPHA WIRE 471215CYCL321 Control Cable

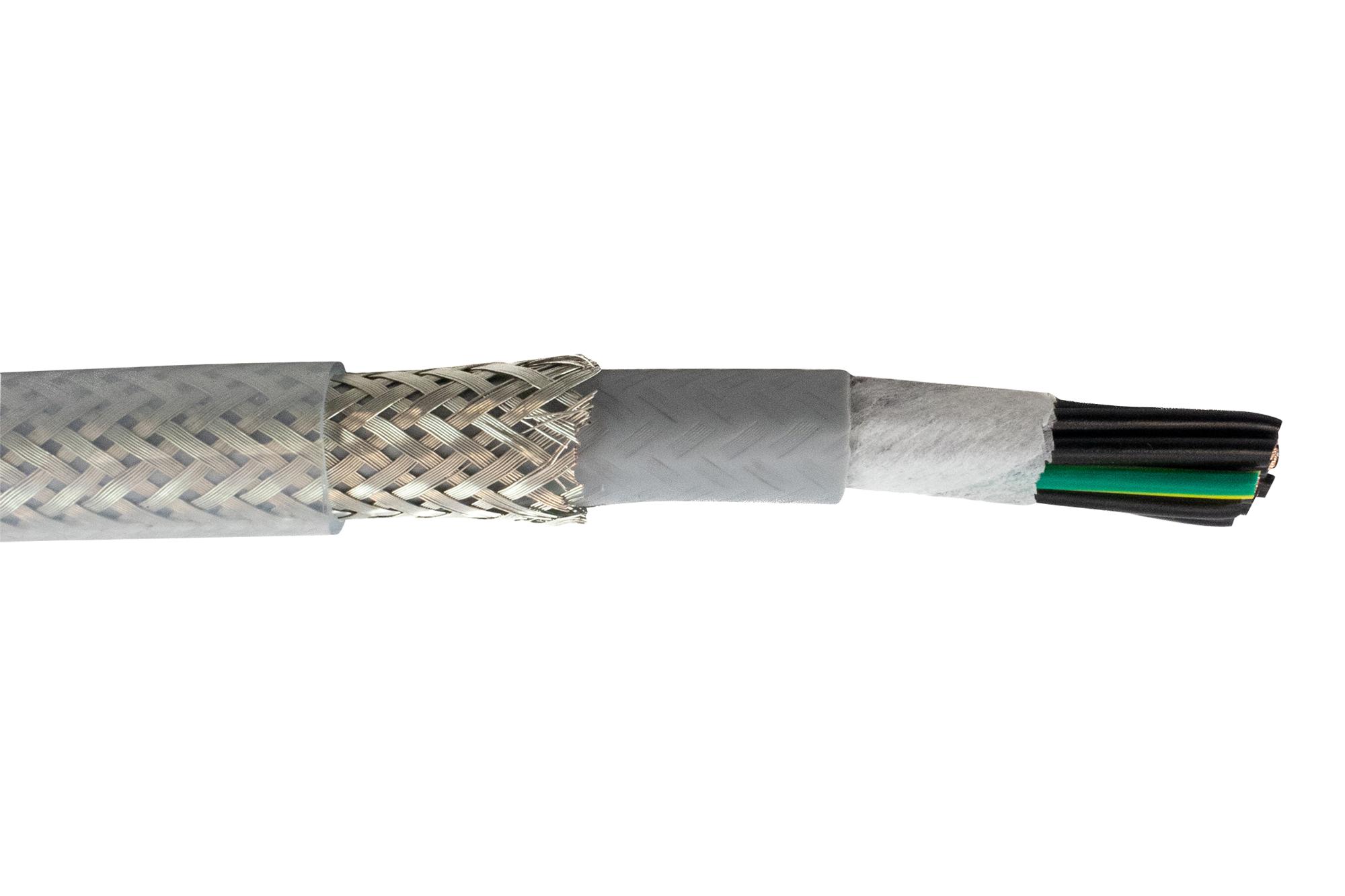

This Pro-Met® shielded flexible industrial control cable is designed with durable, oil-resistant, UV-resistant transparent PVC jacket, 12 stranded bare copper conductors, and an 80% tinned copper braid shield. It is ideal for industrial automation, control panels, medical devices, automotive, aerospace, and motion control applications. Rated for 300/500V with a high flex life of up to 1 million cycles, it operates stably from -40°C to +70°C static and -30°C to +80°C dynamic. The cable supports bending radii of 6X to 20X diameter, ensuring flexibility and robustness in various environments including chemical exposure and UV exposure.
ALPHA WIRE 471215CYCL321 Control Cable Specifications:
- Conductor Material: Stranded bare copper
- Conductor Size: 15 AWG
- Number of Conductors: 12
- Shielding: Tinned copper braid, 80% coverage
- Outer Jacket: Transparent PVC, 0.75 mm wall, resistant to oils and UV
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Voltage Rating: 300/500 V
- Bend Radius: 6x cable diameter static, 20x dynamic
- Flex Life: Up to 1 million cycles
- Application: Industrial automation, control panels, medical devices, automotive, aerospace, motion control
Buy the Buy Alpha Wire Control Cable Part Number 471215CY Online
Order the Alpha Wire control cable 471215CY now online and benefit from its exceptional flexibility, high durability, and resistance to oils, chemicals, and UV. Designed for industrial automation, control panels, aerospace, and medical applications, this cable features 12 conductors of 15 AWG stranded bare copper, protected by a tinned copper braid shield with 80% coverage. Its transparent PVC jacket withstands harsh environments, operating reliably from -40°C to +80°C, with a high flex life of up to 1 million cycles. Perfect for demanding industrial environments requiring robustness and flexibility.
Buy Alpha Wire 471215CY control cable now and experience unmatched flexibility, durability, and resistance suitable for industrial automation and precision control.
Frequently Asked Questions
Where can I buy ALPHA WIRE 471215CYCL321?
You can click on the BUY or RFQ button to purchase 471215CYCL321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 471215CYCL321?
You can download the 471215CYCL321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 471215CYCL321?
ALPHA WIRE
