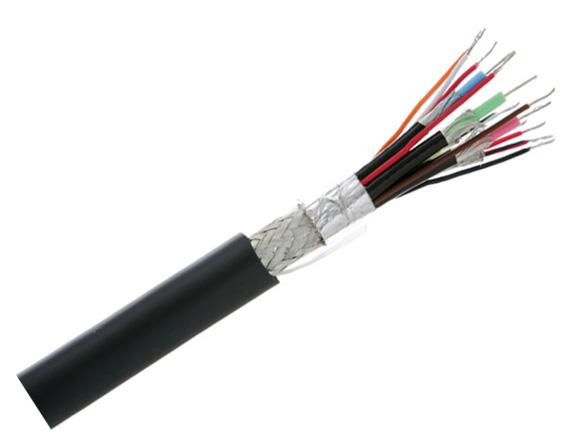

ALPHA WIRE 510060CSL005 Shielded Cable
This shielded cable features 24 AWG tinned copper conductors with a PVC insulation wall thickness of 0.010 inches, suitable for industrial and electronic applications. It is rated for 105°C and 300V, with flexible construction including a nonwoven polyester core wrap and a shield of Aluminum/Mylar tape. The cable is compliant with RoHS 2, REACH, and UL standards, making it ideal for use in environments requiring high durability, sunlight resistance, and safety certifications. Available in multiple colors with a ripcord for easy stripping, it supports reliable signal transmission in industrial settings.
ALPHA WIRE 510060CSL005 Shielded Cable Specifications:
- Conductor: 24 AWG Tinned Copper
- Insulation Wall Thickness: 0.010 inches, PVC
- Insulation Temperature Range: -35°C to 105°C
- Voltage Rating: 300 V
- Shield: Aluminum/Mylar Tape with 25% Overlap, Foil Facing In
- Shield Resistance: 11.6 Ω/1000ft at 20°C
- Core Wrap: Nonwoven Polyester Tape, 25% Overlap
- Outer Jacket Wall Thickness: 0.032 inches, PVC
- Jacket Colors: Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Ripcord: 810 Denier Nylon at one end
- Minimum Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 215 Lbs.
- Temperature Range: -35°C to 105°C
- Sunlight Resistance: Yes
- Certifications: UL Listed, CSA Certified, CE Compliant
- Environmental Standards: RoHS 2, REACH, EU Low Voltage Directive
Buy the AlphaWire 5100/60C – Reliable Shielded Cable for Industrial Applications
Purchase the AlphaWire 5100/60C shielded cable online today to benefit from high-quality construction, RoHS compliance, and reliable performance. Designed with 24 AWG tinned copper conductors, a PVC insulation wall of 0.010 inches, and a durable aluminum/mylar tape shield, this cable is ideal for industrial control, communication, and automation systems. It features a flexible core wrap, multiple color options, and a ripcord for easy installation. With certifications including UL, CSA, and CE, it meets strict safety and environmental standards, ensuring long-lasting, safe, and efficient operation in demanding environments.
Order your AlphaWire 5100/60C shielded cable today and ensure dependable signal integrity in your industrial projects with premium quality wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 510060CSL005?
You can click on the BUY or RFQ button to purchase 510060CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 510060CSL005?
You can download the 510060CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 510060CSL005?
ALPHA WIRE
