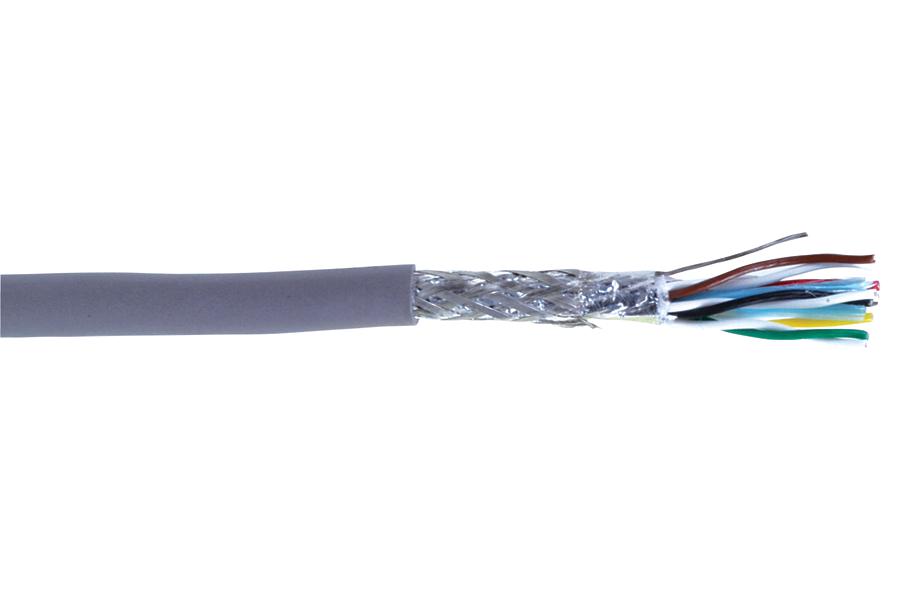

ALPHA WIRE 5271CSL005 Shielded Multi-Conductor Cable
This shielded multi-conductor cable features 24 AWG tinned copper conductors with PVC insulation and a flexible PVC jacket. Designed for durable, high-performance wiring, it offers a temperature range of -35°C to 105°C, a voltage rating of 300V, and excellent mechanical properties such as a 12.5 lbs pull tension and bend radius of 10x cable diameter. With 70% copper braid coverage, it ensures effective shielding against electromagnetic interference, suitable for industrial and electronic applications requiring reliable signal integrity and compliance with UL, CSA, and RoHS standards.
ALPHA WIRE 5271CSL005 Shielded Multi-Conductor Cable Specifications:
- Conductor Size: 24 AWG (7/32) Tinned Copper
- Insulation Wall Thickness: 0.010" PVC, Semi Rigid
- Cable Jacket Thickness: 0.032" PVC, Nominal
- Shielding: Tinned Copper Braid 70% coverage, AIP/A tape with drain wire
- Outer Diameter: 0.184" (max 0.194")
- Temperature Range: -35°C to 105°C
- Voltage Rating: 300 V
- Bend Radius: 10x cable diameter
- Pull Tension: 12.5 lbs (max)
- Capacitance: 35 pF/ft @1 kHz, 63 pF/ft @1 kHz
- Mutual Capacitance: 35 pF/ft, Ground Capacitance: 63 pF/ft
- Characteristic Impedance: 540 Ohms
- Inductance: 0.19 µH/ft
- Conductor DCR: 25 Ω/1000 ft
- Outer Shield DCR: 6.5 Ω/1000 ft
- Applicable Standards: UL, CSA, RoHS, EN 60332-1, EN 60332-2, UL Style 2464, 105°C / 300V
Buy the AlphaWire Series Shielded Cable: 5271C
Purchase the AlphaWire Series 5271C shielded multi-conductor cable online today and benefit from its durable construction, excellent shielding with 70% coverage, and compliance with international safety standards. Ideal for industrial, automation, and electronic applications, this cable provides optimal signal integrity, excellent flexibility, and a temperature range of -35°C to 105°C. With UL, CSA, and RoHS certifications, it guarantees safety, environmental compliance, and long-lasting performance. Reliable, easy to install, and suitable for demanding environments—order now and secure your wiring needs efficiently.
Order your AlphaWire Series 5271C shielded cable today and ensure reliable, high-performance wiring for your industrial or electronic projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5271CSL005?
You can click on the BUY or RFQ button to purchase 5271CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5271CSL005?
You can download the 5271CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5271CSL005?
ALPHA WIRE
