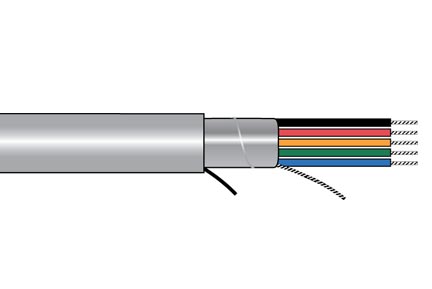

ALPHA WIRE 54302SL005 Shielded Control Cable
The product is a high-quality shielded cable assembly with 18 AWG conductors, PVC insulation, and multiple color options. It features a nonwoven polyester core wrap, alum/mylar foil shielding, and a PVC jacketing with a 0.063" wall. Suitable for various electrical applications, it offers excellent resistance to oil, flame, and environmental factors, with a temperature range of -30°C to 105°C. The cable supports a voltage rating of 600 V and has low capacitance and impedance, making it ideal for industrial and control systems.
ALPHA WIRE 54302SL005 Shielded Control Cable Specifications:
- Conductors: 18 AWG (16/30) TC, 0.047" diameter
- Insulation: PVC, 0.032" wall thickness
- Jacket: PVC, 0.063" wall, colors include Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Shield: Alum/Mylar tape with foil facing in, drain wire 18 (16/30) AWG TC
- Overall Diameter: Approximately 0.356" (max 0.374")
- Temperature Range: -30°C to 105°C
- Voltage Rating: 600V
- Capacitance: 39 pf/ft @1 kHz, conductor to conductor
- Ground Capacitance: 70 pf/ft @1 kHz
- Impedance: 580 ohms
- Inductance: 0.22 pH/ft
- Conductor DCR: 7.2 ohms per 1000 ft @20°C
- Shield DCR: 6.1 ohms per 1000 ft @20°C
- Pull Tension: Max 38 lbs
- Bend Radius: 10X cable diameter
- Lengths: 1000 ft, 500 ft, 100 ft, made-to-order in bulk
- Certifications: UL, CSA, CE, RoHS, REACH, Prop 65
Buy the AlphaWire Series Shielded Cable: 5430/2
Order AlphaWire 5430/2 shielded control cable online today — engineered for durability and high performance. Featuring 18 AWG conductors with PVC insulation, alum/mylar shielding, and a tough PVC jacket, this cable is suitable for industrial control systems requiring high voltage ratings and excellent environmental resistance. With a temperature range from -30°C to 105°C and rated for 600V, it ensures reliable operation. Available in multiple colors and lengths, purchase now for quick delivery and quality guaranteed for your electrical installations.
Get AlphaWire 5430/2 today—built for precision, durability, and reliable electrical performance in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 54302SL005?
You can click on the BUY or RFQ button to purchase 54302SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 54302SL005?
You can download the 54302SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 54302SL005?
ALPHA WIRE
