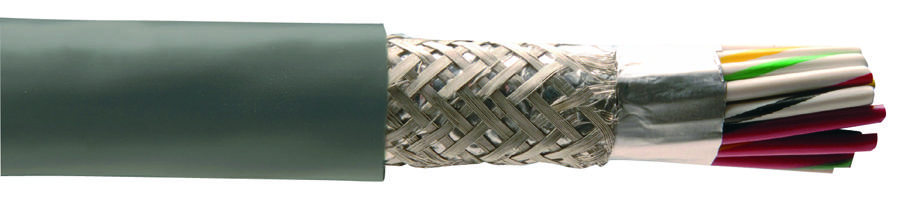

ALPHA WIRE 5524SL001 Multi-Conductor Cable
The product is a premium multi-conductor cable designed for demanding industrial applications. Constructed with 18 AWG tinned copper conductors and flexible PVC insulation, it features a cabled assembly with four twisted components, enhanced shielding with braid and foil tape, and a durable jacket in various colors like Black, Blue, and Yellow. The cable supports 600V voltage, operates within -30°C to 105°C temperature range, and complies with UL, CSA, CE, REACH, and RoHS standards. Its robust design ensures high electrical performance, flexibility, and environmental safety in complex electrical installations.
ALPHA WIRE 5524SL001 Multi-Conductor Cable Specifications:
- Conductor: 18 AWG (16/30) Tinned Copper
- Insulation Wall Thickness: 0.032 inches, PVC
- Jacket Wall Thickness: 0.063 inches, PVC
- Temperature Range: -30°C to 105°C
- Voltage Rating: 600V
- Shielding: Tinned Copper Braid, 70% coverage, Foil Tape
- Core Twist Rate: 4 twists per foot
- Covering: Nonwoven Polyester Tape with 25% overlap
- Color Options: Black, Blue, Green, Yellow, Red, White, among others
- Max Cable Lengths: 1000 ft, 500 ft, 100 ft spools
- Flammability: UL 94V-0
- Mechanical: Pull tension up to 68 lbs, Bend radius 10x cable diameter
- Electrical: Capacitance 36 pF/ft @1kHz, Ground Capacitance 65 pF/ft, Inductance 0.22 μH/ft
- Certifications: UL, CSA, CE, RoHS, REACH compliant
- Environmental: UV and oil resistant, suitable for outdoor use
Buy the Buy Alpha Wire Cable Part Number 5524SL001 Online
Secure your electrical installations with Alpha Wire’s high-quality multi-conductor cable, featuring 18 AWG tinned copper conductors, PVC insulation, and superior shielding. Designed for 600V applications, it operates reliably between -30°C to 105°C, ensuring safe and efficient power transmission. Its flexible construction and durable outer jacket make it ideal for challenging environments. Jumpstart your project today by purchasing online and enjoy fast, convenient delivery, guaranteed compliance with industry standards, and a trusted brand commitment to quality and safety.
Buy Alpha Wire 5524SL001 now and experience unmatched reliability and performance for demanding industrial electrical systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5524SL001?
You can click on the BUY or RFQ button to purchase 5524SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5524SL001?
You can download the 5524SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5524SL001?
ALPHA WIRE
