ALPHA WIRE 58124SL001 Shielded Control Cable
This shielded 20 AWG cable features a PVC insulation with a 0.008-inch wall, designed for plenum-rated applications. It includes four twisted components, aluminum/mylar shielding with 25% overlap, and a drain wire for effective shielding. The outer jacket has a 0.015-inch PVC wall, also plenum-rated, providing durability and safety in complex wiring environments. With a voltage rating of 300 V AC and excellent electrical properties, this cable is suitable for controlling and signal transmission in industrial and commercial applications, ensuring compliance with UL, CSA, and RoHS standards.
ALPHA WIRE 58124SL001 Shielded Control Cable Specifications:
- Conductor: 20 AWG BC, 7/.0121 diameter
- Insulation: 0.008-inch PVC, plenum-rated
- Jacket: 0.015-inch PVC, plenum-rated, color Slate
- Shield: Alum/Mylar tape, 25% overlap, foil facing out, drain wire: 22 AWG TC
- Voltage Rating: 300 V AC
- Capacitance: 55 pF/ft @1 kHz
- Ground Capacitance: 99 pF/ft @1 kHz
- Inductance: 0.16 μH/ft
- Conductor DCR: 10.5 Ω/1000 ft @20°C
- Bend Radius: 10 times cable diameter
- Pull Tension: 38 lbs max
- Temperature Range: -5°C to +75°C
- Length options: 1000 ft and 500 ft spools

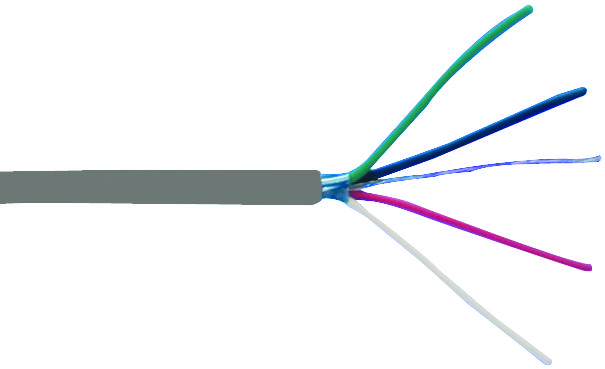

Buy the Buy Alpha Wire Part Number 58124SL001 Online
Purchase the Alpha Wire 58124SL001 shielded control cable online and benefit from fast shipping, competitive pricing, and trusted quality. This versatile 20 AWG cable with PVC insulation and aluminum/mylar shielding offers dependable electrical performance for control and signal applications. It complies with UL, CSA, and RoHS standards, making it suitable for complex wiring environments requiring high safety and durability. Whether for industrial automation or building wiring, buy this plenum-rated cable now and ensure your project’s success.
Order your Alpha Wire 58124SL001 shielded control cable today and ensure reliable performance in your industrial wiring projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 58124SL001?
You can click on the BUY or RFQ button to purchase 58124SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 58124SL001?
You can download the 58124SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 58124SL001?
ALPHA WIRE
