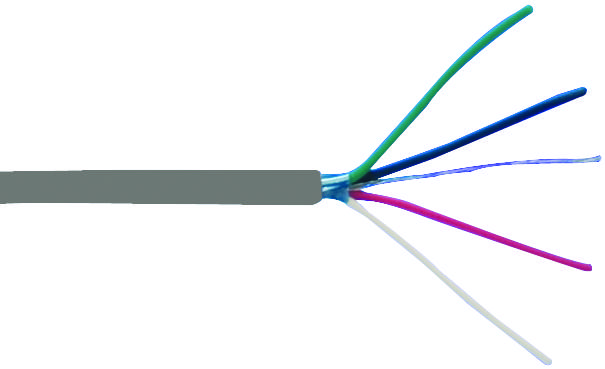

ALPHA WIRE 58431SL001 Control Cable
This shielded control cable features 18 AWG conductors with PVC insulation and plenum-rated jackets, ideal for complex electronic and instrumentation applications. It includes a foil shield with drain wire, ensuring excellent noise reduction and EMI/RFI shielding. The cable's constructed for environments requiring high safety standards, including UL and CSA certifications, and adheres to RoHS and REACH compliance directives. Its physical properties include a temperature range of -5°C to 75°C, and it supports voltage ratings up to 300 V, making it suitable for many industrial and electronic control systems. Durable and reliable, this cable ensures safe and interference-free transmissions.
ALPHA WIRE 58431SL001 Control Cable Specifications:
- Conductors: 18 AWG, 7/.0152 inch diameter, Copper
- Insulation: PVC, 0.009 inch wall, plenum-rated
- Jacket: PVC, 0.015 inch wall, plenum-rated, color Slate
- Shielding: Aluminum/Mylar tape with 25% overlap, foil facing out, drain wire 22 AWG TC
- Temperature Range: -5°C to 75°C
- Voltage Rating: 300 V
- Capacitance: 67 pF/ft @1 kHz (conductor to conductor), 121 pF/ft @1 kHz (ground to shield)
- Impedance: 320 ohms
- Inductance: 0.15 µH/ft
- Conductor DCR: 6.6 Ω/1000 ft @20°C
- Shield DCR: 11.7 Ω/1000 ft @20°C
- Bend Radius: 10 times the cable diameter
- Pull Tension: 31 lbs maximum
- Length Options: 1000 ft and 500 ft continuous spools
- Certifications: UL Listed, CSA Certified, RoHS, REACH compliant
Buy the Buy Alpha Wire Control Cable Part Number 58431SL001 Online
Purchase Alpha Wire control cable 58431SL001 online for reliable, shielded signal transmission. Engineered with 18 AWG conductors, PVC insulation, foil shields, and plenum-rated jackets, this cable meets UL and CSA standards and complies with RoHS and REACH directives. Ideal for industrial and electronic control systems, it offers excellent EMI/RFI shielding, durable construction, and optimal performance across temperatures from -5°C to 75°C. Easy to install with a 10x bend radius, ensuring longevity and interference-free operation in complex industrial environments.
Get Alpha Wire control cable 58431SL001 today—designed for high performance and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 58431SL001?
You can click on the BUY or RFQ button to purchase 58431SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 58431SL001?
You can download the 58431SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 58431SL001?
ALPHA WIRE
