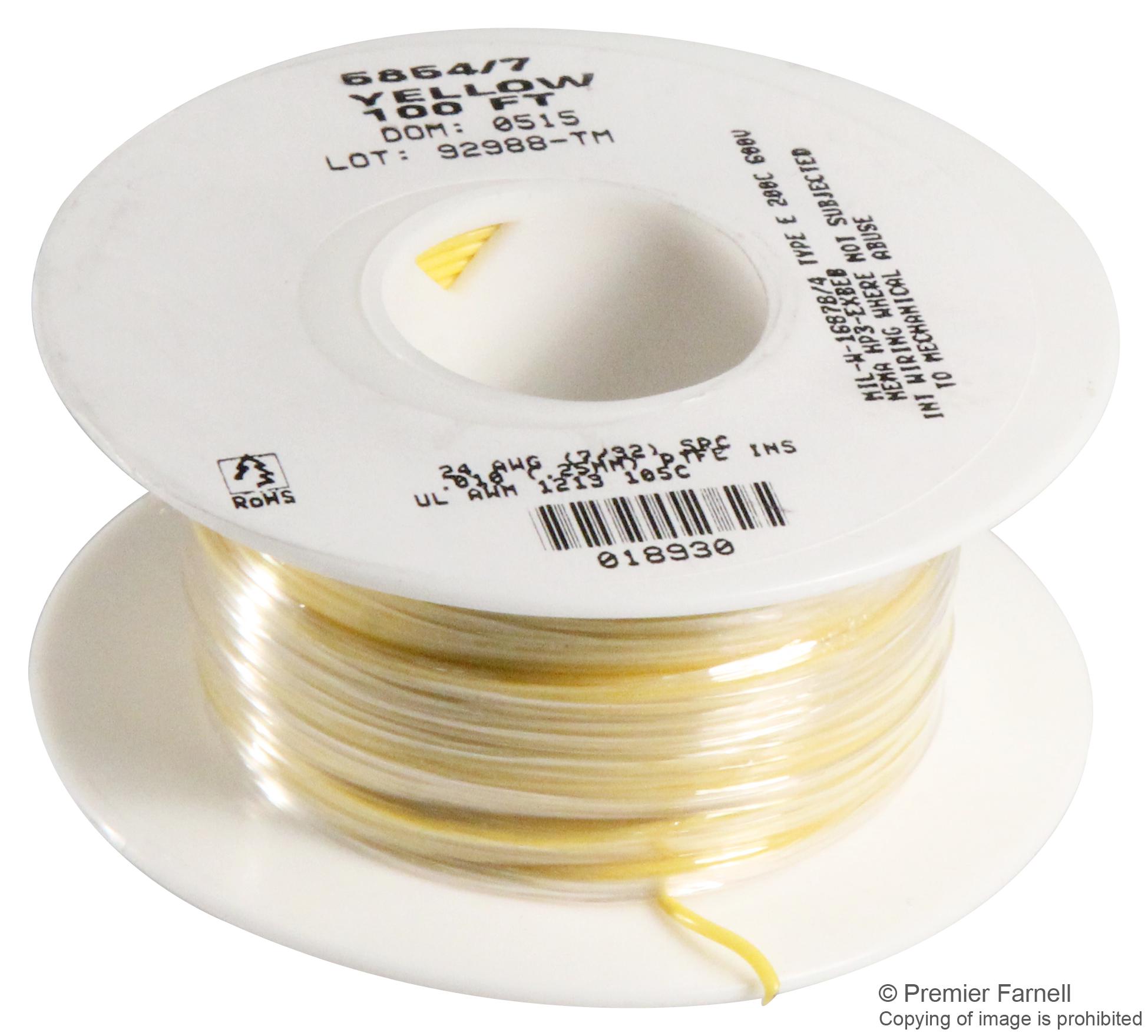

ALPHA WIRE 58547YL005 Hook-up Wire
The 5854/7 YL005 is a 100-foot hook-up wire with stranded silver-plated copper conductors and PTFE insulation, ideal for control cabinets, machine tools, high-temp ovens, and off-road equipment. It offers excellent durability against wear, abrasion, and chemicals, maintaining stable electrical properties at temperatures from -60°C to 200°C. Compliant with MIL-W-16878E Type E standards, it includes NEMA HP3-EXBEB compatibility, features a maximum pull tension of 3.5 pounds, and has a nominal inductance of 0.05µH per foot. Suitable for aerospace, defense, military, and automotive uses.
ALPHA WIRE 58547YL005 Hook-up Wire Specifications:
- Conductor Material: Silver-plated copper
- Insulation: PTFE (Polytetrafluoroethylene)
- Insulation Wall Thickness: 0.010 inches
- Conductor Diameter: 24 AWG SPC (0.024 inches)
- Maximum Temperature: 200°C (392°F)
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Pull Tension: 3.5 pounds maximum
- Inductance: 0.05 µH/ft
- Conductor Resistance: 23.6 Ω/1000 ft @20°C
- Length: 100 feet per spool, multiple pieces possible
- Compliance: MIL-W-16878/4 (Type E), UL JAWM/Style 1213, VW-1
- Environmental: RoHS compliant, free of hazardous substances
- Applications: Control cabinets, machine tools, high-temperature environments, aerospace, defense, automotive
- Wire Dimensions: 6.5 x 2 x 1.9 mm (spool), 2.75 x 1 x 1.125 mm (continuous)
- Certifications: UL Listed, MIL-Standard
- Material Compatibility: Oils, solvents, chemicals resistant
Buy the AlphaWire Series 5854/7 Hook-up Wire: 5854/7
Order the AlphaWire 5854/7 hook-up wire online today for your control panels, industrial machinery, or aerospace applications. With its PTFE insulation and silver-plated copper conductors, this 100-foot spool offers superior durability, flexibility, and resistance to high temperatures, chemicals, and abrasion. Perfect for demanding environments like machine tools, ovens, or off-road equipment, it ensures stable electrical performance and easy handling. Trust AlphaWire’s quality and get your wiring needs fulfilled quickly and effortlessly online.
Get AlphaWire 5854/7 hook-up wire today—built for high-temperature environments, chemical resistance, and reliable electrical connections.
Frequently Asked Questions
Where can I buy ALPHA WIRE 58547YL005?
You can click on the BUY or RFQ button to purchase 58547YL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 58547YL005?
You can download the 58547YL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 58547YL005?
ALPHA WIRE
