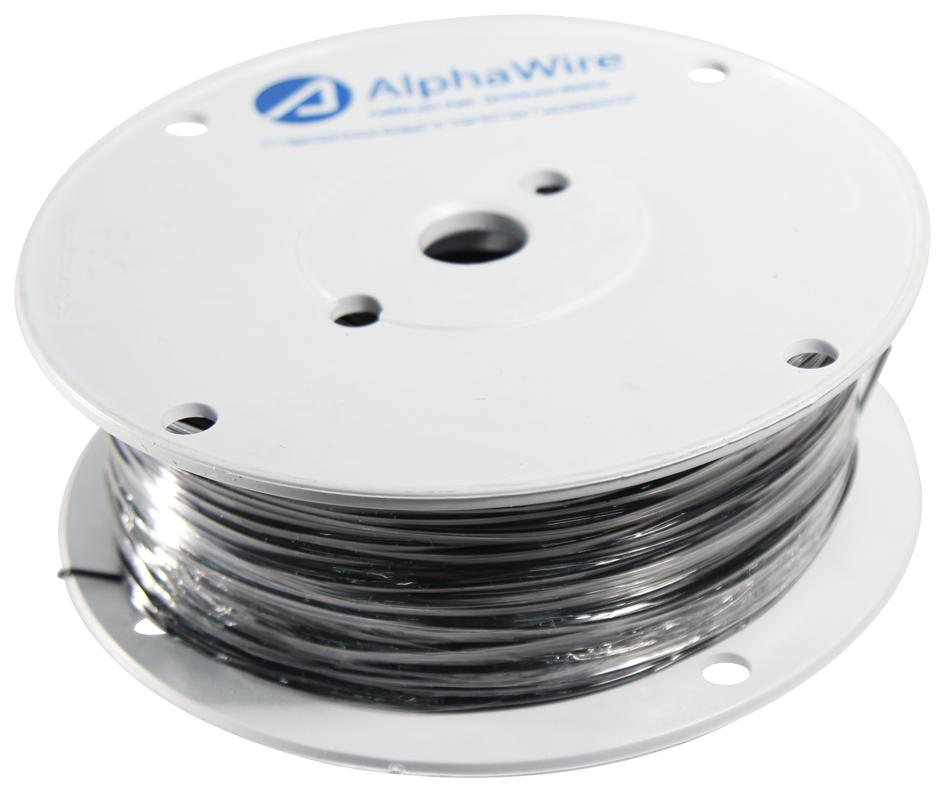

ALPHA WIRE 5856BK001 Control Wire
The 5856 BK001 is a 1000-foot hook-up wire featuring a stranded silver-plated copper conductor and PTFE insulation. Designed for control cabinets in protected environments, factory floor machinery, high-temperature ovens, and off-road equipment, it offers excellent resistance to wear, abrasion, oil, solvents, and chemicals. Compliant with MIL-W-16878E Type E standards and NEMA HP3-EXBGB, the wire ensures reliable electrical performance. It withstands a maximum pull tension of 9.6 lbs, with a temperature range of -60°C to 200°C, and a nominal inductance of 0.04 µH per foot, making it ideal for demanding industrial applications.
ALPHA WIRE 5856BK001 Control Wire Specifications:
- Conductor Material: Silver-plated copper, stranded
- Insulation Material: PTFE (Teflon), 0.010" wall
- Insulation Temperature Range: -60°C to 200°C
- Wire Length: 1000 ft (can be supplied in 3 pieces or continuous spool)
- Outer Diameter: 0.058 inches ± 0.004
- Color Options: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Gray, Violet, White/Blue
- Voltage Rating: 600 V AC/DC
- Inductance: 0.04 µH/ft (nominal)
- Conductor Resistance: 8.7 Ω/1000 ft at 20°C
- Maximum Pull Tension: 9.6 lbs
- Bend Radius: 10X cable diameter
- Standard Compliance: MIL-W-16878E Type E, NEMA HP3-EXBGB
- Environmental: RoHS 2 and China RoHS compliant, with no hazardous substances exceeding limits
- Physical: 1000 ft spool, dimensions vary
- Certification: UL, MIL, NEMA
Buy the Alpha Wire 5856 – Reliable Control Wiring for Industrial Applications
Order the Alpha Wire 5856 control wire online today to ensure reliable electrical connections in industrial control panels, automation systems, and machinery. This high-quality PTFE-insulated wire with a stranded copper conductor offers excellent resistance to heat, chemicals, and wear, making it perfect for demanding environments such as factory floors and high-temperature ovens. With easy handling, consistent electrical properties, and compliance with MIL and NEMA standards, this wire guarantees safe, durable, and efficient installations. Get your 1000-foot spool delivered quickly and keep your projects running smoothly.
Buy Alpha Wire 5856 now and experience unmatched durability, high temperature resistance, and compliance for demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5856BK001?
You can click on the BUY or RFQ button to purchase 5856BK001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5856BK001?
You can download the 5856BK001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5856BK001?
ALPHA WIRE
