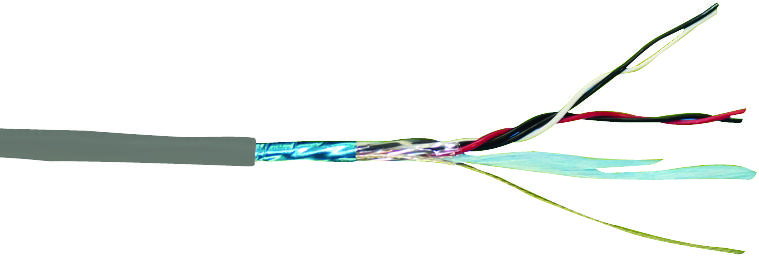

ALPHA WIRE 5905CSL002 Shielded Signal Cable
The 5905C shielded cable by Alpha Wire is designed for low-voltage signal transmission, offering features like flexible construction, high flexibility, and exceptional electrical performance. It supports UL and CSA standards, with a temperature range of -20°C to 80°C, and an overall diameter of approximately 0.273 inches. Capable of handling 300 V, this cable has a characteristic impedance of 75 ohms and minimal capacitance of 34 pF/ft at 1 kHz, making it ideal for reliable electrical and data transmission applications in industrial environments. It complies with RoHS 2 and REACH regulations, ensuring eco-friendly manufacturing.
ALPHA WIRE 5905CSL002 Shielded Signal Cable Specifications:
- Outer Diameter: approximately 0.273 inches (nominal)
- Temperature Range: -20°C to 80°C
- Voltage Rating: 300 V
- Capacitance: 34 pF/ft @ 1 kHz, Nominal
- Mutual Capacitance: 61 pF/ft @ 1 kHz, Nominal
- Inductance: 0.2 μH/ft, Nominal
- Characteristic Impedance: 75 ohms
- Conductor Material: Copper conductor
- Insulation: PVC, 0.032 inches wall thickness
- Shielding: Aluminum/Mylar tape with foil facing inward, min. overlap 25%
- Cable Length options: 1000 ft, 500 ft, 100 ft
- Certifications: UL, CSA, RoHS 2, REACH, CE
- Environmental compliance: Meets California Proposition 65 requirements
- Mechanical Properties: Bend radius 10x cable diameter, pull tension 46 lbs max
Buy the Buy AlphaWire 711 Lidgerwood Ave Part Number 5905C Online
Enhance your electrical systems with Alpha Wire’s high-performance 5905C shielded signal cable. This robust cable offers excellent electrical properties, including 75 ohms impedance and low capacitance, making it ideal for data and signal transmission in industrial environments. Its construction features high-quality copper conductors, PVC insulation, and aluminum/Mylar foil shielding for maximum EMI protection. Certified compliant with UL, CSA, RoHS, and REACH standards, it ensures safety, eco-friendliness, and durability. Available in various lengths, it provides a reliable solution for your professional wiring needs. Order online today to upgrade your projects with confidence.
Order your Alpha Wire 5905C shielded cable today and ensure high-quality, reliable signal transmission for your industrial projects with confidence.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5905CSL002?
You can click on the BUY or RFQ button to purchase 5905CSL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5905CSL002?
You can download the 5905CSL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5905CSL002?
ALPHA WIRE
