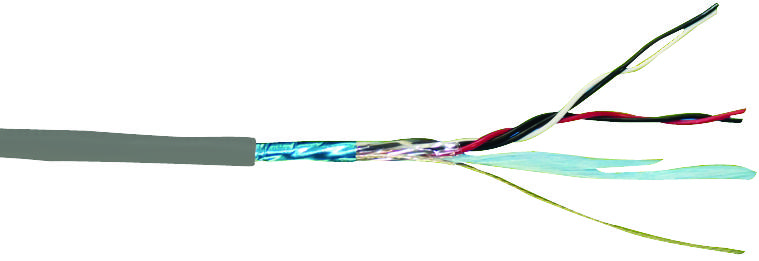

ALPHA WIRE 5905CSL005 Shielded Communication Cable
The 5905C SL005 is a 100-foot, four-pair foil-shielded communication and control cable featuring solid tinned copper conductors and PVC insulation. It includes an aluminum/polyester foil shield with a minimum of 25% overlap, with the foil facing inward, along with a stranded tinned copper drain wire of equal size to the conductors. Rated for a maximum pull tension of 46 pounds and approximately 34 ohms in characteristic impedance, it offers electrical properties like mutual capacitance of 34 pF/ft at 1 kHz, and a nominal inductance of 0.2 µH/ft. Its temperature range spans -20°C to 80°C, suitable for audio, data, automation, and industrial environments.
ALPHA WIRE 5905CSL005 Shielded Communication Cable Specifications:
- Conductor Material: Solid tinned copper
- Number of Pairs: 4
- Length: 100 feet
- Shielding: Aluminum/polyester foil with minimum 25% overlap, foil facing inward
- Drain Wire: Stranded tinned copper, same size as conductors
- Insulation Material: PVC
- Maximum Pull Tension: 46 pounds
- Characteristic Impedance: approximately 34 ohms
- Mutual Capacitance: 34 pF/ft at 1 kHz
- Inductance: 0.2 µH/ft
- Temperature Range: -20°C to 80°C
- Application Areas: Audio, communications, networking, computer peripherals, security, automation, sensing, instrumentation, industrial environments
Buy the Alpha Wire 5905CSL005 – Reliable Communication Cable for Industrial Applications
Order the Alpha Wire 5905CSL005 shielded communication cable online today for secure, reliable data transmission in industrial environments. Featuring four twisted pairs, a foil shield, tinned copper conductors, and PVC insulation, this cable ensures durability and high performance in toughest conditions. Its impedance and capacitance are optimized for audio and signal integrity, making it ideal for automation, networking, sensing, and control systems. With a length of 100 feet, it’s perfect for professional installations requiring high-quality shielded cabling designed to last and meet industry standards.
Buy Alpha Wire 5905CSL005 now and experience unmatched reliability and performance in industrial networking and automation projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5905CSL005?
You can click on the BUY or RFQ button to purchase 5905CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5905CSL005?
You can download the 5905CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5905CSL005?
ALPHA WIRE
