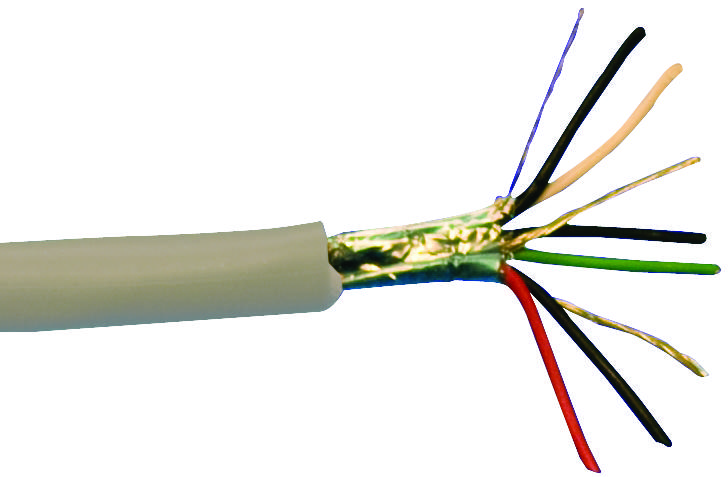

ALPHA WIRE 6024CSL005 Shielded Control Cable
The shielded control cable features a construction with individually twisted conductors, foil and mylar shielding, and a PVC jacket, making it suitable for signal and control applications. It complies with RoHS, CE, and REACH standards, ensuring environmental safety. The cable withstands temperatures from -20°C to 75°C, supports voltages up to 300V, and has a characteristic impedance of 599 ohms. Its physical dimensions include a 0.063-inch wall thickness for insulation and a 0.561-inch outer diameter, providing durability and flexibility in various industrial environments.
ALPHA WIRE 6024CSL005 Shielded Control Cable Specifications:
- Conductor Material: Copper
- Insulation: Polyvinyl chloride (PVC)
- Shielding: Foil and Mylar tape with drain wire
- Wall Thickness: 0.063 inches
- Outer Diameter: 0.561 inches (max 0.582 inches)
- Temperature Range: -20°C to 75°C
- Voltage Rating: 300V
- Impedance: 599 ohms
- Inductance: 0.18 µH/ft (nominal)
- Mutual Capacitance: 26 pF/ft @ 1 kHz
- Ground Capacitance: 47 pF/ft @ 1 kHz
- Conductor DCR: 7.3 Ω/1000 ft @20°C
- Shield Resistance: 9.1 Ω/1000 ft @20°C
- Physical Lengths Available: 100 ft, 500 ft, 1000 ft
- Operating Environment: Indoor, industrial control systems
- Compliance: RoHS, CE, REACH, UL, CSA
Buy the Alpha Wire Series 6024 Shielded Control Cable: 6024CSL005
Enhance your industrial control systems with the high-quality shielded control cable designed by Alpha Wire. Featuring twisted conductors, foil and mylar shielding, and a durable PVC jacket, this cable offers excellent electrical performance and environmental compliance. It supports voltages up to 300V, operates within -20°C to 75°C, and provides reliable impedance for signal integrity. Perfect for controlling machinery and instrumentation, order online today to secure fast delivery, superior quality, and the trusted reliability of Alpha Wire for your critical applications.
Order your Alpha Wire Series 6024 shielded control cable today and ensure reliable signal integrity for your industrial projects with top quality and compliance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6024CSL005?
You can click on the BUY or RFQ button to purchase 6024CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6024CSL005?
You can download the 6024CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6024CSL005?
ALPHA WIRE
