ALPHA WIRE 6036CSL005 Datasheet & Stock

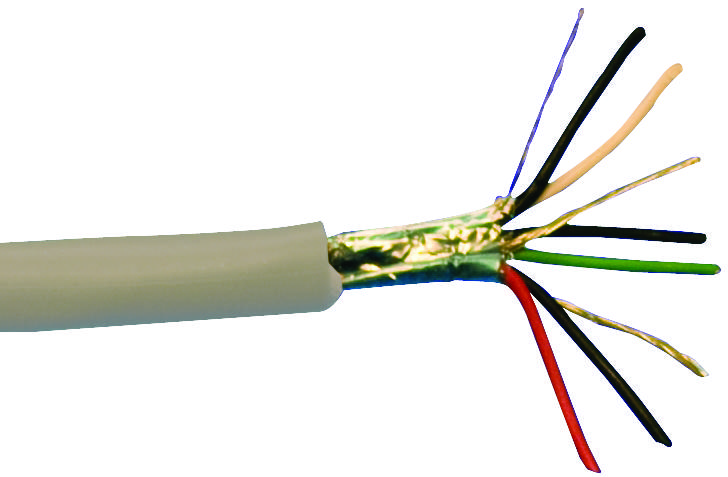

The 6036C SL005 is a 100-foot, six-pair foil-shielded communication and control cable. It features stranded tinned copper conductors with polypropylene insulation. Each pair is individually shielded with aluminum/polyester foil with a minimum 25% overlap, and the foil faces inward, complemented by a stranded tinned copper drain wire. The cable has a maximum pull tension of 138 pounds, a characteristic impedance of approximately 61 ohms, and an inductance of 0.18 microhenries per foot. It is suitable for a temperature range of -20°C to 75°C and is ideal for applications including audio, communications, networking, computer peripherals, security, automation, sensing, and industrial control systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6036CSL005?
You can click on the BUY or RFQ button to purchase 6036CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6036CSL005?
You can download the 6036CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6036CSL005?
ALPHA WIRE
