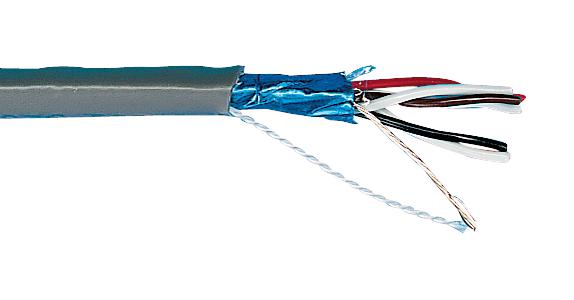

ALPHA WIRE 6062CSL005 Shielded Data Cable
This shielded cable features 18 AWG conductors with PVC insulation, twisted pairs, and foil shielding, suitable for electrical and data transmission applications. It operates within a temperature range of -20°C to 80°C, has a voltage rating of 300 V, and offers low capacitance and impedance for reliable signal integrity. The cable complies with UL, CSA, RoHS, REACH, and California Proposition 65 standards, making it ideal for industrial, control, and instrumentation uses where shielding and durability are essential.
ALPHA WIRE 6062CSL005 Shielded Data Cable Specifications:
- Conductors: 18 AWG, 16/30 Copper TC
- Insulation Wall Thickness: 0.016 inches, PVC material
- Jacket Wall Thickness: 0.043 inches, PVC
- Temperature Range: -20°C to 80°C
- Voltage Rating: 300 V
- Capacitance: 57 pf/ft @1 kHz, 103 pf/ft @1 kHz
- Impedance: 400 Ohms
- Inductance: 0.18 μH/ft
- Conductor DCR: 8.6 Ohms/1000 ft
- Shielding: Aluminum/Mylar foil with drain wire, foil facing in
- Twist Rate: 2X1 pair - 20 twists/foot, 2 components cabled - 16 twists/foot
- Size: 1000 ft, 500 ft, or 100 ft spools, dimensions approximately 20 x 11 x 8 inches
- Standards: UL (Type CM or AWM 2464, 75°C), CSA, RoHS, REACH, CE
Buy the Alpha Wire 6062C – Reliable Shielded Data Cable for Industrial Applications
Purchase Alpha Wire 6062C shielded data cable online today to ensure your industrial and control systems operate with maximum reliability. Designed with 18 AWG conductors, foil shielding, and PVC insulation, this cable provides optimal signal integrity, durability, and compliance with industry standards including UL, CSA, RoHS, and CE. Ideal for demanding environments, it offers excellent electrical properties, low capacitance, and a temperature range of -20°C to 80°C. Secure your inventory and experience fast delivery, trusted quality, and support for your projects.
Buy Alpha Wire 6062C now and experience unmatched reliability and performance with shielded construction for critical industrial data transmission.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6062CSL005?
You can click on the BUY or RFQ button to purchase 6062CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6062CSL005?
You can download the 6062CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6062CSL005?
ALPHA WIRE
