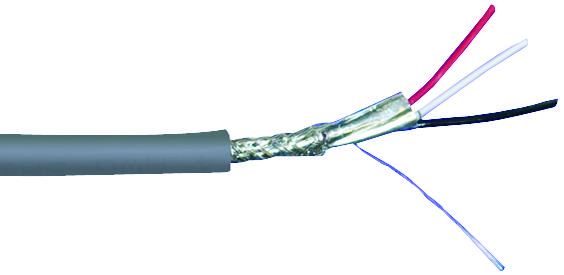

ALPHA WIRE 6343SL001 Shielded Control Cable
This shielded cable is constructed with 22 AWG twisted copper conductors, a PVC insulation wall, and a durable PVC jacket. It features a 5.3 twists per foot, aluminized mylar tape shield with 25% overlap, a drain wire, and a braid with 65% coverage, making it suitable for control and instrumentation applications. The cable complies with UL, CSA, and CE standards, with a temperature range of -20°C to 80°C, voltage rating of 300 V, and low capacitance. Ideal for sensitive electronic and industrial use, providing excellent shielding and flexibility.
ALPHA WIRE 6343SL001 Shielded Control Cable Specifications:
- Conductor: 22 AWG TC
- Insulation: 0.010" PVC semi
- Jacket: 0.032" PVC wall
- Shield: Alum/Mylar tape with 25% overlap, foil facing out
- Drain wire: 24 AWG TC
- Braid: TC, 65% coverage
- Twists per foot: 5.3
- Voltage Rating: 300 V
- Temperature Range: -20°C to 80°C
- Bend Radius: 10X cable diameter
- Pull Tension: 45 Lbs max
- Capacitance: 36 pF/ft @ 1 kHz
- Ground Capacitance: 65 pF/ft @ 1 kHz
- Inductance: 0.18 μH/ft
- Conductor DCR: 16.4 Ω/1000ft @20°C
- Shield DCR: 4.4 Ω/1000ft @20°C
Buy the AlphaWire 6343 U–Reliable Shielded Cable for Industrial Applications
Purchase the AlphaWire Shielded Control Cable online today to achieve superior electrical performance and protection in industrial environments. Featuring 22 AWG twisted copper conductors, a durable PVC insulation and jacket, and an aluminized mylar tape shield with 25% overlap, this cable guarantees excellent noise reduction and flexibility. Compliant with UL, CSA, and CE standards, it offers a temperature range of -20°C to 80°C, voltage rating of 300 V, and low capacitance. Ideal for sensitive control, instrumentation, and electronic applications requiring dependable shielding and durability.
Order your AlphaWire Series6343 shielded control cable today and ensure reliable performance for your industrial and electronic wiring needs.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6343SL001?
You can click on the BUY or RFQ button to purchase 6343SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6343SL001?
You can download the 6343SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6343SL001?
ALPHA WIRE
