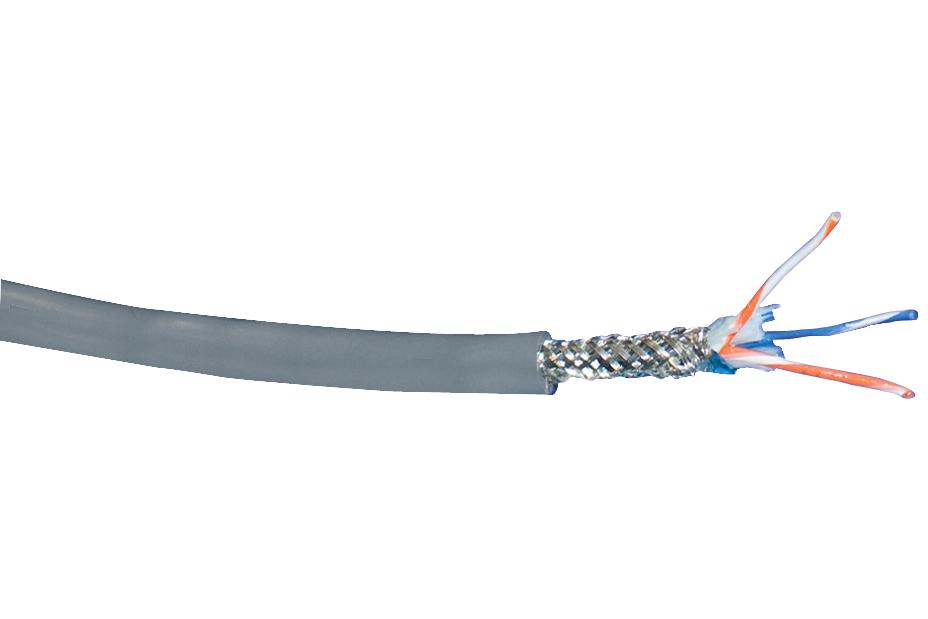

ALPHA WIRE 6377SL005 Shielded Communication Cable
The 6377 SL005 is a 100-foot, six-pair overall foil-braid shield communication and control cable designed for reliable data transmission in audio, networking, automation, and industrial applications. It features stranded tinned copper conductors, semi-rigid PVC insulation, and an aluminum/polyester foil shield with a minimum 25% overlap and foil facing outward. The cable includes a stranded tinned copper drain wire and a 65% coverage of tinned copper braid, supporting a maximum tension of 75 lbs. Operating from -20°C to 80°C, it ensures durability and high performance in various environments.
ALPHA WIRE 6377SL005 Shielded Communication Cable Specifications:
- Number of pairs: 6
- Cable length: 100 feet
- Conductor Material: Tinned Copper
- Number of conductors: 12 (6 pairs)
- Conductor Diameter: 22 AWG
- Insulation Material: PVC, semi-rigid
- Wall Thickness: 0.032 inches
- Shielding: Aluminum/polyester foil with 25% overlap, foil facing outward
- Drain Wire: Stranded tinned copper
- Shield Coverage: 65%
- Maximum Pull Tension: 75 pounds
- Characteristic Impedance: 70 ohms
- Operating Temperature Range: -20°C to 80°C
- Outer Diameter: Approx. 0.337 inches (max. 0.354 inches)
Buy the Buy AlphaWire 6377SL005 Part Number 6377SL005 Online
Enhance your projects with the AlphaWire 6377SL005 shielded communication cable, offering six pairs of tinned copper conductors, foil-braid shielding, and PVC insulation. Designed for high performance in industrial environments, it supports applications in automation, networking, audio, and instrumentation. With a maximum tension of 75 pounds and operating from -20°C to 80°C, this cable ensures durability, flexibility, and excellent signal integrity. Purchase online today to benefit from fast delivery and trusted quality for your critical connections.
Order your AlphaWire 6377SL005 multi-pair shielded communication cable today and ensure high-quality, reliable data transfer for industrial, networking, and control applications.
