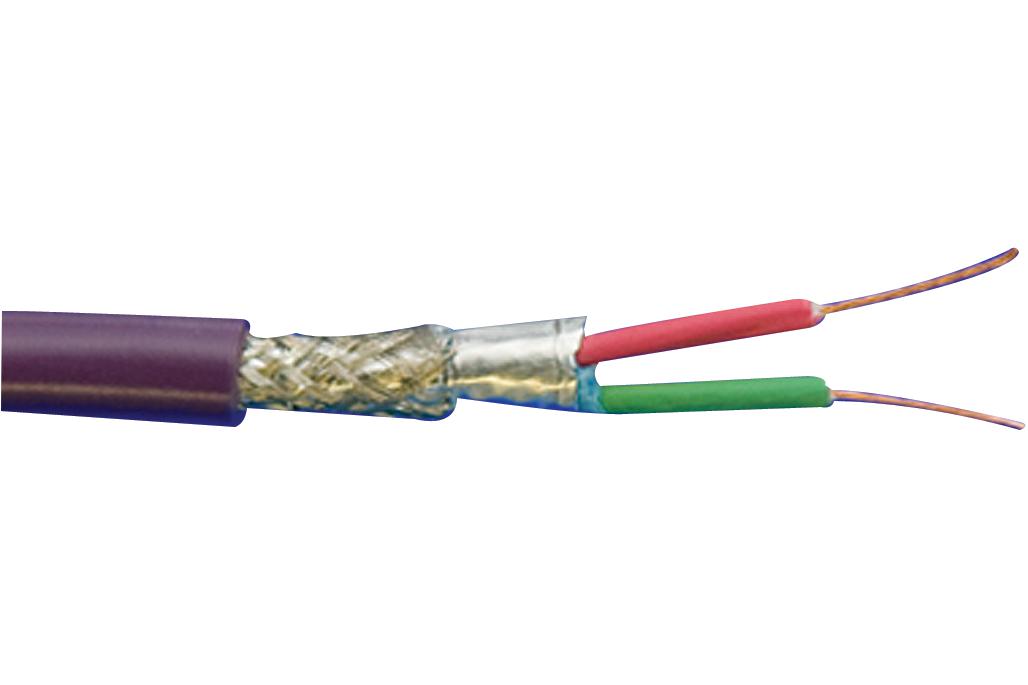

ALPHA WIRE 6462VI001 industrial data cable
The 6462 VI001 is a 1000-foot, single-pair, sunlight-resistant foil-braided shield data and bus cable. It features solid tinned copper conductors and foam high-density polyethylene insulation. The cable employs double braid and foil shielding to ensure maximum signal integrity and suitable run lengths. It offers reliable mechanical and electrical performance for various industrial automation protocols, including ControlNet™, RS-485, DeviceNet™, fieldbus, PROFIBUS™, and industrial twinax. Supporting a maximum current of 2.3A per conductor at 30°C and an impedance of 150 ohms, it operates effectively from -30°C to 75°C. Designed for communications, networking, automation, and industrial environments, this cable combines durability with high signal fidelity.
ALPHA WIRE 6462VI001 industrial data cable Specifications:
- Construction: Single-pair, foil-braided shield, solid tinned copper conductors, foam HDPE insulation
- Length: 1000 feet
- Shielding: Aluminum/Mylar foil with 25% overlap, TC braid with 65% coverage
- Jacket: PVC, 0.042 inch wall, violet color
- Voltage Rating: 300 V
- Impedance: 150 ohms
- Operating Temperature: -30°C to +75°C
- Maximum Pull Tension: 14 pounds
- Maximum Current: 2.3A per conductor at 30°C
- Velocity of Propagation: 78%
- Mutual Capacitance: 8.5 pF/ft at 1 kHz
- Attenuation: Max 0.27 dB/100 ft at 200 kHz
Buy the Buy AlphaWire Data Cable Part Number 6462VI001 Online
Purchase the AlphaWire 6462VI001 industrial data cable online to ensure high-quality signal transmission in automation, networking, and communication systems. With a robust foil-braided shield, solid tinned copper conductors, and foam HDPE insulation, this 1000-foot cable provides excellent durability, maximum security against interference, and reliable electrical performance for critical industrial applications. Its UV-resistant jacket and operating temperature range of -30°C to 75°C make it suitable for harsh environments. Get this essential component today for seamless control and data transmission in your automation projects.
Buy AlphaWire 6462VI001 now and experience unmatched reliability and high signal integrity for industrial automation and networking applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6462VI001?
You can click on the BUY or RFQ button to purchase 6462VI001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6462VI001?
You can download the 6462VI001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6462VI001?
ALPHA WIRE
