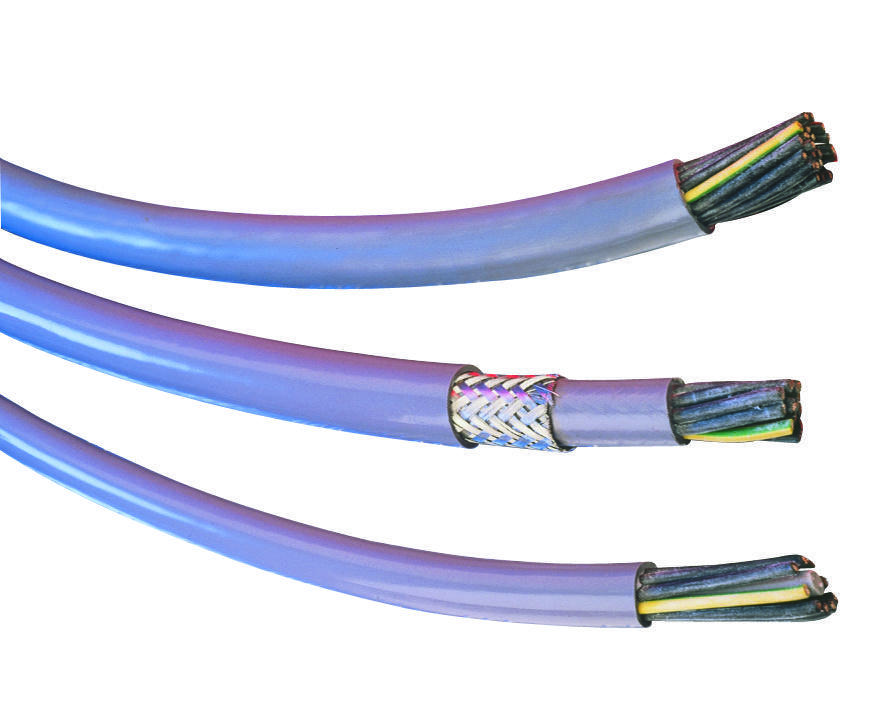

ALPHA WIRE 65007CYSL005 Control Cable
The 65007CY SL005 is a 7-conductor shielded cable with bare copper conductors and PVC insulation, designed for high-flex, motion control, and continuous-flex applications. It features an oil-resistant slate PVC jacket, a tinned copper braid shield with at least 85% coverage, and a rounded, liquid-tight geometry that meets IP67 and NEMA 6 standards. Supporting a maximum pull tension of 64 pounds, it offers reliable shielding, excellent durability, low capacitance of 67 pF/ft at 1 kHz, and inductance of 0.21 µH/ft, making it ideal for industrial automation and control systems.
ALPHA WIRE 65007CYSL005 Control Cable Specifications:
- Construction: 7-conductor, shielded cable with bare copper conductors and PVC insulation
- Conductor Size: 20 AWG (10/30), bare copper
- Insulation Wall Thickness: 0.022 inch, PVC, oil resistant
- Jacket Wall Thickness: 0.036 inch, PVC, oil resistant, slate color
- Shield: Tinned copper braid shield, 85% coverage, minimum
- Jacket Color: Slate
- Diameter: Approximately 0.311 inches (Jacket), 0.409 inches (Outer jacket with shield)
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Voltage Rating: 600V
- Pull Tension: Max 64 pounds
- Capacitance: 67 pF/ft at 1 kHz
- Inductance: 0.21 µH/ft
- DCR: Conductor 10.6 Q/1000 ft at 20°C, Shield 2.44 Q/1000 ft at 20°C
- Bend Radius: 5 times cable diameter
- Environmental Compliance: RoHS, CE, REACH
- Standards Compliance: UL JAWMSTYLE 2587, CSA AWM II A/B, FT1 90°C, 600V
Buy the Alpha Wire 65007CY – Reliable Control Cable for Industrial Applications
Enhance your industrial automation projects with the Alpha Wire 65007CY control cable. Featuring seven bare copper conductors, PVCh insulation, and an oil-resistant jacket, it ensures durability, flexibility, and reliable shielding for high-flex applications. Its tinned copper braid shield with over 85% coverage offers excellent electromagnetic interference protection. The rounded, liquid-tight design guarantees IP67 and NEMA 6 compliance, making it ideal for motion control, robotics, and machine wiring in challenging environments. Invest in quality control cables today for safe, efficient operations.
Buy Alpha Wire 65007CY control cable now and experience unmatched durability, shielding, and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65007CYSL005?
You can click on the BUY or RFQ button to purchase 65007CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65007CYSL005?
You can download the 65007CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65007CYSL005?
ALPHA WIRE
