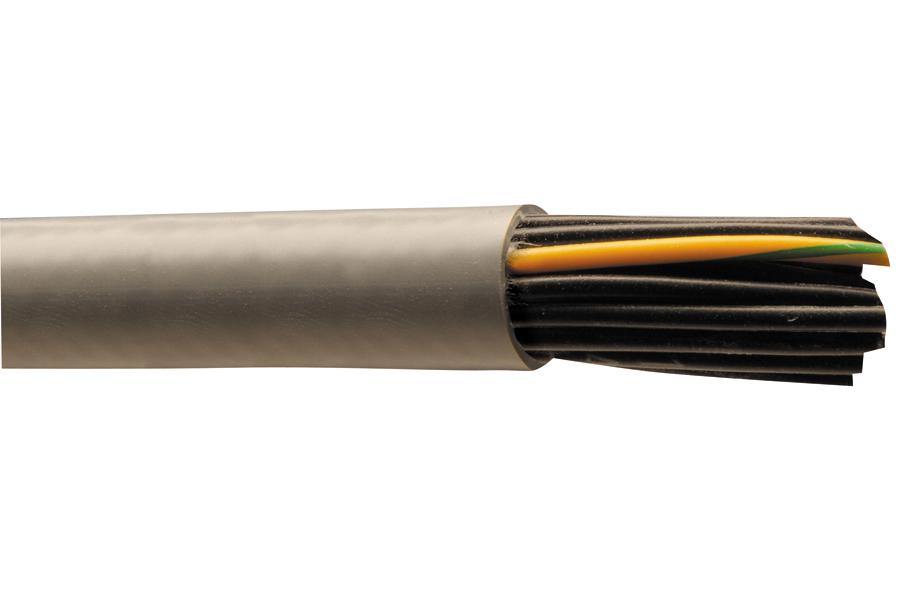

ALPHA WIRE 65025SL005 Control Cable
The 65025 SL005 is a 25-core unshielded cable featuring bare copper conductors and a lubricated PVC insulator. This multi-core, standard light-to-moderate flex cable is designed for high-flex, high-torsion, and continuous-flex applications like motion control. It has an oil-resistant slate PVC jacket, ensuring liquid-tight performance conforming to IP67 or NEMA 6 standards. With a maximum pull tension of 196 lbs, a nominal inductance of 0.21 µH per foot, and DC resistance of 10.9 milliohms per 1000 feet at 20°C, it is ideal for industrial automation, robotics, sensing, instruments, and automotive systems.
ALPHA WIRE 65025SL005 Control Cable Specifications:
- Number of Cores: 25
- Conductor Material: Bare copper
- Conductor Size: 20 (10/30) AWG
- Insulation Wall Thickness: 0.022 inches
- Insulation Material: PVC
- Jacket Thickness: 0.055 inches
- Jacket Material: PVC, oil resistant
- Jacket Color: Slate
- Maximum Pull Tension: 196 lbs
- Capacitance: 27 pF/ft @1 kHz
- Inductance: 0.21 µH/ft
- DC Resistance: 10.9 milliohms/1000 ft at 20°C
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Bend Radius: 5x Cable Diameter
- Voltage Rating: 600 V
- Applicable Standards: UL, CSA, CE
- Continuous Lengths: 100 ft, 500 ft, 1000 ft
Buy the AlphaWire 65025SL005 – Reliable Control Cable for Industrial Applications
Purchase the AlphaWire 65025SL005 control cable online today and enjoy dependable quality for your industrial projects. Featuring 25 unshielded copper conductors, oil-resistant PVC jacket, and high flexibility, this cable is optimized for motion control, automation, robotics, and sensing applications. With a maximum pull tension of 196 lbs, excellent mechanical durability, and conforming to IP67 or NEMA 6 standards, it ensures liquid-tight, long-lasting performance in challenging environments. Order now for fast delivery and trusted quality.
Order your AlphaWire Series65025SL005 control cable today and ensure reliable performance in industrial automation, robotics, sensing, and automotive systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65025SL005?
You can click on the BUY or RFQ button to purchase 65025SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65025SL005?
You can download the 65025SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65025SL005?
ALPHA WIRE
