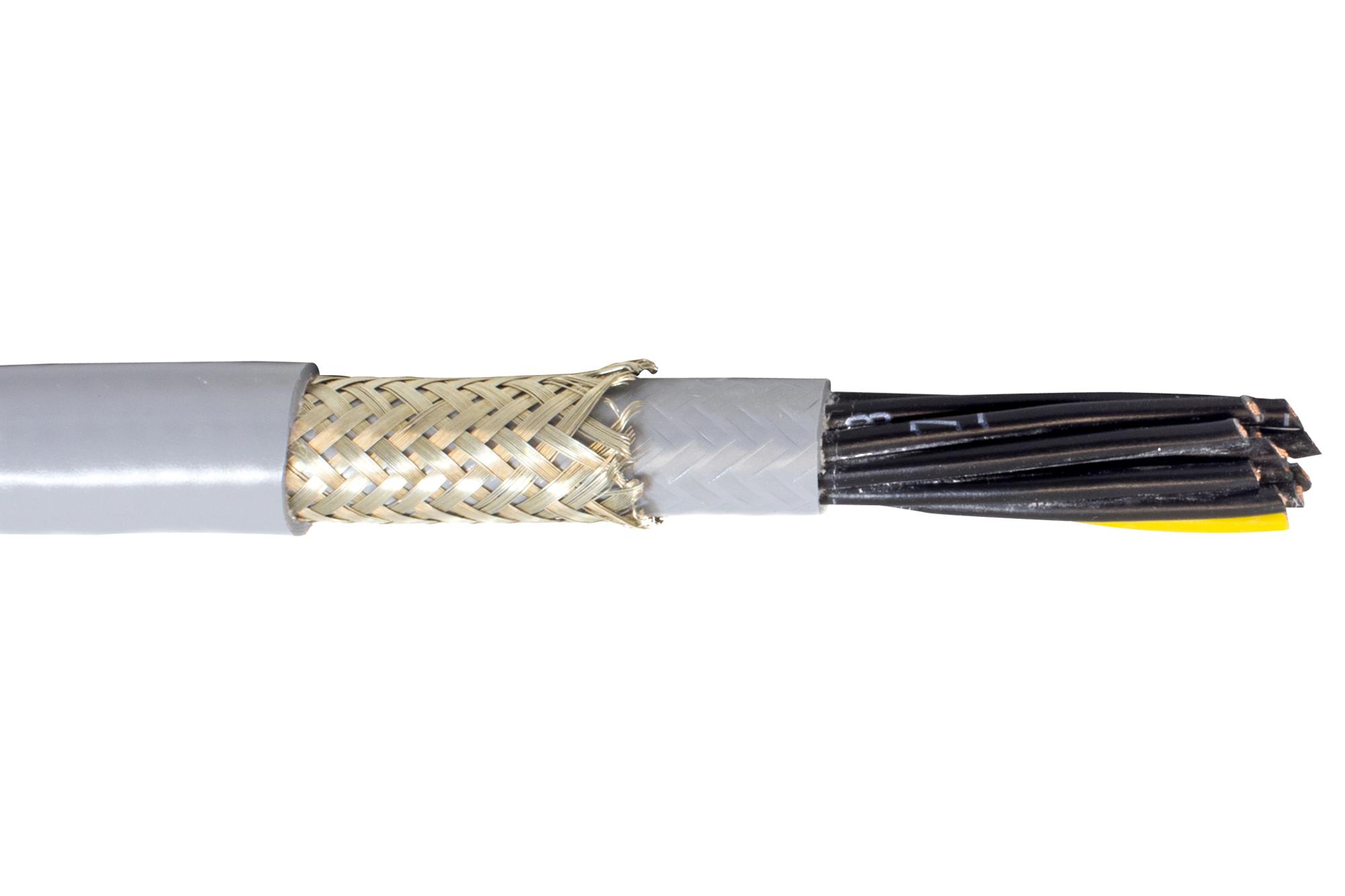

ALPHA WIRE 652425CYSL005 Flexible Control Cable
This flexible control cable features a Copper BRAID Shield with 85% coverage, designed for industrial environments requiring high flexibility and durability. It has a copper conductor, PVC insulation and jacket, oil-resistant properties, and meets UL and CSA standards for 90°C / 600V ratings. The cable is suitable for control systems, instrumentation, and automation where reliable electrical performance and environmental resistance are essential. Its flexible build supports complex routing, making it an ideal choice for demanding electrical applications in industrial settings.
ALPHA WIRE 652425CYSL005 Flexible Control Cable Specifications:
- Conductor: 24 AWG Bare Copper
- Insulation: PVC, 0.022" wall
- Jacket: PVC, 0.035" wall, oil resistant, SLATE color
- Shield: Copper braid, 85% coverage
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Voltage Rating: 600 V
- Capacitance: 27 pF/ft @1 kHz
- Ground Capacitance: 49 pF/ft @1 kHz
- Inductance: 0.24 μH/ft
- Conductor DCR: 23.6 Q/1000ft @20°C
- Shield DCR: 1.55 Q/1000ft @20°C
- Bend Radius: 5X cable diameter static and dynamic
- Pull Tension: 104 lbs maximum
- Flange dimensions vary: 30 x 14 x 12 inches for 1000 ft spool, 24 x 14 x 12 inches for 500 ft spool, 16 x 11 x 8 inches for 100 ft spool
Buy the Alpha Wire 652425CY – Reliable Flexible Control Cable for Industrial Applications
Enhance your industrial wiring projects with the high-quality Alpha Wire 652425CY flexible control cable. This UL and CSA compliant cable features a Copper braid shield for EMI protection, PVC insulation and jacket for oil resistance, and can withstand temperatures up to 90°C at 600V. Its flexibility supports complex routing, making it perfect for control panels, automation systems, and instrumentation. With a durable design and easy installation, you can confidently power demanding industrial environments and ensure long-term operational reliability. Buy online today for guaranteed quality and prompt delivery.
Order your Alpha Wire 652425CY flexible control cable today and ensure your industrial control systems operate with consistent reliability and environmental resistance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 652425CYSL005?
You can click on the BUY or RFQ button to purchase 652425CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 652425CYSL005?
You can download the 652425CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 652425CYSL005?
ALPHA WIRE
