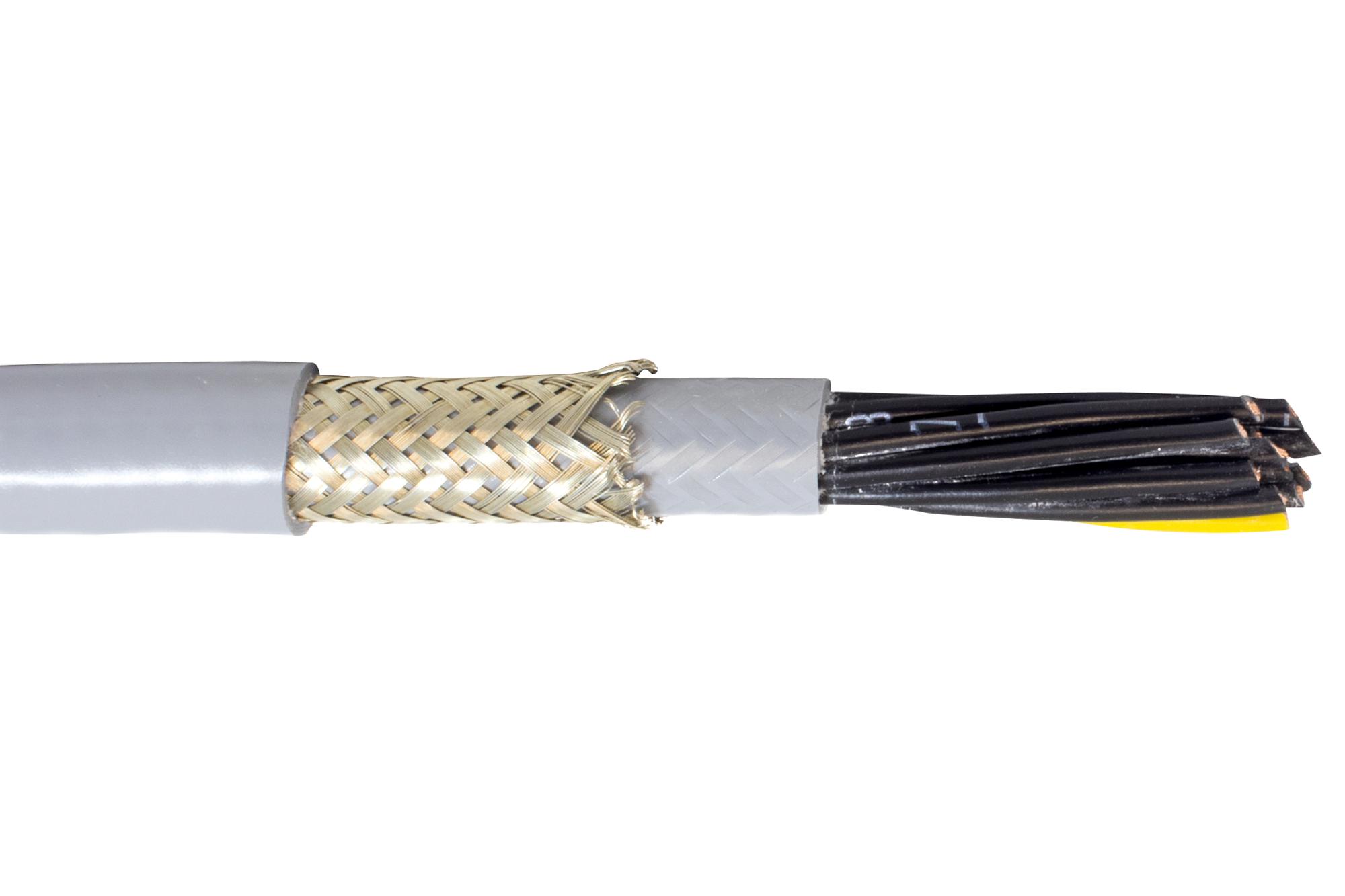

ALPHA WIRE 65244CYSL005 Control Cable
The 65244CY control cable by Alpha Wire is a flexible, oil-resistant PVC jacketed cable suitable for industrial automation. It features 24 AWG bare copper conductors, a copper braid shield with 85% coverage, and multiple insulation layers. Certified to UL and CSA standards, it operates within a temperature range of -40°C to 90°C, with a voltage rating of 600V. Designed for reliable signal transmission, this cable is ideal for control panel wiring, instrumentation, and automation systems requiring durability and flexibility in challenging environments.
ALPHA WIRE 65244CYSL005 Control Cable Specifications:
- Conductor Material: Bare Copper, 24 AWG
- Insulation Wall Thickness: 0.022 inches, PVC
- Jacket Thickness: 0.030 inches, PVC, Oil Resistant
- Shield: Copper braid, 85% coverage
- Jacket Color: Slate
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Voltage Rating: 600V
- Capacitance: 27 pF/ft @ 1 kHz, conductor to conductor
- Ground Capacitance: 49 pF/ft @ 1 kHz
- Inductance: 0.24 μH/ft
- Conductor DCR: 23.6 Ω/1000 ft @ 20°C
- Shield DCR: 3.4 Ω/1000 ft @ 20°C
- Bend Radius: 8X cable diameter
- Pull Tension: 20.7 lbs
- Cable Lengths Available: 1000 ft, 500 ft, 100 ft
Buy the Alpha Wire Series Control Cable: 65244CY
Secure your automation projects with Alpha Wire control cable 65244CY. This flexible, oil-resistant PVC cable with copper braid shield ensures reliable signal transmission in harsh environments. It meets UL and CSA standards, featuring 24 AWG copper conductors, a temperature range of -40°C to 90°C, and a voltage rating of 600V. Ideal for control panels, instrumentation, and automation systems, this durable cable offers superior shielding and insulation for optimal performance and longevity. Order online today for fast delivery and trusted quality.
Buy Alpha Wire 65244CY control cable now and experience unmatched reliability and performance in industrial automation and control installations.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65244CYSL005?
You can click on the BUY or RFQ button to purchase 65244CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65244CYSL005?
You can download the 65244CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65244CYSL005?
ALPHA WIRE
