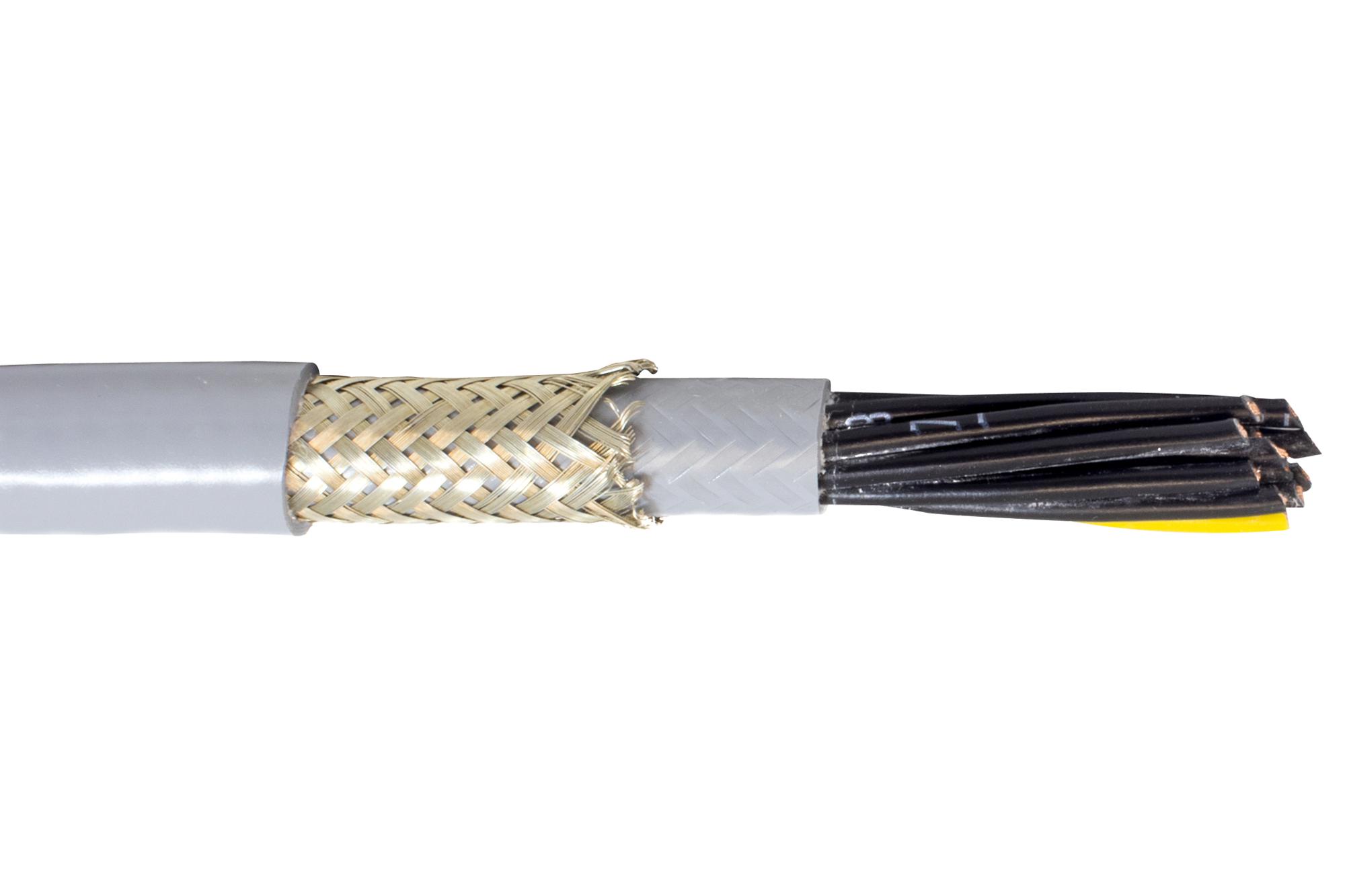

ALPHA WIRE 65247CYSL005 Control Cable
This high-quality control cable features 24 AWG bare copper conductors with a PVC insulation and oil-resistant jacket, suitable for industrial automation and wiring applications. It complies with UL, CSA, CE, and RoHS standards, ensuring safety and environmental compliance. The cable supports a voltage rating of 600V, a temperature range from -40°C to 90°C static, and from -5°C to 90°C dynamic. Its flexible construction with an 85% tinned copper braid shield provides excellent durability, with specific diameters and bend radius for installation in demanding environments.
ALPHA WIRE 65247CYSL005 Control Cable Specifications:
- Conductor: 24 AWG Bare Copper
- Insulation: PVC, Oil resistant, 0.022 inch wall thickness
- Jacket: PVC, Oil resistant, 0.035 inch wall
- Shield: Tinned Copper Braid, 85% coverage
- Diameter: approximately 0.068 inch (conductor), 0.272 inch overall
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Voltage Rating: 600V
- Conductor DCR: 23.6 Ω/1000ft @20°C
- Shield DCR: 2.21 Ω/1000ft @20°C
- Bend Radius: 5X Cable diameter
- Tensile Strength: Max. pull tension 35 Lbs.
- Compliance: UL, CSA, CE, RoHS, REACH
- Environmental: Flame retardant UL 94V-0
- Cable Length Options: 1000 ft, 500 ft, 100 ft
Buy the Alpha 65247CY – Reliable Control Cable for Industrial Applications
Order Alpha Wire control cable 65247CY online now and ensure optimal performance for your industrial and automation wiring needs. This control cable features 24 AWG bare copper conductors with PVC insulation that resists oil and environmental factors. It is rated for 600V and temperatures up to 90°C, ensuring safety and reliability in demanding conditions. With UL, CSA, CE, and RoHS compliance, this flexible cable boasts an 85% tinned copper braid shield for durability. Affordable and easy to source online, it’s perfect for professional installers and engineers seeking consistent quality.
Get Alpha Wire 65247CY today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65247CYSL005?
You can click on the BUY or RFQ button to purchase 65247CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65247CYSL005?
You can download the 65247CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65247CYSL005?
ALPHA WIRE
