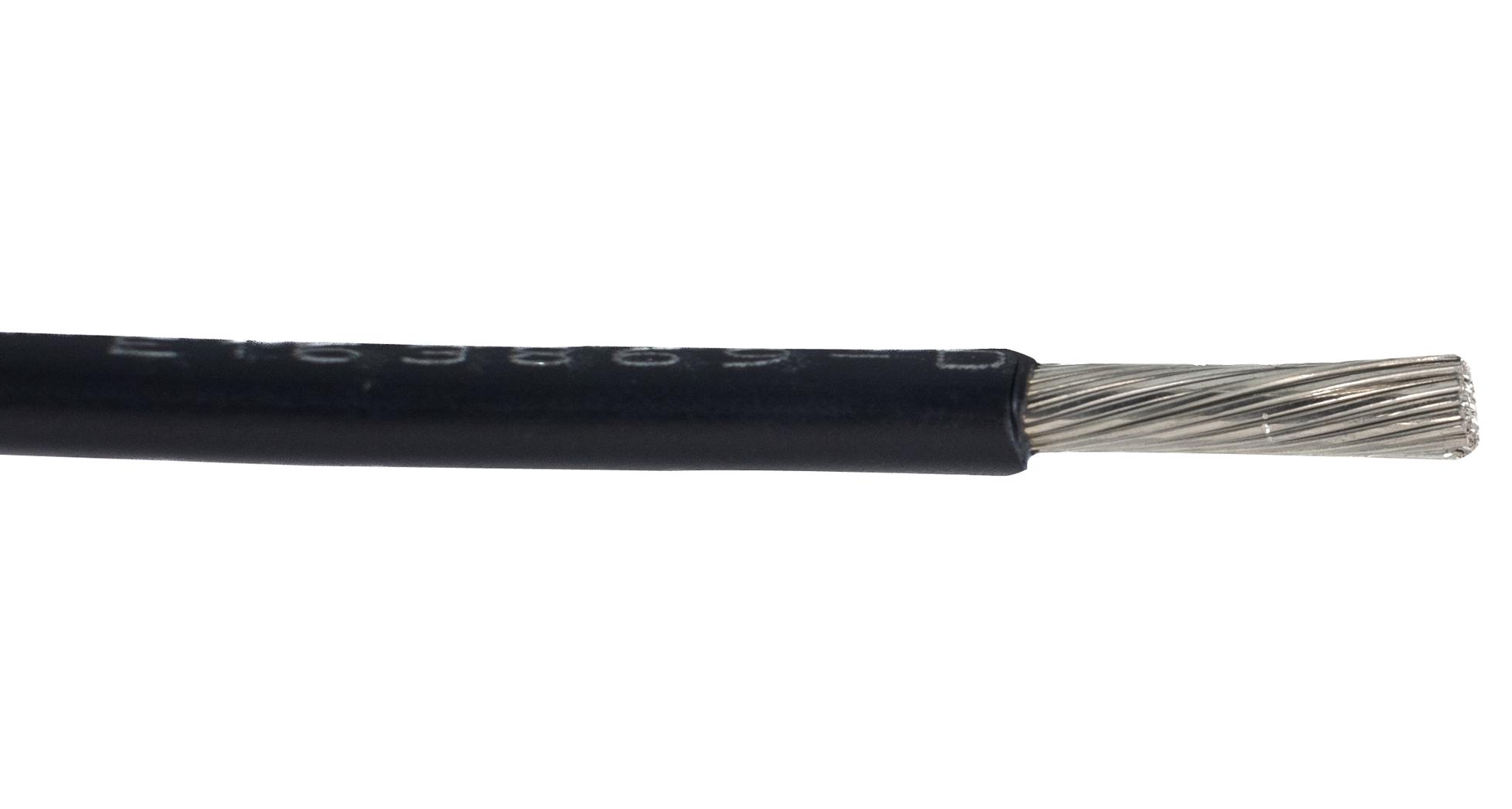

ALPHA WIRE 67010BK321 Electrical Cable
Alpha Wire's EcoWire 1.0MM2 is a flexible, high-performance electrical cable designed for industrial wiring applications. It features tinned copper conductors with a 4X 1 hookup and modified polyphenylene ether insulation, rated for 105°C and 600V. Certified for UL AWM 11028 and CSA AWM style 11028 standards, it complies with RoHS2 and REACH regulations, ensuring environmentally friendly materials. The cable offers excellent electrical and mechanical properties, including a bend radius of 10 times the cable diameter, making it suitable for demanding industrial environments. Available in multiple colors, it is wound on spools in various lengths for versatile installation needs.
ALPHA WIRE 67010BK321 Electrical Cable Specifications:
- Conductor Material: Tinned Copper, 56/0.16 mm
- Insulation Material: Modified Polyphenylene Ether
- Conductor Diameter: 4.00 mm
- Insulation Thickness: 0.280 mm
- Temperature Rating: -40°C to +105°C
- Voltage Rating: 600 V
- Bend Radius: 10x cable diameter
- Inductance: 0.12 µH/m (nominal)
- Conductor Resistance: 20 Ω/km at 20°C
- Colors: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet, Green/Yellow
- Package Lengths: 500 M, 100 M, 50 M
- Certification: UL AWM 11028, CSA AWM 11028, IEC 60332-2 Flame Behavior, CE Low Voltage
- RoHS2 and REACH compliant, free of hazardous substances
- Operates in industrial wiring, automation, control systems, and electronic devices
Buy the AlphaWire 67010 U–Reliable Electrical Cable for Industrial Applications
Purchase the AlphaWire electrical cable 67010 online today to benefit from high-quality conductors rated for 105°C and 600V. This versatile, UL and CSA certified cable features tinned copper conductors, environmentally friendly materials, and a durable insulation system suitable for demanding industrial environments. Available in multiple lengths and colors, it offers flexibility for various wiring applications. Invest in a reliable, compliant electrical solution that meets RoHS2 and REACH standards, ensuring safety and performance in your automation or control projects.
Order your AlphaWire Series 67010 high-performance electrical cable today and ensure your industrial wiring projects are reliable and compliant with safety standards.
