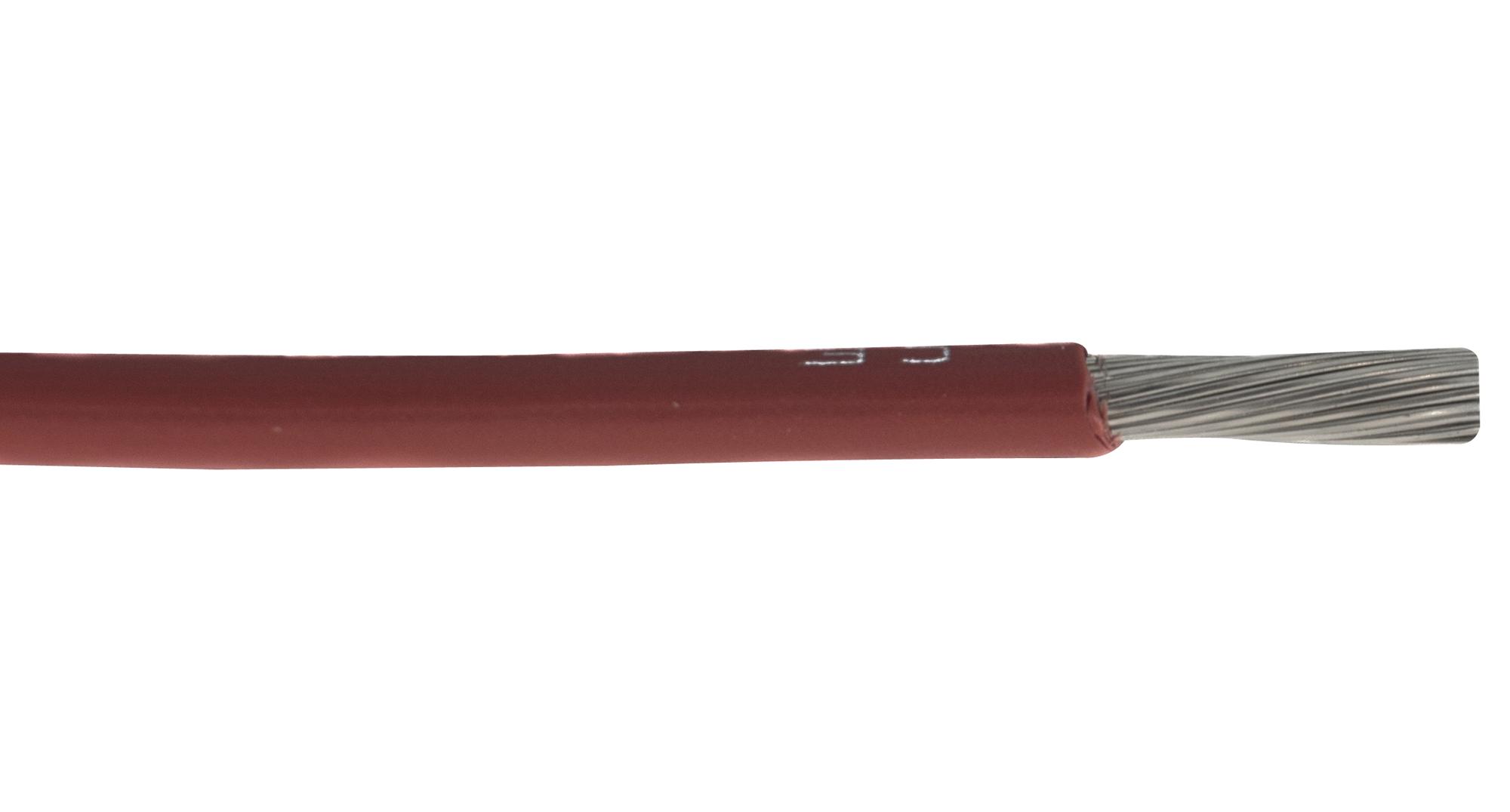

ALPHA WIRE 67010BR321 Electrical Cable
The AlphaWire ECOWIRE 1.0MM2 cable offers reliable, halogen-free construction with a tinned copper conductor and a modified polyphenylene insulation wall. Rated for 105°C and 600V, it complies with UL, CSA, IEC flame behavior standards, and European RoHS2 and REACH regulations. Designed for versatile electrical applications, this cable features multiple color options, a bend radius of 10 times the cable diameter, and flexible continuous lengths of up to 500 meters, ensuring durability and safety in commercial and industrial environments.
ALPHA WIRE 67010BR321 Electrical Cable Specifications:
- Conductor: Tinned Copper, 1.00 mm (56/0.16), CSA and UL style 11028, rated for 105°C and 600V
- Insulation: Modified Polyphenylene, 0.280 mm wall thickness, halogen-free, complies with IEC 60332-2 flame test
- Temperature Range: -40°C to 105°C
- Bend Radius: 10x cable diameter
- Voltage Rating: 600 V
- Conductance: 20 Q/Km at 20°C
- Inductance: 0.12 μH/m (nominal)
- Environmental Compliance: RoHS 2, REACH, CE Low Voltage Directive 2014/35/EU
- Available in multiple colors including black, red, white, blue, green, brown, yellow, orange, violet, and green/yellow
- Continuous lengths: Up to 500 meters
Buy the AlphaWire Series ECOWIRE Electrical Cable: 67010
Purchase the AlphaWire ECOWIRE 1.0MM2 electrical cable online today to ensure reliable power transmission with halogen-free, flame-retardant insulation, and high-temperature tolerance. Ideal for industrial and commercial wiring, this cable meets UL, CSA, RoHS, and REACH standards, offering flexibility with multiple colors and lengths up to 500 meters. Its durable design ensures safe, long-lasting performance in a variety of electrical applications, making it a top choice for professionals seeking quality and compliance in wiring solutions.
Get AlphaWire 67010 today—built for reliable connections, compliance, and versatile electrical installations.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67010BR321?
You can click on the BUY or RFQ button to purchase 67010BR321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67010BR321?
You can download the 67010BR321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67010BR321?
ALPHA WIRE
