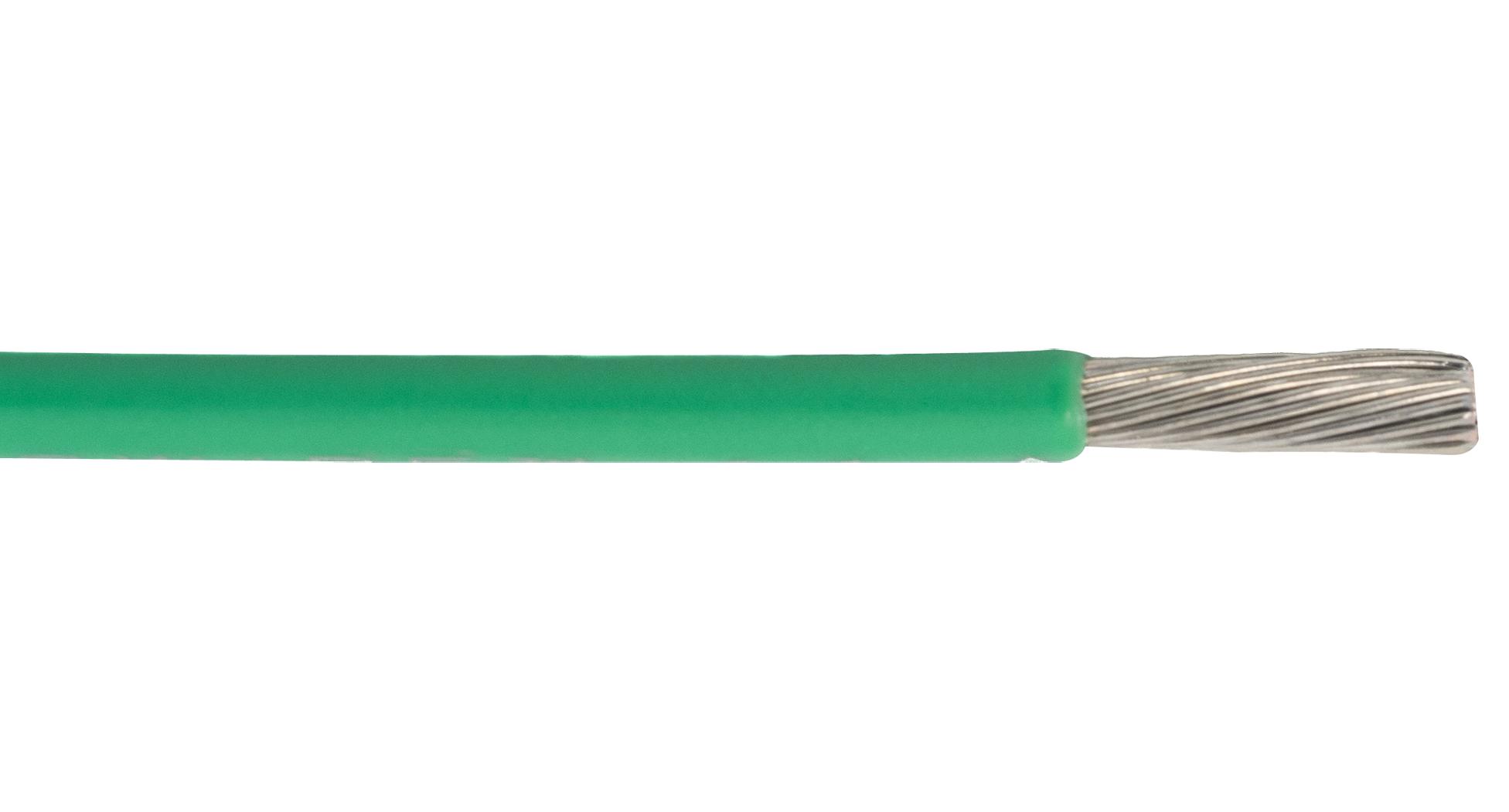

ALPHA WIRE 67025GR033 Industrial Electrical Cable
The product is a flexible, flame-retardant electrical cable made of tinned copper conductors with modified polyphenylene insulation, suitable for industrial wiring applications. It complies with UL, CSA, and CE standards, rated for 105°C and 600V, offering durability and safety in various environments. The cable is available in multiple colors including black, red, white, blue, green, and yellow, and is supplied in continuous lengths of 50m, 100m, or 500m coils. Its small bend radius of 10 times the cable diameter makes installation easier in tight spaces, ensuring reliable electrical performance and compliance with RoHS2 and REACH directives.
ALPHA WIRE 67025GR033 Industrial Electrical Cable Specifications:
- Conductor Material: Tinned Copper
- Insulation Material: Modified Polyphenylene
- Conductor Diameter: 0.25 mm (32/0.10)
- Wall Thickness: 0.260 mm
- Temperature Rating: -40 to 105°C
- Voltage Rating: 600 V
- Bend Radius: 10x Cable Diameter
- DCR: 80 A/Km @20°C
- Colors Available: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet, Green/Yellow
- Packaging: 50 M, 100 M, 500 M continuous lengths
- Compliance: UL AWM 11028, CSA AWM 11028, CE Low Voltage Directive, RoHS2, REACH
- Flame Behavior: IEC 60332-2
- Maximum Operating Temperature: 105°C
- Insulation Thickness: 0.260 mm
- Cable Diameter: Approximate 4.64 mm
- Certifications: UL, CSA, CE, RoHS, REACH
Buy the AlphaWire 67025 U–Reliable Industrial Electrical Cable for Robust Wiring
Purchase Alpha Wire 67025 industrial electrical cable online today to ensure safe, durable, and compliant wiring in industrial environments. Crafted with tinned copper conductors and modified polyphenylene insulation, this cable offers excellent electrical performance, flexibility, and resistance to flames. Available in multiple colors and lengths, it meets UL, CSA, CE, RoHS2, and REACH standards for maximum safety and environmental compliance. Ideal for professional installations requiring reliable power transmission and easy handling in tight spaces. Get yours now for high-quality industrial wiring solutions.
Buy Alpha Wire 67025 now and experience unmatched reliability and performance in industrial wiring applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67025GR033?
You can click on the BUY or RFQ button to purchase 67025GR033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67025GR033?
You can download the 67025GR033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67025GR033?
ALPHA WIRE
