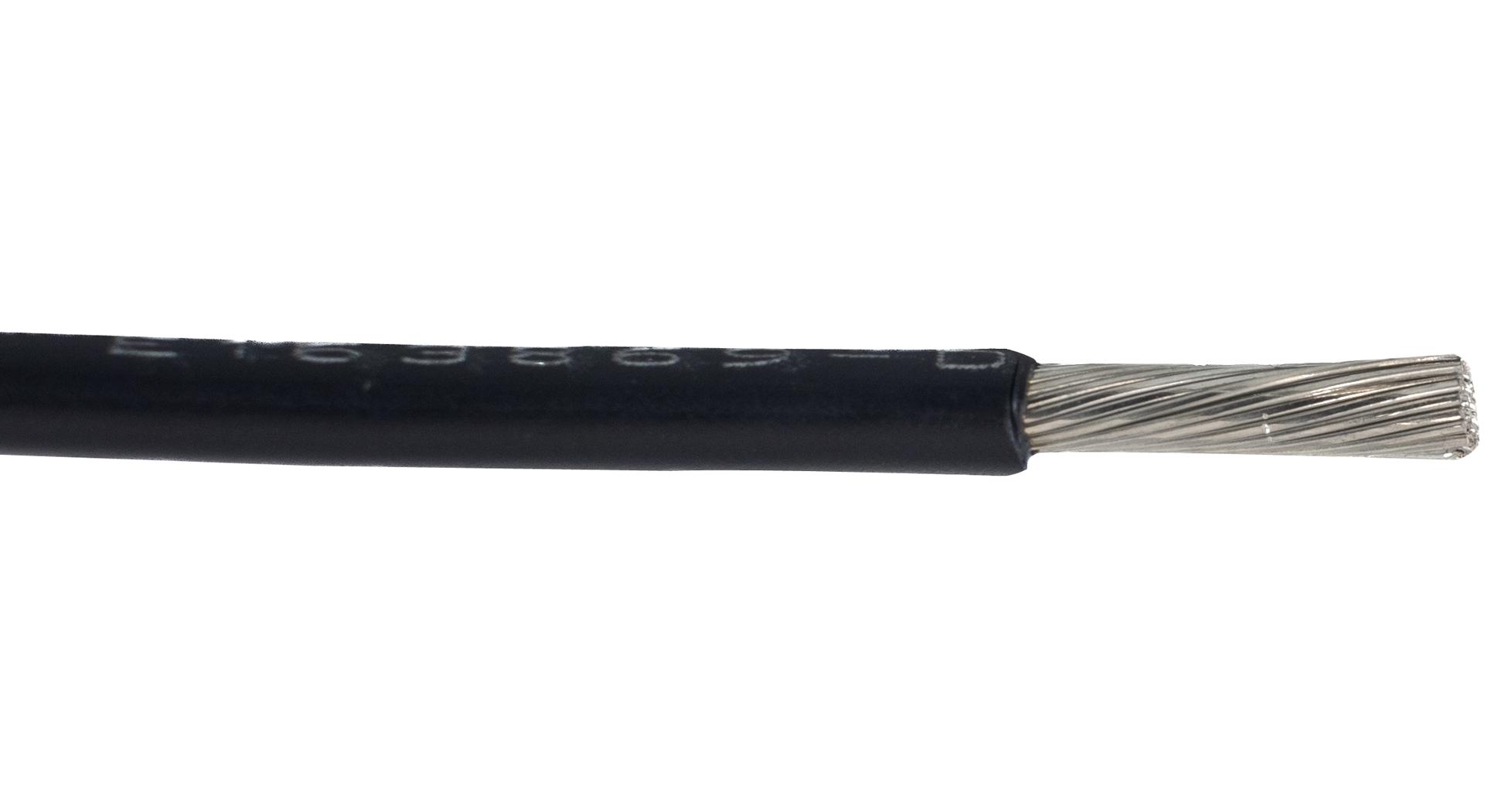

ALPHA WIRE 67050BK033 Electrical Control Wire
Alpha Wire's EcoWire part number 67050BK033 is a flexible, high-performance electrical cable suitable for control panels, instrumentation, and wiring harnesses. Made with tinned copper conductors and modified polyphenylene insulation, it offers excellent fire resistance, electrical stability, and environmental compliance. It features a temperature range of -40°C to +105°C, a voltage rating of 600V, and a bend radius of 10 times the cable diameter. Suitable for European and North American markets, this wire adheres to UL, CSA, CE, and RoHS standards, ensuring safety and environmental friendliness.
ALPHA WIRE 67050BK033 Electrical Control Wire Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 0.50 mm (28/0.16)
- Insulation Thickness: 0.260 mm
- Temperature Range: -40°C to +105°C
- Voltage Rating: 600 V
- Flame Behavior: IEC 60332-2
- Bend Radius: 10X Cable Diameter
- DCR: 40 Q/Km @20°C
- Packaging: 500 M spool, 6.5 x 4 x 2.5 inches
- Certifications: UL AWM 11028, CSA AWM, CE, RoHS, REACH
Buy the Buy AlphaWire EcoWire Part Number 67050BK033 Online
Order AlphaWire EcoWire part number 67050BK033 online today to ensure high-quality, environmentally compliant wiring for control panels, instrumentation, and industrial applications. This flexible, UL and CSA approved cable features tinned copper conductors, rated for 600V, with a temperature range from -40°C to +105°C. Its fire-resistant IEC 60332-2 flame behavior and adherence to RoHS and REACH standards make it ideal for safe, long-lasting electrical connections in European and North American markets. Streamline your wiring needs now!
Buy AlphaWire EcoWire 67050BK033 now and experience reliable, flame-retardant insulation suitable for control panels and instrumentation wiring.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67050BK033?
You can click on the BUY or RFQ button to purchase 67050BK033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67050BK033?
You can download the 67050BK033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67050BK033?
ALPHA WIRE
