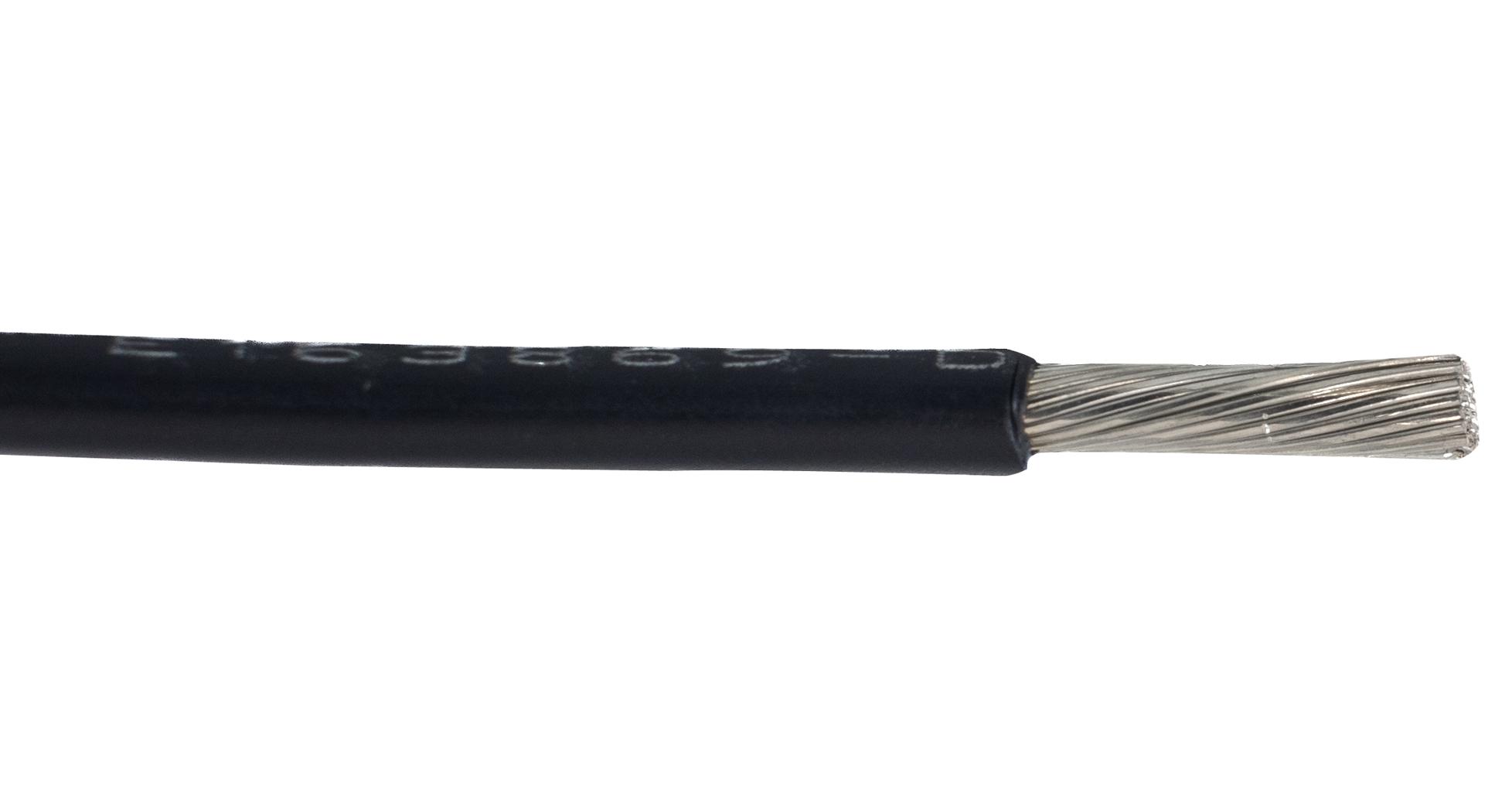

ALPHA WIRE 67075BK321 Electrical Cable
The product is a multi-colored, flexible electrical cable designed for various wiring applications. Constructed with 0.75 mm² tinned copper conductors and 0.260 mm wall insulation made from modified polyphenylene ether, this cable features UL AWM 11028 and CSA certifications for safe use up to 105°C and 600V. It complies with low voltage, flame retardant, and environmental standards including RoHS2 and REACH. Available in multiple colors, it can be supplied in continuous lengths of 50, 100, or 500 meters, suitable for industrial or appliance wiring, ensuring durability and compliance across diverse environments.
ALPHA WIRE 67075BK321 Electrical Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 0.75 mm²
- Insulation Wall Thickness: 0.260 mm
- Voltage Rating: 600 V
- Temperature Range: -40°C to 105°C
- Flame Behavior: IEC 60332-2
- Certification: UL AWM 11028, CSA AWM, VW-1, FT1
- Compliance: RoHS2, REACH
- Color Options: BLACK, RED, WHITE, BLUE, GREEN, BROWN, YELLOW, ORANGE, VIOLET, GREEN/YELLOW
- Packaging Lengths: 50M, 100M, 500M
- Bend Radius: 10X Cable Diameter
- Inductance: 0.12 µH/m
- Conductor Resistance: 27 Ω/km at 20°C
Buy the AlphaWire Series EcoWire 0.75MM2: 67075BK321
Purchase the high-quality AlphaWire electrical cable series EcoWire 0.75MM2 online today. This versatile cable features tinned copper conductors, 0.260 mm insulation, and is rated for 600V and 105°C. Suitable for industrial, control, and appliance wiring, it meets UL, CSA, RoHS2, and REACH standards for safety and environmental compliance. Available in multiple colors and lengths, this durable cable provides excellent flexibility and long-term reliability for your electrical projects. Buy now to ensure premium performance and compliance.
Order your AlphaWire Series EcoWire 0.75MM2 today and ensure reliable, compliant wiring for your industrial or electronic projects.
