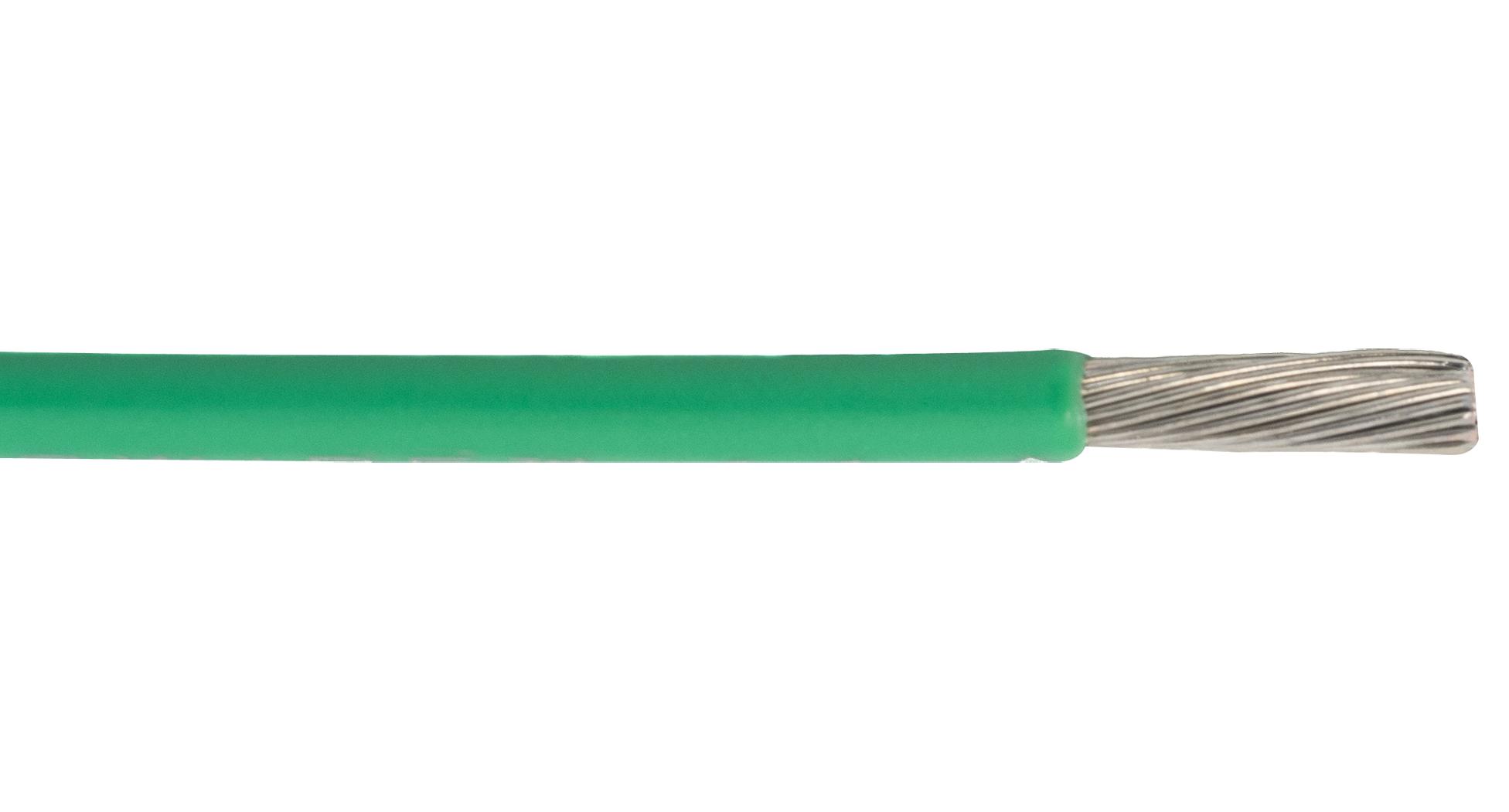

ALPHA WIRE 67075GR033 Electrical Wire
This high-quality electrical wire features a tinned copper conductor with a 0.75 mm diameter and a modified polyphenyl insulation wall, designed for versatile wiring applications. Rated at 105°C and 600V, it complies with UL AWM 11028 and CSA standards, and is flame-retardant according to IEC 60332-2. The wire is available in various colors such as black, red, white, and blue, making it suitable for commercial and industrial electrical systems. Its durable construction ensures reliable electrical performance and safety in demanding environments.
ALPHA WIRE 67075GR033 Electrical Wire Specifications:
- Conductor Diameter: 0.75 mm (42/0.16) tinned copper
- Insulation Wall Thickness: 0.260 mm
- Temperature Rating: 105°C
- Voltage Rating: 600 V
- Flame Retardant: IEC 60332-2
- Standards: UL AWM 11028, CSA 11028, VW-1
- Materials: Tinned copper conductor, modified polyphenyl insulation
- Wire Lengths: 500 M, 100 M, 50 M continuous length
- Color Options: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet, Green/Yellow
- Operating Temperature Range: -40°C to +105°C
- DCR: 27 Ω/km @20°C
- Bend Radius: 10X cable diameter
Buy the Alpha Wire Series EcoWire 0.75mm: 67075GR033
Enhance your electrical installations with Alpha Wire's 0.75mm flexible wiring, rated at 105°C and 600V, designed for durability and safety in demanding environments. This high-quality wire features tinned copper conductors with durable polyphenyl insulation, meeting UL and CSA standards. Available in multiple colors, it ensures easy identification. Ideal for commercial and industrial applications, its flame-retardant properties and wide temperature range make it a dependable choice. Purchase online today for fast delivery and reliable performance in all wiring projects.
Buy Alpha Wire 67075GR033 now and experience unmatched reliability and performance with versatile, flame-retardant electrical wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67075GR033?
You can click on the BUY or RFQ button to purchase 67075GR033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67075GR033?
You can download the 67075GR033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67075GR033?
ALPHA WIRE
