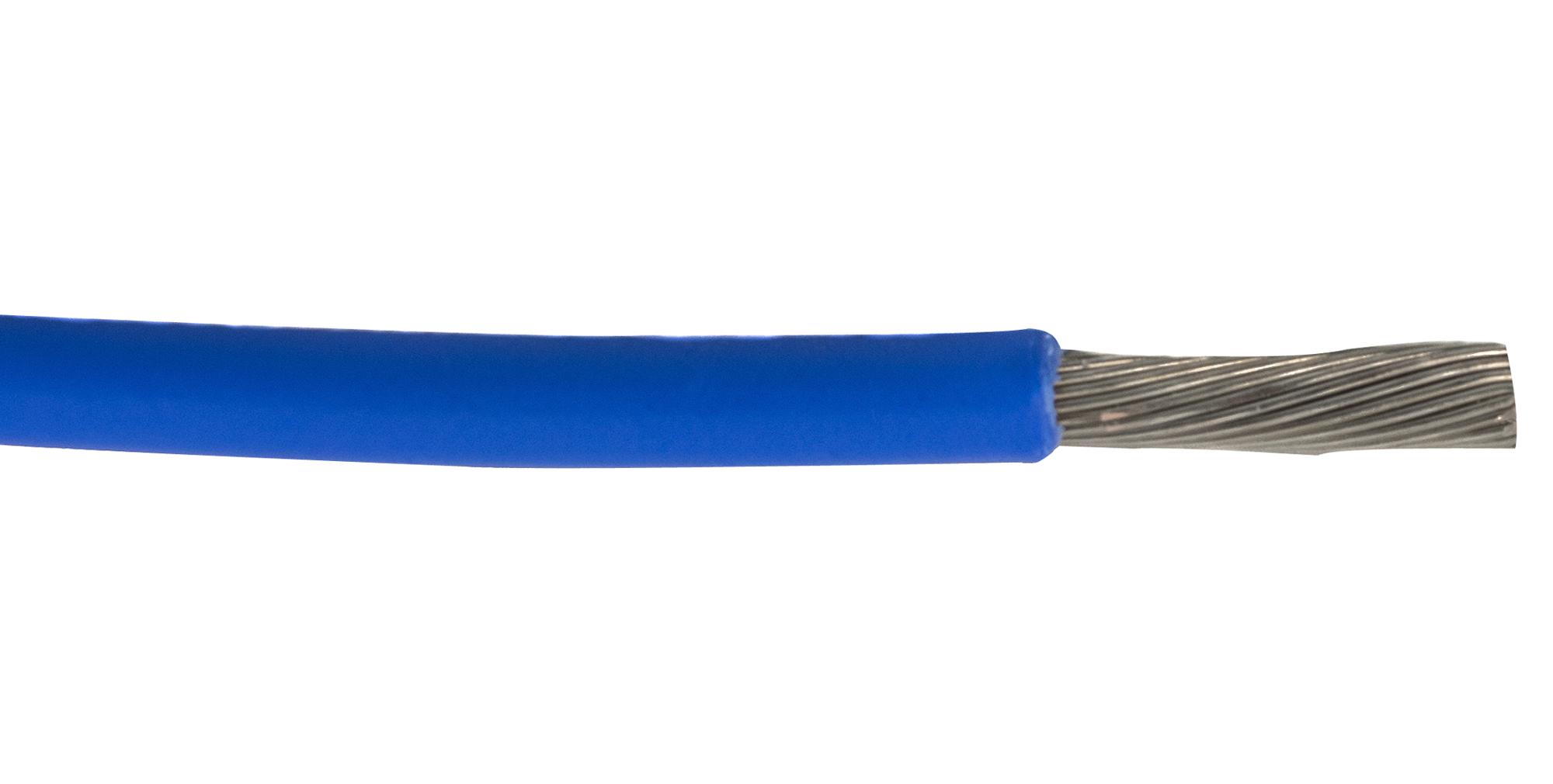

ALPHA WIRE 67150BL321 Insulated Multi-Conductor Cable
The product is a multi-conductor insulated cable featuring tinned copper conductors with a diameter of 1.50 mm (84/0.16) and modified polyphenylene ether insulation. Designed for electrical applications, it complies with industry standards such as UL AWM 11028, CSA AWM, and IEC 60332-2 flame behavior. It operates within a temperature range of -40°C to +105°C, with a voltage rating of 600V. The cable is available in various colors and spool sizes, ideal for durable, flame-retardant wiring in industrial environments.
ALPHA WIRE 67150BL321 Insulated Multi-Conductor Cable Specifications:
- Conductor Material: Tinned Copper with diameter of 1.50 mm (84/0.16)
- Insulation Material: Modified Polyphenylene Ether, 0.280 mm wall
- Temperature Range: -40°C to +105°C
- Voltage Rating: 600V
- Flame Resistance: IEC 60332-2 compliant
- Conductive Resistance: 13.7 QIKm @20°C, Nominal
- Inductance: 0.44 μH/m, Nominal
- Bend Radius: 10X Cable Diameter
- Packaging Lengths: 500 M, 100 M, 50 M spools
- Colors: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet, Green/Yellow
Buy the AlphaWire 67150 Reliable Insulated Wiring for Industrial Applications
Order AlphaWire 67150 online today—designed for professional wiring projects requiring flame-retardant, high-quality insulation. This multi-conductor cable features tinned copper conductors with a diameter of 1.50 mm, providing excellent conductivity and flexibility. Rated at 600V, it capably withstands temperature ranges from -40°C to +105°C, ensuring safe performance in demanding environments. Available in multiple colors and various spool sizes, it's perfect for industrial, electrical, and control wiring applications. Purchase now for reliable, long-lasting electrical wiring solutions.
Get AlphaWire 67150 today—built for reliable insulation and durable industrial wiring performance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67150BL321?
You can click on the BUY or RFQ button to purchase 67150BL321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67150BL321?
You can download the 67150BL321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67150BL321?
ALPHA WIRE
