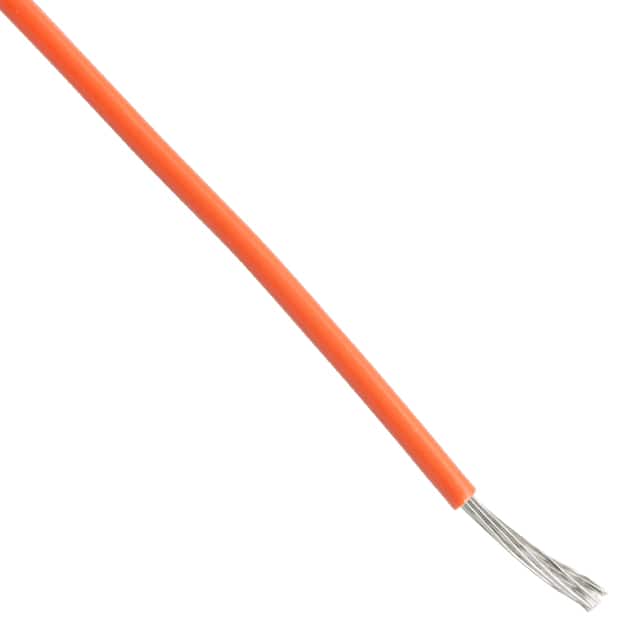

ALPHA WIRE 6716OR001 Electrical Cable
The alpha wire part number 6716OR001 is a halogen-free, flame-retardant cable designed for electrical and electronic industry applications. It features a flexible, insulated conductor with a polyphenylene sheath, rated for 600V and temperatures from -40°C to 105°C. Suitable for environments requiring compliance with UL 11028, CSA FT1, and RoHS directives, it offers high durability and electrical performance. Available in multiple colors including white, black, red, green, yellow, blue, brown, orange, slate, violet, and more, this cable ensures safe and reliable electrical connections in industrial settings.
ALPHA WIRE 6716OR001 Electrical Cable Specifications:
- Voltage Rating: 600 V
- Temperature Range: -40°C to 105°C
- Conductor: 16 AWG, 26/30 TC
- Insulation: Modified Polyphenylene, 0.081+/- 0.002 inches
- Flame Rating: UL 11028 105°C / 600 V, CSA FT1 105°C / 600 V, VW-1
- Outer Diameter: varies with color and cut length
- Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 20.4 Lbs
- Electrical Inductance: 0.03 wH/ft
- Conductor DCR: 4.4 Q/1000ft @20°C
- Certifications: UL, CSA, RoHS, IEC 60332-2 Flame Behavior
- Environmental Compliance: RoHS 2 and REACH
- Available Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet, Green/Yellow, Dark Blue
- Spool Dimensions: Options include 25000 DR, 5000 FT, 1000 FT, 100 FT
Buy the AlphaWire 6716OR001 – Reliable Electrical Cable for Industrial Applications
Purchase the AlphaWire 6716OR001 online today and enjoy reliable electrical performance in your industrial and electronic projects. This flame-retardant, halogen-free cable rated for 600V and operating from -40°C to 105°C offers high flexibility, durability, and compliance with UL, CSA, RoHS, and IEC standards. It is available in multiple colors, suitable for wiring, control panels, and electronic devices. Buy online to get fast shipping, trusted quality, and technical support for your electrical installation needs.
Order your AlphaWire 6716OR001 today and ensure your electrical projects benefit from dependable, flame-retardant cable suited for industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6716OR001?
You can click on the BUY or RFQ button to purchase 6716OR001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6716OR001?
You can download the 6716OR001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6716OR001?
ALPHA WIRE
