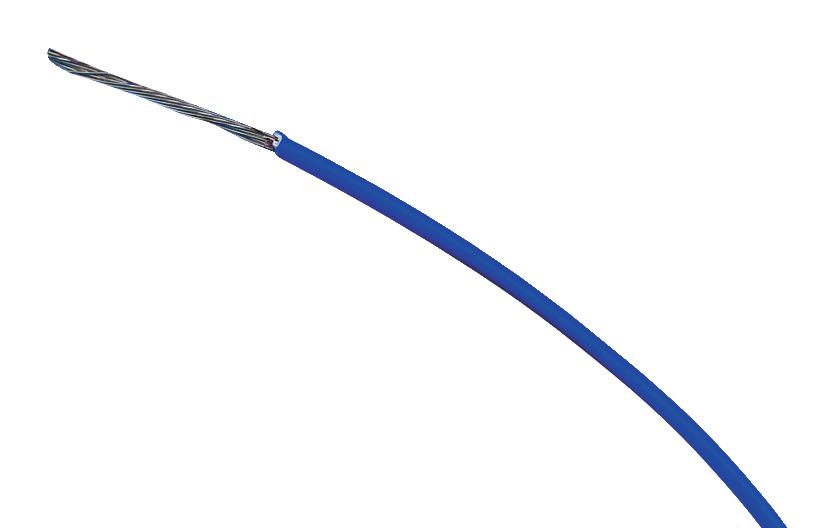

ALPHA WIRE 6718BL001 Electrical Wire
AlphaWire part number 6718 features flexible, halogen-free, and flame-retardant electrical wire suitable for industrial and electronic applications. It complies with UL, CSA, and European standards, ensuring safety and environmental compliance. The cable has a voltage rating of 600 V, operates from -40°C to 105°C, and exhibits minimal inductance and conductor resistance. Offered in various colors, it includes specifications like dimensions, insulation material, and mechanical properties, making it ideal for wiring, control panels, and electronic equipment requiring durable, high-quality cabling.
ALPHA WIRE 6718BL001 Electrical Wire Specifications:
- Conductor: 12 AWG (65/30) TC
- Insulation: Modified Polyphenylene, 0.117 inches nominal thickness
- Voltage Rating: 600 V
- Temperature Range: -40°C to 105°C
- Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 51 Lbs
- Inductance: 0.03 wH/ft, Nominal
- Conductor DCR: 1.75 Q/1000 ft @20°C, Nominal
- Flame Behavior: IEC 60332-2, UL VW-1
- Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet, Green/Yellow, Dark Blue
- Physical Dimensions: 1000 ft spool 9 x 4.5 x 3.5 inches; 100 ft spool 6.5 x 3 x 3.25 inches
Buy the AlphaWire Series 600V Halogen-Free Electrical Wire: Part Number 6718BL001
Purchase AlphaWire 6718 online now to ensure your electrical installations meet the highest safety and quality standards. This halogen-free, flame-retardant cable is rated 600V and operates from -40°C to 105°C, making it suitable for industrial, control, and electronic applications. Available in multiple colors, it offers excellent mechanical properties, low inductance, and minimal conductor resistance. Its durable insulation and compliance with UL, CSA, and EU standards guarantee safety, performance, and environmental compliance for reliable wiring systems. Buy today for long-lasting, high-quality connections.
Get AlphaWire 6718 today—built for precision, safety, and long-lasting durability in industrial wiring and electronic systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6718BL001?
You can click on the BUY or RFQ button to purchase 6718BL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6718BL001?
You can download the 6718BL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6718BL001?
ALPHA WIRE
