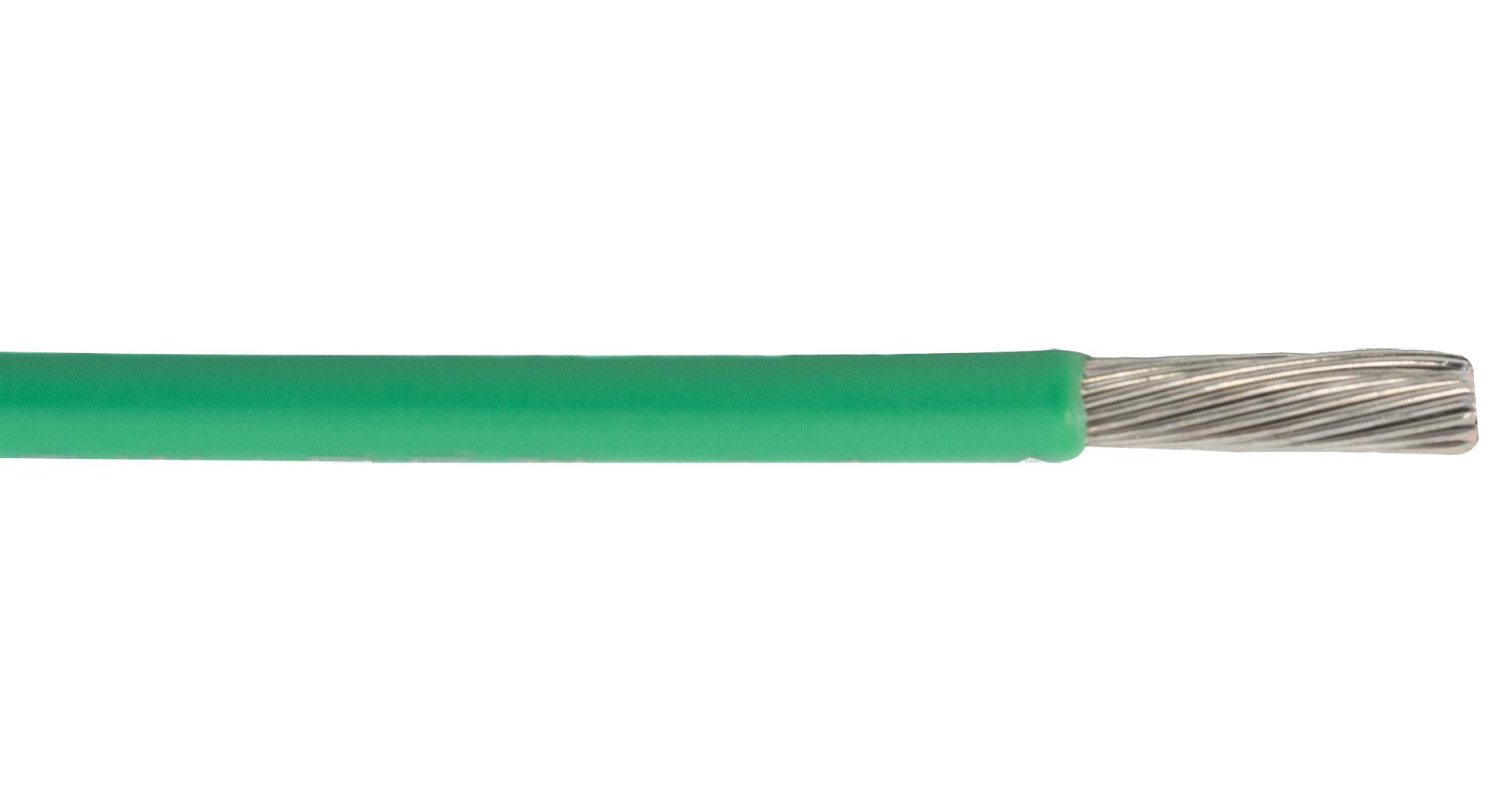

ALPHA WIRE 67250GR321 Hook Up Wire
The ALPHA WIRE 67250 GR321 is a multi-conductor hook-up wire designed for a wide range of applications requiring flexibility and durability. Constructed with a tinned copper conductor for enhanced conductivity and a modified polyphenylene ether insulation for excellent dielectric strength and heat resistance, this wire is suitable for use in appliances, electronics, and industrial equipment. It meets UL AWM 11028 standards and is RoHS compliant, ensuring environmental responsibility. Available in various colors, this wire offers versatility for different wiring configurations and identification needs. Its robust construction and reliable performance make it a preferred choice for demanding applications.
ALPHA WIRE 67250GR321 Hook Up Wire Specifications:
- Construction: 1 X 1 HOOKUP
- Conductor Material: Tinned Copper
- Conductor Size: 2.50 (140/0.16) mm2
- Insulation Material: Modified Polyphenylene Ether
- Insulation Wall Thickness: 0.310 mm (Nominal)
- Overall Diameter: 2.71+/- 0.05 mm
- UL Style: AWM/STYLE 11028
- UL Voltage Rating: 105°C / 600 VRMS
- UL Flammability Rating: VW-1
- CSA Rating: C(RU) AWM I A/B FT1
- CSA Voltage Rating: 105°C / 600 VRMS
- Halogen-Free: Yes
- Flame Behavior: IEC 60332-2
- CE Compliance: EU Low Voltage Directive 2014/35/EU
- Temperature Range: -40 to 105°C
- Bend Radius: 10X Cable Diameter
- Voltage Rating: 600 VRMS
- Inductance: 0.1 μH/m (Nominal)
- Conductor DCR: 8.2 Ω/Km @20°C (Nominal)
- Packaging - 500M: 12 x 4.5 x 3.5 inches (Continuous length)
- Packaging - 100M: 6.5 x 2 x 1.9 inches (Continuous length)
- Packaging - 50M: 6.5 x 2 x 1.9 inches (Continuous length)
- Colors Available: BLACK, RED, WHITE, BLUE, GREEN, BROWN, YELLOW, ORANGE, VIOLET, GREEN/YELLOW
Buy the 67250 GR321 ALPHA WIRE Hook Up Wire | myMectronic
Purchase ALPHA WIRE 67250 GR321 hook-up wire securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 67250GR321?
You can click on the BUY or RFQ button to purchase 67250GR321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67250GR321?
You can download the 67250GR321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67250GR321?
ALPHA WIRE
