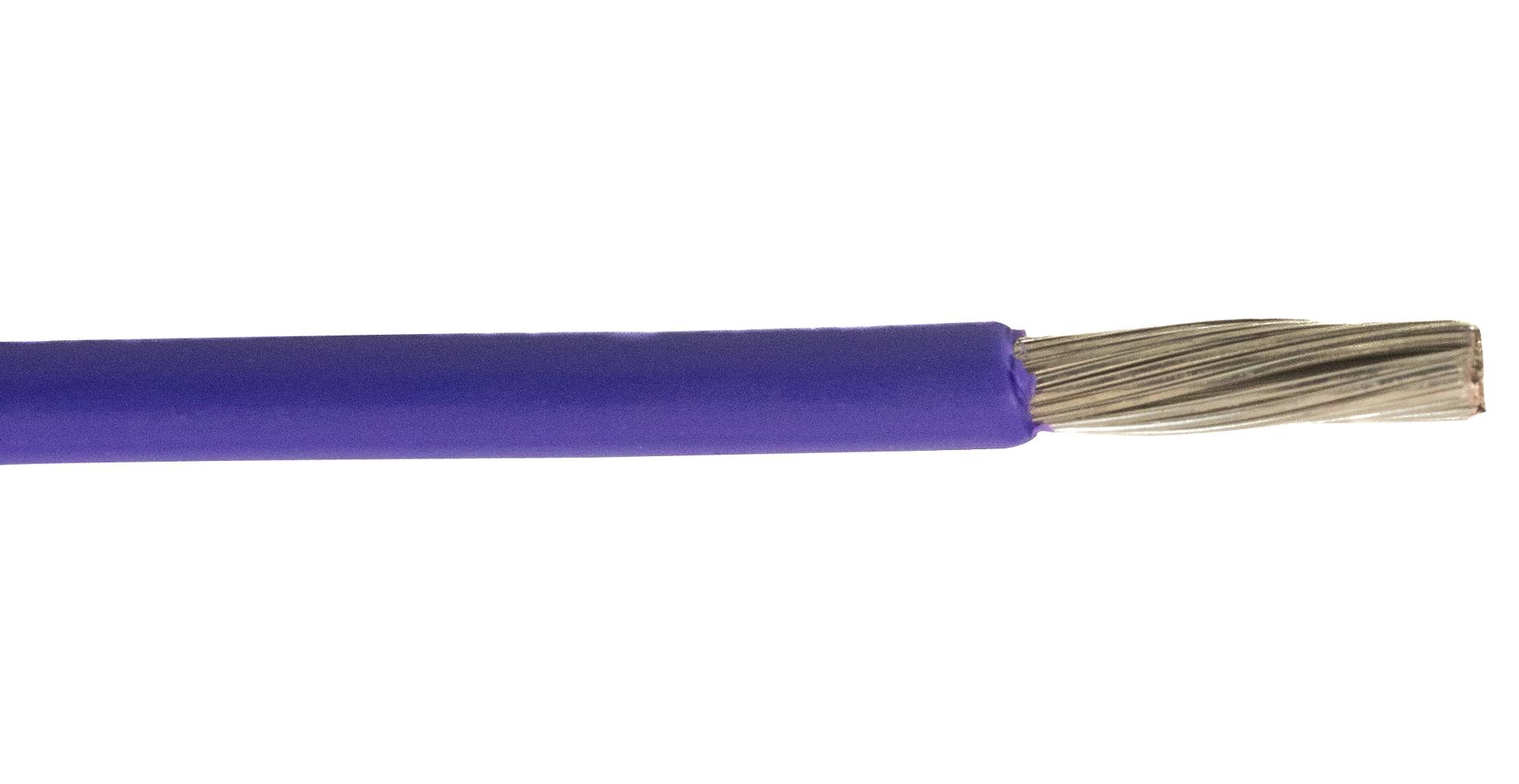

ALPHA WIRE 67250VI321 Hook Up Wire
The Alpha Wire 67250 VI321 is a multi-conductor hook-up wire designed for reliable performance in a variety of applications. It features a tinned copper conductor for excellent conductivity and a modified polyphenylene ether insulation that provides robust protection and flexibility. This wire is AWM 11028 rated, suitable for 105°C and 600V applications, and is RoHS compliant, making it an environmentally responsible choice. It is commonly used in industrial machinery, control panels, and other applications requiring durable and reliable wire connections.
ALPHA WIRE 67250VI321 Hook Up Wire Specifications:
- Construction: 1 X 1 HOOKUP
- Conductor Material: Tinned Copper
- Conductor Size: 2.50 (140/0.16) mm2
- Insulation Material: Modified Polyphenylene Ether
- Insulation Wall Thickness: 0.310 mm (Nominal)
- Overall Diameter: 2.71+/- 0.05 mm
- Print: ALPHA WIRE-* P/N 67250 ECOWIRE TM 2.5MM2 E163869 RU AWM 11028 105C 600V VW-1 --- CRU AWM I A/B 105C 600V FT1 CE ROHS * = Factory Code
- Available Colors: BLACK, RED, WHITE, BLUE, GREEN, BROWN, YELLOW, ORANGE, VIOLET, GREEN/YELLOW
- UL Rating: AWM/STYLE 11028, 105°C / 600 VRMS, VW-1
- CSA Rating: C(RU) AWM I A/B FT1, 105°C / 600 VRMS
- Halogen-Free: Yes
- Flame Behavior: IEC 60332-2
- Temperature Range: -40 to 105°C
- Bend Radius: 10X Cable Diameter
- Voltage Rating: 600 VRMS
- Inductance: 0.1 μH/m (Nominal)
- Conductor DCR: 8.2 Ω/Km @20°C (Nominal)
- Packaging - 500M: 12 x 4.5 x 3.5 inches (Continuous length)
- Packaging - 100M: 6.5 x 2 x 1.9 inches (Continuous length)
- Packaging - 50M: 6.5 x 2 x 1.9 inches (Continuous length)
