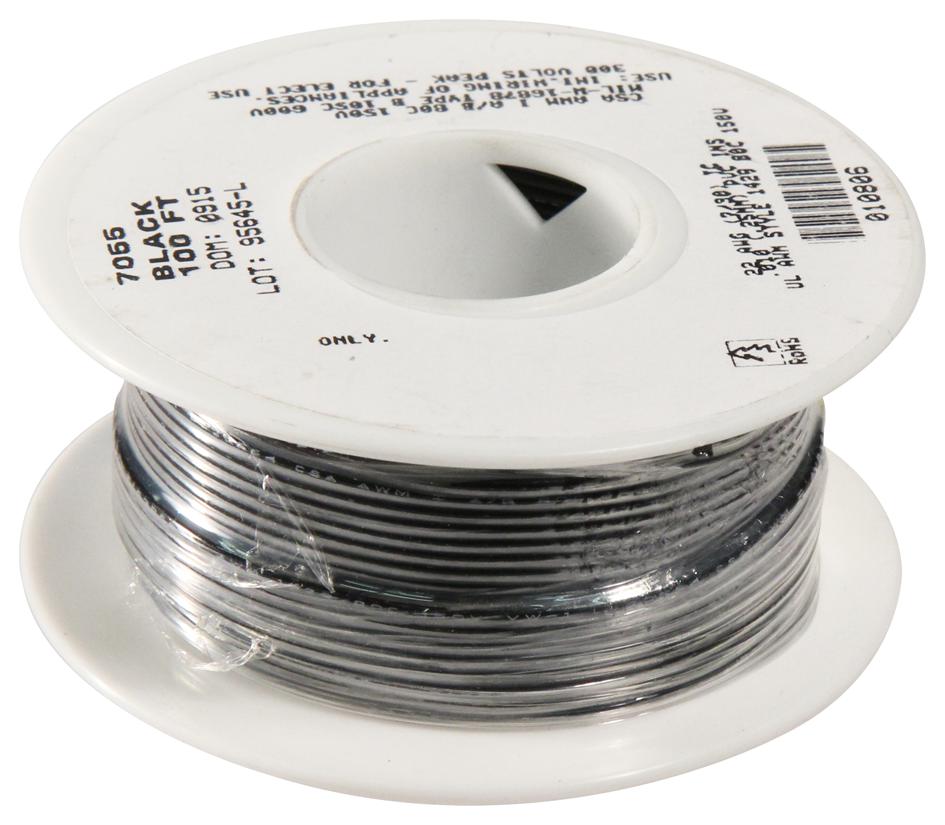

ALPHA WIRE 7055BK005 Hookup Wire
The 7055 BK005 is a 100-foot hookup wire with stranded tinned copper conductor and irradiated PVC insulation. Suitable for control cabinets, machine tools, high-temp ovens, and off-road equipment, it resists wear, abrasion, cuts, soldering heat, oils, solvents, and chemicals. Designed for durability and easy handling, it ensures reliable connections in high-density wiring. With a maximum pull tension of 5.5 pounds and a nominal inductance of 0.05 µH per foot, this MIL-W-16878E Type-B wire supports demanding industrial applications with excellent performance and safety standards.
ALPHA WIRE 7055BK005 Hookup Wire Specifications:
- Conductor: Stranded tinned copper
- Insulation: Irradiated PVC, 0.010 in wall thickness, 150 V rating
- Length: 100 feet
- Maximum pull tension: 5.5 pounds
- Voltage Rating: 150 V
- Inductance: 0.05 µH/ft
- Conductor Resistance: 16.2 Q/1000ft at 20°C
- Temperature Range: -55°C to +105°C
- Bend Radius: 10 times cable diameter
- Flange x Traverse x Barrel: 6.5 x 2 x 1.9 inches (continuous spool), 2.75 x 1 x 1.125 inches (discrete spool)
Buy the Alpha Wire 7055BK005 – Reliable Hookup Wire for Industrial Applications
Secure your industrial wiring needs by purchasing the Alpha Wire 7055BK005 hookup wire online today. This 100-foot spool features a stranded tinned copper conductor and irradiated PVC insulation, designed for durability in control cabinets, machine tools, and high-temperature environments. Its excellent resistance to oils, chemicals, and abrasion ensures long-lasting performance. With easy handling, stripping, and termination, this MIL-W-16878E Type-B wire provides superior reliability for demanding applications. Buy now to ensure safety and efficiency in your electrical installations.
Order your Alpha Wire Series 7055BK005 hookup wire today and give your projects the dependable quality they deserve for safe and efficient electrical connections.
Frequently Asked Questions
Where can I buy ALPHA WIRE 7055BK005?
You can click on the BUY or RFQ button to purchase 7055BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 7055BK005?
You can download the 7055BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 7055BK005?
ALPHA WIRE
